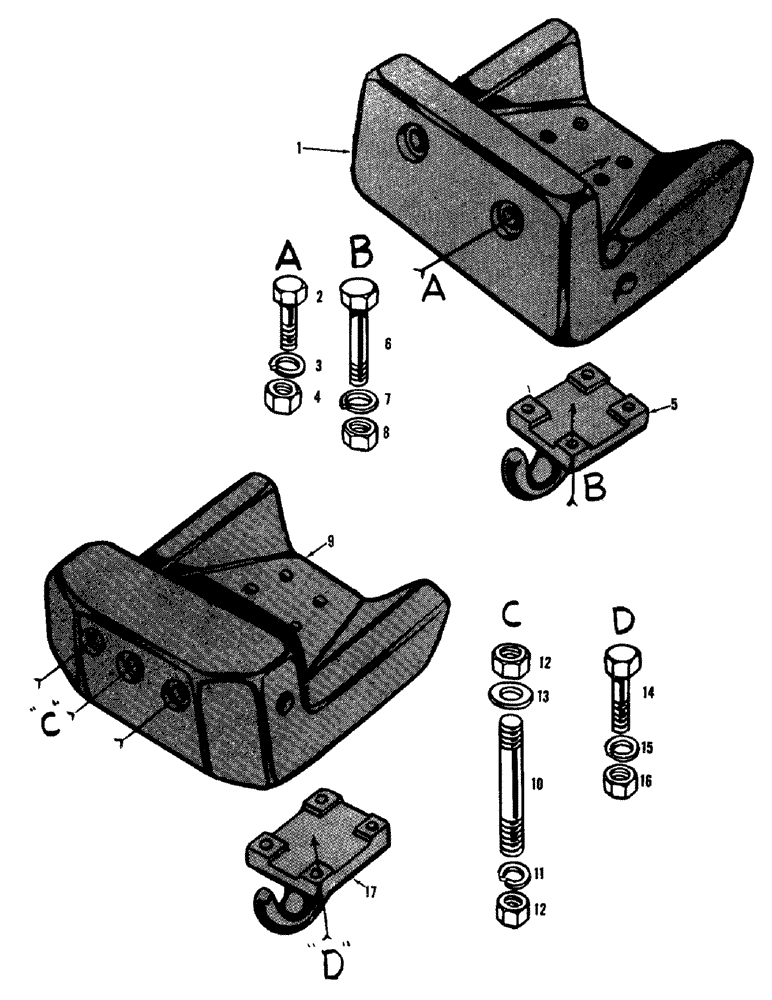

Запчасти Case 750 (092) - FRONT MOUNTED WEIGHT & MTG. PARTS (05) - UPPERSTRUCTURE CHASSIS

R4258

FRONT COUNTERWEIGHT & PULL HOOK INST. (Optional equipment)

1шт.

R4259

FRONT COUNTERWEIGHT INST. (Optional equipment)

1шт.

1

R21545

COUNTERWEIGHT

1шт.

2

14-1656

HHCS 1 - 14 NS - 3-1/2 (R21545 mtg.)

2шт.

3

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.

4

25-1116

NUT,1"-14, G5

- reg. SF hex

2шт.

5

71671

PLATE ASSY.

HOOK - pull (R4258 only)

1шт.

6

14-1264

BOLT,Hex, 3/4" - 16 x 4", Gr 5

HHCS 3/4 - 16 NF x 4 (R4259 only)

4шт.

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS 3/4 - 16 NF x 5 (R4258 only)

4шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

8

25-1112

NUT,3/4"-16, G5

- reg. SF hex

4шт.

R4235

FRONT COUNTERWEIGHT & PULL HOOK INST. (Optional equipment)

1шт.

R4236

FRONT COUNTERWEIGHT INST. (Optional equipment)

1шт.

9

R21322

COUNTERWEIGHT

1шт.

10

R11490

STUD

3шт.

11

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

3шт.

12

25-1116

NUT,1"-14, G5

- reg. SF hex

6шт.

13

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- plain

3шт.

14

14-1264

BOLT,Hex, 3/4" - 16 x 4", Gr 5

HHCS 3/4 - 16 NF x 4 (R4236 only)

4шт.

14-1280

BOLT,Hex, 3/4" - 16 x 5", Gr 5

HHCS 3/4 - 16 NF x 5 (R4235 only)

4шт.

15

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

16

25-1112

NUT,3/4"-16, G5

- reg. SF hex

4шт.

17

71671

PLATE ASSY.

HOOK - pull

1шт.
