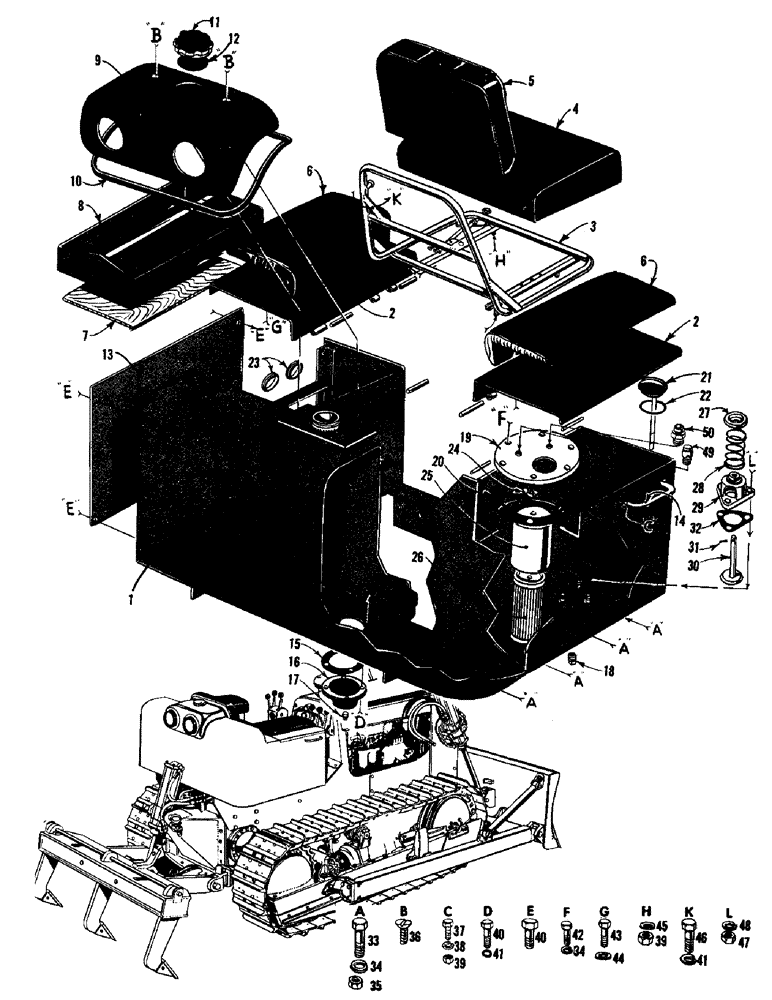

Запчасти Case 750 (088) - SEAT, TANK & MOUNTING PARTS (05) - UPPERSTRUCTURE CHASSIS

1

R19273

SEAT & TANK ASS'Y

1шт.

2

R18435

COVER

2шт.

3

R15507

X

RACK ASS'Y - seat

1шт.

4

R15484

CUSHION

- seat

1шт.

5

R15541

CUSHION - back

1шт.

6

R18424

CUSHION

- arm & hip

2шт.

7

R19355

BOARD - bottom

1шт.

8

R18452

BOX - tool

1шт.

9

R18922

HOUSING - rear light

1шт.

10

35571

CHANNEL - rubber

1шт.

11

R18545

CAP

- fuel tank

1шт.

12

R20846

GASKET - cap

1шт.

13

R19356

PLATE - cover

1шт.

14

70248

LEVER

HANDLE - grab

2шт.

15

35621

GASKET

- drain cap

1шт.

16

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

DRAIN CAP - fuel tank

1шт.

17

221-11

PLUG,Sq Hd, 1/8"-27

- ext. sq. hd. 1/8 NP

1шт.

18

221-844

PLUG,Hex Soc, 1/2"-14

- ext. sq. hd. 1/2 NP

1шт.

19

R16427

COVER - hyd. tank

1шт.

20

R14032

GASKET

1шт.

21

R18636

DIPSTICK ASS'Y

1шт.

22

O3523CK

X

SEAL - "O" ring

1шт.

23

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- rubber

2шт.

24

129-410

WING NUT,3/8"-16

NUT - wing 3/8 - 16 NC (R17507 mtg.)

1шт.

25

R17507

CAP ASS'Y - filter

1шт.

26

R13605

FILTER, ENGINE OIL

SCREEN - filter

1шт.

71358

LOCK VALVE

VALVE ASS'Y - relief

1шт.

27

35426

WASHER

1шт.

28

70615

SPRING

1шт.

29

71356

STUD

HOUSING

1шт.

30

71360

VALVE ASS'Y

1шт.

31

132-45

COTTER PIN,1/8" x 5/8"

Pin, Split (Cotter), 1/8" x 5/8"

1шт.

32

71361

GASKET

1шт.

33

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2 - 20 NF x 1-1/2 (R19273 mtg.)

8шт.

34

92-8

LOCK WASHER,1/2"

15шт.

35

25-118

NUT,1/2"-20, G5

- reg. SF hex

8шт.

36

74-620

SCREW 3/8 - 24 NF x 1-1/4 (R18922 mtg.)

2шт.

37

14-516

BOLT,Hex, 5/16" - 24 x 1", Gr 5, Full Thd

HHCS 5/16 - 24 NF x 1 (70248 mtg.)

4шт.

38

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

39

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

8шт.

40

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8 - 24 NF x 1 (34574 mtg.)

8шт.

41

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

42

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2 - 20 NF x 1 (R16427 mtg.)

6шт.

43

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

(R18424 mtg.) Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

44

195-18

WASHER,1/4"

- plain

4шт.

45

195-21

WASHER,5/16"

plain 5/16"

4шт.

46

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R15541 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

2шт.

47

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex

3шт.

48

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

49

R15536

VALVE

- relief

1шт.

50

R15538

VALVE

- air inlet

1шт.
