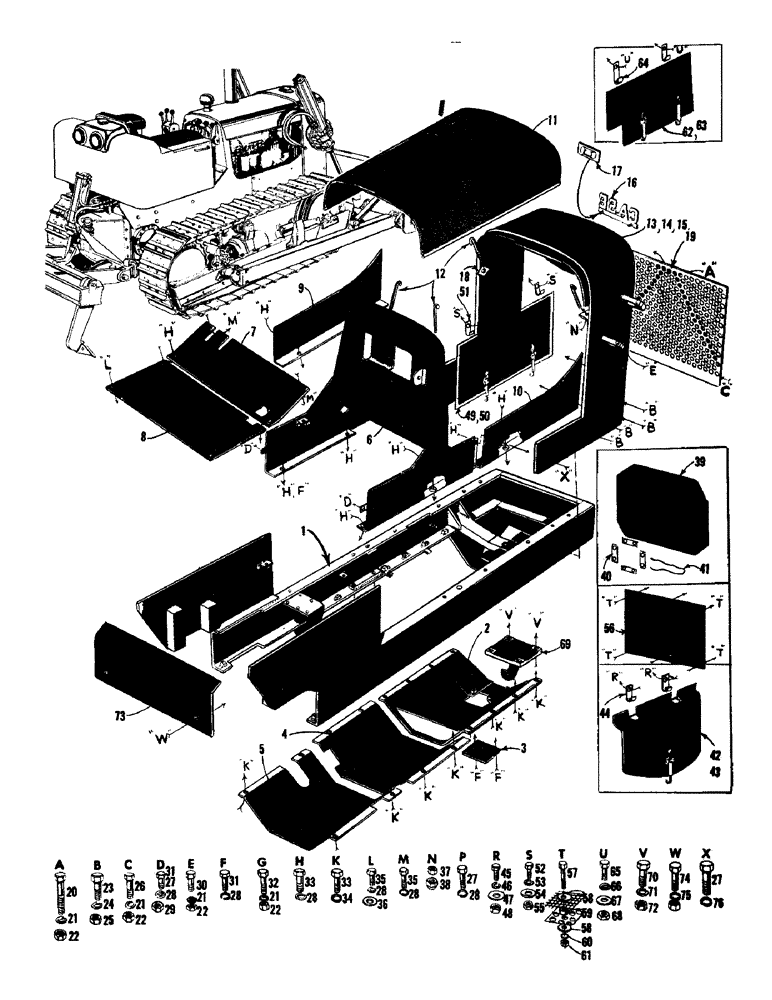

Запчасти Case 750 (084) - ENGINE FRAME, MUD PANS, COWL, HOOD, SHROUD & MTG. PARTS (05) - UPPERSTRUCTURE CHASSIS

1

R19221

FRAME ASS'Y - engine

1шт.

2

R20456

GUARD ASS'Y - bottom front

1шт.

3

R20471

DOOR - guard

1шт.

4

R19259

GUARD - bottom center

1шт.

5

R19260

GUARD - bottom rear

1шт.

6

R19284

COWL ASS'Y

1шт.

7

R19485

PLATE ASS'Y - floor front

1шт.

8

R19453

PLATE ASS'Y - floor rear

1шт.

9

R19239

SIDE PANEL - engine LH

1шт.

10

R19240

SIDE PANEL - engine RH

1шт.

11

R19224

HOOD ASS'Y - engine

1шт.

12

R17778

BOLT (SPREADER)

BOLT - hood latch

4шт.

13

R20123

SHROUD ASS'Y - radiator (Drawbar only)

1шт.

14

R21899

SHROUD ASS'Y - radiator (Dozer only)

1шт.

15

R21897

SHROUD ASS'Y - radiator (Loader only)

1шт.

16

A11320

PLATE

- name

1шт.

17

A11319

X

CLIP - push on

2шт.

18

R20874

ANGLE - hood latch

2шт.

19

R20121

GRILL ASS'Y

1шт.

20

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

HHCS 5/8 - 18 NF x 3-3/4 (R20121 mtg.)

1шт.

21

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

22

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8 - 18 NF)

5шт.

23

14-1244

BOLT,Hex, 3/4" - 16 x 2-3/4", Gr 5

HHCS 3/4 - 16 NF x 2-3/4 (Shroud mtg.)

8шт.

24

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

25

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4 - 16 NF)

8шт.

26

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(R20126 mtg.) Hex, 5/8"-18 x 2", G5

2шт.

27

14-1644

BOLT,Hex, 1" - 14 x 2-3/4", Gr 5, Full Thd

HHCS 1 - 14 x 2-3/4

2шт.

28

92-8

LOCK WASHER,1/2"

20шт.

29

25-118

NUT,1/2"-20, G5

- lock

6шт.

30

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(R20874 mtg.) Hex, 5/8"-18 x 1 3/4", G5

2шт.

31

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2 - 20 NF x 1-3/4 (R20471 & R19284 mtg.)

3шт.

32

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(R19239 & R19240 mtg.) Hex, 5/8"-18 x 1 1/2", G5

4шт.

33

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2 - 20 NF x 1-1/2 (R19240, R20456, R19259, & R19260 mtg.)

29шт.

34

95-8

WASHER,1/2"

- plain 1/2"

16шт.

35

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (R19485 & R19453 mtg.)

4шт.

36

195-33

WASHER,1/2"

- plain

2шт.

37

25-146

JAM NUT,Jam, 3/8"-16, G5

- jam (3/8 - 16 NC)

4шт.

38

R17777

NUT

- cone (3/8 - 16 NC)

4шт.

R3957

RADIATOR SCREEN INSTALLATION (Optional equipment)

1шт.

39

R22137

SCREEN - radiator

1шт.

40

R14077

STRAP

- radiator guard

4шт.

41

R14078

ELECTRICAL WIRE

WIRE - tie

2шт.

R3642

SHIELD INSTALLATION (Optional equipment)

1шт.

42

R18902

SHIELD ASS'Y - side RH

1шт.

43

R18901

SHIELD ASS'Y - side LH

1шт.

44

R12427

CATCH

HOOK - hood

4шт.

45

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R12427 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

46

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

47

195-25

WASHER,3/8"

4шт.

48

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

4шт.

R34070

BRUSH SCREEN INSTALLATION (Optional equipment)

1шт.

49

R20506

BRUSH SCREEN RH

1шт.

50

R20505

BRUSH SCREEN LH

1шт.

51

R12427

CATCH

HOOK - hood

4шт.

52

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R12427 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

53

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

54

195-25

WASHER,3/8"

4шт.

55

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

4шт.

R3980

BRUSH GUARD INSTALLATION

1шт.

56

R20585

BRUSH SCREEN

1шт.

57

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8 - 24 NF x 1-1/2 (R20585 mtg.)

6шт.

58

195-25

WASHER,3/8"

6шт.

59

R20553

WASHER

SPACER

6шт.

60

195-25

WASHER,3/8"

6шт.

61

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

6шт.

R3981

BRUSH SCREEN INSTALLATION

1шт.

62

R19518

BRUSH SCREEN - side RH

1шт.

63

R19517

BRUSH SCREEN - side LH

1шт.

64

R12427

CATCH

HOOK - hood

4шт.

65

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(R12427 mtg.) Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

66

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

67

195-25

WASHER,3/8"

4шт.

68

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

4шт.

NS

NOT SERVICED

PULL HOOK INSTALLATION (Optional equipment) (6337)

1шт.

69

71671

PLATE ASSY.

HOOK - pull

1шт.

70

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS 3/4 - 16 NF x 2-1/2 (71671 mtg.)

4шт.

71

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

72

25-1112

NUT,3/4"-16, G5

- reg. SF hex (3/4 - 16 NF)

4шт.

R3930

GUARD INSTALLATION - rear (Optional equipment)

1шт.

73

R19416

GUARD - rear

1шт.

74

14-1020

BOLT,Hex, 5/8" - 18 x 1-1/4", Gr 5

Hex, 5/8"-18 x 1 1/4 (R19415 mtg.)

2шт.

75

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

76

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

2шт.
