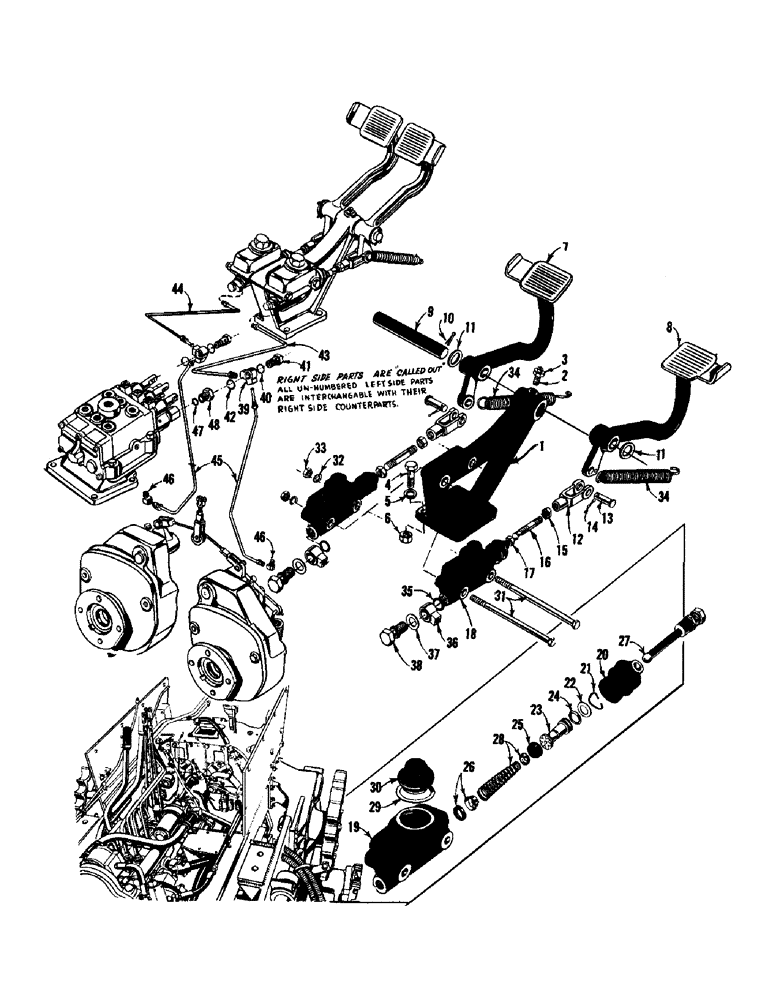

Запчасти Case 750 (064) - BRAKE PEDALS, MASTER CYLINDERS & MTG. PARTS (05) - UPPERSTRUCTURE CHASSIS

1

R13496

SUPPORT - brake shaft

1шт.

2

178-459

SET,Hex Soc, 3/8"-16 x 1"

SHSS 3/8 - 16 NC x 1

1шт.

3

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam (3/8 - 16 NC)

1шт.

4

14-624

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

HHCS 3/8 - 24 NF x 1-1/2 (R13496 mtg.)

4шт.

5

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

4шт.

7

R19193

PEDAL - brake, LH

1шт.

8

R19194

PEDAL

- brake, RH

1шт.

9

72324

O-RING

PIN - brake pedal

1шт.

10

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), 5/32" x 1 1/4"

2шт.

11

195-45

WASHER,3/4"

2шт.

12

213-6

ADJUSTABLE CLEVIS,1/2"-20 x 3"

YOKE - adjustable

2шт.

13

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

14

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

15

25-158

JAM NUT,Jam, 1/2"-20, G5

- hex jam (1/2 - 20 NF)

2шт.

16

R13580

ROD

- push, brake

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- reg. SF hex (5/16 - 18 NC)

2шт.

18

31481

CYLINDER

ASS'Y - master

2шт.

19

NSS

NOT SOLD SEPARAT

BODY - master cylinder

1шт.

5896

KIT

- master cylinder repair

1шт.

20

33346

BOOT

- master cylinder

1шт.

21

NSS

NOT SOLD SEPARAT

LOCK WIRE - piston stop

1шт.

22

NSS

NOT SOLD SEPARAT

PLATE - piston stop

1шт.

23

NSS

NOT SOLD SEPARAT

PISTON ASS'Y

1шт.

24

NSS

NOT SOLD SEPARAT

SEAL - "O" ring

1шт.

25

NSS

NOT SOLD SEPARAT

CUP - master cylinder

1шт.

26

NSS

NOT SOLD SEPARAT

VALVE ASS'Y - master cylinder

1шт.

27

33345

ROD

ASS'Y - push

1шт.

28

33352

SPRING

& RETAINER ASS'Y - master cylinder

1шт.

29

33356

GASKET - filler cap

1шт.

30

33357

SPARE PART

CAP ASS'Y - filler

1шт.

31

14-6108

BOLT,Hex, 3/8" - 24 x 6-3/4", Gr 5, Full Thd

HHCS 3/8 - 24 NF x 6-3/4 (31481 mtg.)

2шт.

32

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

2шт.

34

R13628

SPRING

- pedal return

2шт.

35

NLS

NO LONGER SERVICED

- inlet connection

2шт.

37

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

38

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection

2шт.

39

51200243

FITTING

- brake line

2шт.

40

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection

2шт.

41

33262

HORN,1/2" - 20 x 1 5/32"

BOLT - connection

2шт.

42

NLS

NO LONGER SERVICED

- inlet connection

2шт.

43

R19553

TUBE ASS'Y - brake line

1шт.

44

R19492

TUBE ASS'Y - brake line

1шт.

45

R15807

TUBE ASS'Y - brake line

2шт.

46

222-1021

ELBOW,90 Degree, 3/8"-24 Inv Fl x 1/8" NPT

- 90 degrees male, 1/8 NP to 3/16 tube

2шт.

47

49399

X

SEAL - "O" ring

2шт.

48

72125

ADAPTER

- brake tube

2шт.
