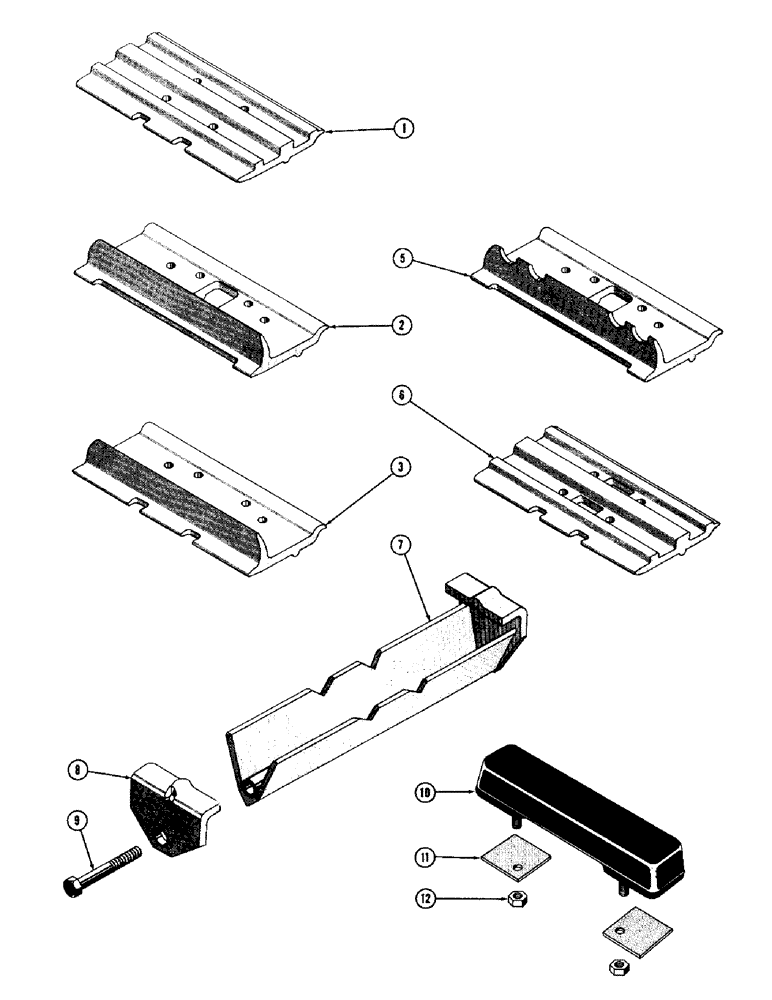

Запчасти Case 750 (082) - GROUSERS, STREET PLATES, MUD GROUSERS (04) - UNDERCARRIAGE

1

71076

PLATE - 13" street

72шт.

R20531

PLATE - 10" street

72шт.

2

R21602

GROUSER - 13" open type mud

72шт.

R21603

TRACK SHOE

GROUSER - 14" open type mud

72шт.

72262

GASKET

GROUSER - 16" open type mud

72шт.

72263

GROUSER - 18" open type mud

72шт.

3

71075

GROUSER - 13" track

72шт.

71077

PLATE

GROUSER - 14" track

72шт.

R56736

SHOE

GROUSER - 16" track

72шт.

71081

GROUSER - 18" track

72шт.

4

RESERVED

1шт.

5

72265

SHAFT

GROUSER - 15" snow and ice

72шт.

R21619

GROUSER - 17" snow and ice

72шт.

6

72928

PLATE - 13" open type mud

72шт.

R4254

GROUSER INSTALLATION - 13" clamp-on (Optional)

1шт.

R21513

GROUSER ASS'Y - 13" clamp-on

10шт.

7

R21514

GROUSER - 13" clamp-on

1шт.

8

R21515

PLATE - end

1шт.

9

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

1шт.

R3551

KIT

RUBBER TRACK SHOE INSTALLATION

1шт.

10

70635

SHOE

- track, rubber

72шт.

11

R21166

SPACER

144шт.

12

R21548

X

NUT - lock, special (1/2 - 20 NF)

144шт.
