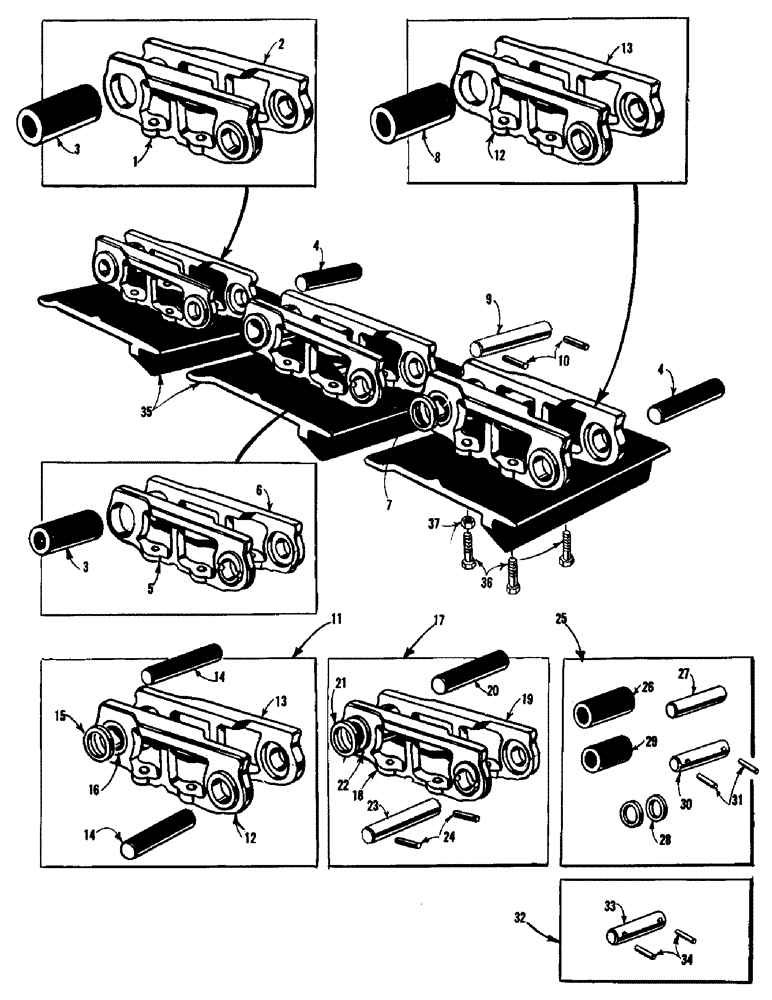

Запчасти Case 750 (080) - TRACK CHAIN (04) - UNDERCARRIAGE
№
Артикул
Название
Примечание
Количество
72734
CHAIN ASS'Y - 18 units
4шт.
1
31079
LINK
- track, RH (order kit #R2215, ref. #11)
17шт.
2
31080
LINK
- track, LH (Order kit #R2215, ref. #11)
17шт.
3
70079
BUSHING
- long (Order kit #R2191, ref. #25)
17шт.
4
70078
PIN
- track (See kit #R2191, ref. #25)
17шт.
5
70902
LINK
- track master, RH (Order kit #R2216, ref. #17)
1шт.
6
70903
LINK
- track master, LH (Order kit #R2216, ref. #17)
1шт.
7
70843
SPACER
BUSHING - track spacer (See kit #R2191, ref. #25)
2шт.
8
70848
BUSHING
- track master (Short) (See kit #R2191, ref. #25)
1шт.
R2214
KIT
- master pin
1шт.
9
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
10
R15710
LINCH PIN
PIN - lock
2шт.
11
R2215
KIT
- track unit repair
72шт.
12
31079
LINK
- track, RH
1шт.
13
31080
LINK
- track, LH
1шт.
14
70078
PIN
- track
2шт.
15
70843
SPACER
BUSHING - track spacer
2шт.
16
70848
BUSHING
- master (Short)
1шт.
17
R2216
KIT
- track master unit repair
4шт.
18
70902
LINK
- track master, RH
1шт.
19
70903
LINK
- track master, LH
1шт.
20
70078
PIN
- track
1шт.
21
70843
SPACER
BUSHING - track spacer
2шт.
22
70848
BUSHING
- master (Short)
1шт.
R2214
KIT
- master pin
1шт.
23
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
254
R15710
LINCH PIN
PIN - lock
2шт.
25
R2191
KIT
- pin and bushing
1шт.
26
70079
BUSHING
- long
70шт.
27
70079
BUSHING
PIN - track
70шт.
28
70843
SPACER
BUSHING - track spacer
8шт.
29
70848
BUSHING
- master (Short)
4шт.
R2214
KIT
- master pin
4шт.
30
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
31
R15710
LINCH PIN
PIN - lock
2шт.
32
R2214
KIT
- master pin
4шт.
33
NSS
NOT SOLD SEPARAT
PIN - master
1шт.
34
R15710
LINCH PIN
PIN - lock
2шт.
35
NLS
NO LONGER SERVICED
GROUSER - track
72шт.
36
R14841
BOLT
BOLT - track, 1/2 - 20 NF x 1-3/4
288шт.
37
25-278
NUT,1/2"-20, G5, High
- lock (1/2 - 20 NF)
288шт.
Выбрано товаров: 41
