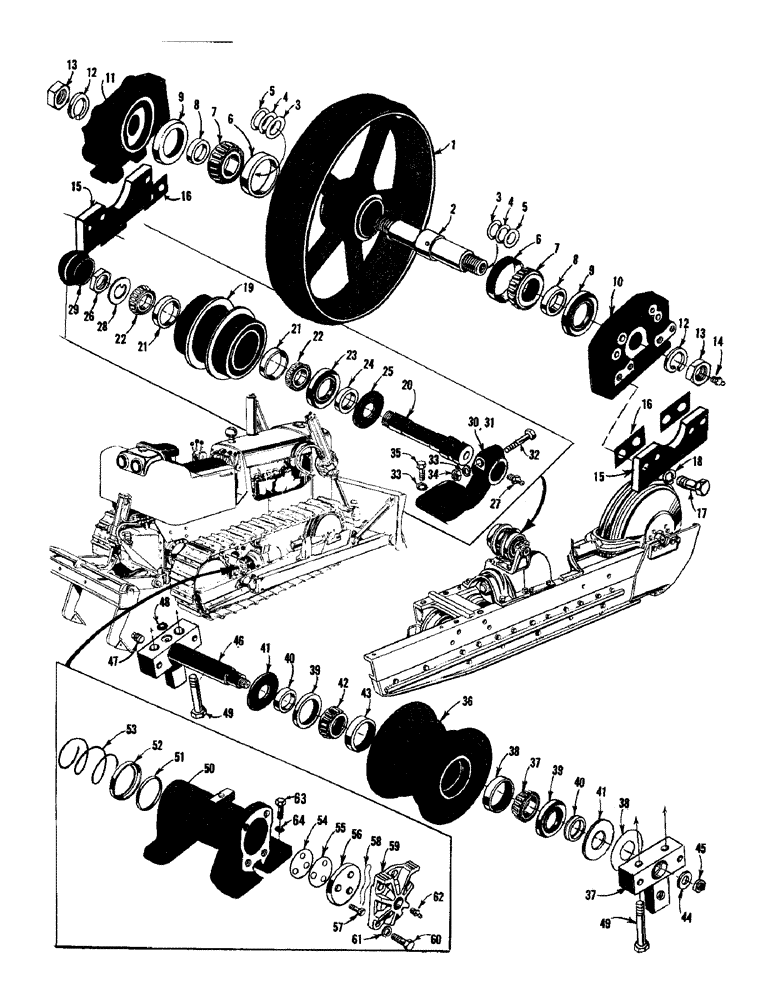

Запчасти Case 750 (078) - FRONT IDLERS, SUPPORT IDLERS, ROLLERS, & PIVOT BLOCKS (04) - UNDERCARRIAGE

R2005

IDLER AND BRACKET ASS'Y - front

2шт.

1

R10267

WHEEL - front idler

1шт.

2

R15588

SHAFT - front idler

1шт.

3

R10271

SHIM - front idler

1шт.

4

R10272

SHIM - front idler

1шт.

5

R10273

SHIM - front idler

1шт.

6

R10277

BEARING CUP,3.5" OD x 0.9063"

CUP - roller bearing

2шт.

7

R10276

ROLLER BEARING,1.686" ID x 1.1669"

CONE - roller bearing

2шт.

8

R10268

SPACER - front idler

2шт.

9

R10275

OIL SEAL

SEAL - oil, front idler

2шт.

10

R20640

BRACKET - front idler, RH

1шт.

11

R20639

BRACKET - front idler, LH

1шт.

12

R15406

WASHER - lock

2шт.

13

131-373

LOCK NUT,1 3/8"-12, GA

NUT - lock

2шт.

14

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease

1шт.

15

R10269

PLATE ASSY.

PLATE - guide, idler bracket

2шт.

16

R10274

SHIM - idler bracket

3шт.

17

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(R20639 & R20640 mtg.) Hex, 5/8"-18 x 2", G5

8шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

R20141

ROLLER ASS'Y - track support

2шт.

19

70080

HUB ASS'Y - support roller

1шт.

20

R19944

X

SHAFT - support roller

1шт.

21

G57451

BEARING, CUP

CUP - roller bearing

2шт.

22

G57452

ROLLER BEARING

CONE - roller bearing

2шт.

23

40646

GASKET

SEAL - oil

1шт.

24

70081

SPACER

- support roller

1шт.

25

70086

SHIELD

- support roller

1шт.

26

72183

NUT

- hex

1шт.

27

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

1шт.

28

R20132

WASHER

- keyed

1шт.

29

R20063

CAP

- support roller

1шт.

30

R21309

BRACKET - track support roller, LH

1шт.

31

R21310

BRACKET - track support roller, RH

1шт.

32

14-852

BOLT,Hex, 1/2" - 20 x 3-1/4", Gr 5

HHCS 1/2 - 20 NF x 3-1/4 (R20114 mtg.)

2шт.

33

92-8

LOCK WASHER,1/2"

5шт.

34

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2 - 20 NF)

2шт.

35

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x f1-1/4 (R21309 & R21310 mtg.)

4шт.

R18562

ROLLER ASS'Y - track

10шт.

36

R12305

HUB - track roller

1шт.

37

R16913

BLOCK - outer track roller

1шт.

38

R19587

SHIM,.005" Thk

Track roller .005" Thk

1шт.

R3309

KIT

- track roller

1шт.

39

40646

GASKET

SEAL - oil

2шт.

40

70068

SPACER

- track roller

2шт.

41

70069

SHIELD

- track roller

2шт.

42

40409

ROLLER BEARING,1.5625" ID x 1.01"

CONE - roller bearing

2шт.

43

O1455AB

X

CUP - roller bearing

2шт.

44

32601

WASHER

- track roller

1шт.

45

131-581

LOCK NUT,3/4"-16

NUT - lock

1шт.

46

R16915

SHAFT

BLOCK AND SHAFT ASS'Y - track roller

1шт.

47

221-849

PLUG,Hex Soc, 1/8"-27

- pipe

1шт.

48

74667

GASKET

- track roller

10шт.

49

R13549

BOLT - place, 3/4 - 16 NF x 2-3/4 (R18562 mtg.)

40шт.

50

R14100

BLOCK - pivot

2шт.

51

R13774

O-RING,0.21" Thk x 2.975" ID, -337, Cl 5, 75 Duro

-337, 70 Duro, 2.975" ID x .210" Thk

2шт.

52

R13783

RETAINER - "O" ring

2шт.

53

R14566

SPRING - retainer

2шт.

54

R13087

SHIM,.031" Thk

Pivot shaft .031" Thk

2шт.

55

R13086

X

SHIM - pivot shaft

2шт.

56

R13085

PLATE - lock

2шт.

57

R13420

BOLT

- special

6шт.

58

R13538

ELECTRICAL WIRE

WIRE - tie

2шт.

59

R14099

COVER

- pivot shaft

2шт.

60

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2 - 20 NF x 1-1/2 (R14099 mtg.)

10шт.

61

92-8

LOCK WASHER,1/2"

5шт.

62

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NP

2шт.

63

14-1636

BOLT,Hex, 1" - 14 x 2-1/4", Gr 5, Full Thd

HHCS - 1 - 14 NF x 2-1/4 (R14100 mtg.)

8шт.

64

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

8шт.
