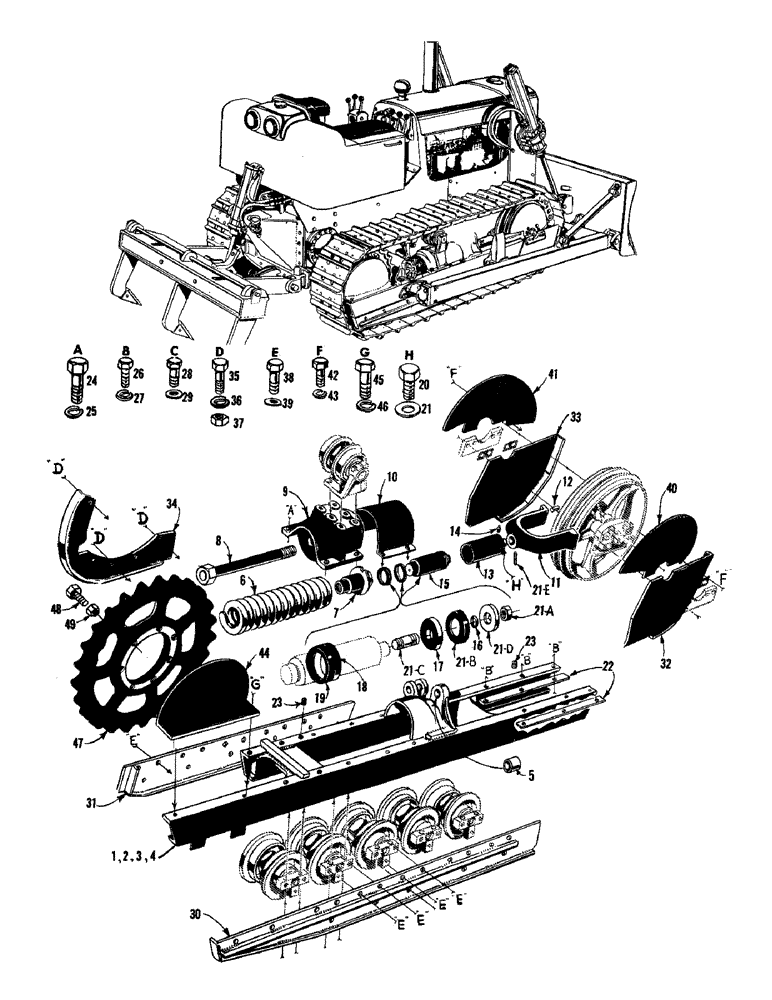

Запчасти Case 750 (074) - TRACK FRAME & RECOIL SYSTEM (04) - UNDERCARRIAGE

1

R19327

FRAME ASS'Y - track, LH (Standard & loader tractors)

1шт.

2

R19328

FRAME ASS'Y - track, RH (Standard & loader tractors)

1шт.

3

R19205

FRAME ASS'Y - track, LH (Dozer tractors)

1шт.

4

R19206

FRAME ASS'Y - track, RH (Dozer tractors)

1шт.

5

R18458

BUSHING

1шт.

R15653

SPRING ASS'Y - recoil

2шт.

6

R15886

SPRING - recoil

1шт.

7

R16589

SLEEVE - recoil spring

1шт.

8

R16457

BOLT ASS'Y - track adjusting

1шт.

9

R10243

HOUSING - rear recoil

1шт.

10

R14974

COVER - recoil spring

2шт.

R22092

X

YOKE ASS'Y - front idler

2шт.

11

R18188

YOKE - idler

1шт.

12

R16453

PIN

- dowel

2шт.

R22090

TRACK ADJ. ASS'Y - hydraulic

2шт.

13

R20335

CYLINDER BLOCK

HEAD ASS'Y - piston

1шт.

14

R20439

X

FITTING - grease

1шт.

15

R20338

PISTON

1шт.

16

08569AB

SEAL - "O" ring

1шт.

17

R21771

BUSHING

SPACER

1шт.

18

R21772

RING

- rider

1шт.

19

R21773

SEAL

1шт.

20

R21362

BOLT - vent

1шт.

21

10298

COPPER WASHER

- copper

1шт.

21a

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock 1/2 - 20 NF

1шт.

21b

R21760

CUP - hyd. adj.

1шт.

21c

74261

STUD - 1/2 - 20 NF

1шт.

21d

R21769

WASHER

- special

1шт.

21e

138-180

LOCK PIN,3/8" x 2 1/2", Slotted

PIN, 3/8" x 2 1/2", Slotted

2шт.

22

70094

PLATE

- wear

4шт.

23

221-21

DRAIN PLUG,Sq Soc, 1/4"-18 NPTF

PLUG - pipe, socket head, 1/4 NP

4шт.

24

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(R10243 mtg.) Hex, 5/8"-18 x 1 1/2", G5

8шт.

25

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

26

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (70094 mtg.)

8шт.

27

92-8

LOCK WASHER,1/2"

8шт.

28

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2 - 20 NF x 1 (R14974 mtg.)

8шт.

29

195-33

WASHER,1/2"

- plain

8шт.

R3927

ROCK GUARD INSTALLATION (Allied equipment tractors)

1шт.

R4016

ROCK GUARD INSTALLATION (Drawbar tractors)

1шт.

30

R19177

GUARD - rock, outer, LH

1шт.

R19178

GUARD - rock, outer RH

1шт.

31

R19201

GUARD - rock, inner, LH

1шт.

R19202

GUARD - rock, inner, RH

1шт.

32

R15867

GUARD - idler, RH

2шт.

33

R15866

GUARD - idler, LH

2шт.

34

R15829

GUARD - rock, rear, LH

1шт.

R15830

GUARD - rock, rear, RH

1шт.

35

14-1032

BOLT,Hex, 5/8" - 18 x 2", Gr 5

(R15829 & R15830 mtg.) Hex, 5/8"-18 x 2", G5

10шт.

36

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

37

25-1110

NUT,5/8"-18, G5

- reg. SF hex (5/8 - 18 NF)

10шт.

38

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

HHCS 1/2 - 20 NF x 1-1/4 (R19177-78 & R19201-02 mtg.) (R3927 only)

64шт.

39

195-33

WASHER,1/2"

- plain (R3927 only)

64шт.

R3134

GUARD INSTALLATION - front idler

1шт.

40

R15865

GUARD

- front idler, RH

2шт.

41

R15864

GUARD - front idler, LH

2шт.

42

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS 1/2 - 20 NF x 1 (R15865 mtg.)

16шт.

43

92-8

LOCK WASHER,1/2"

16шт.

R4275

GUARD INSTALLATION - sprocket

1шт.

44

R15860

GUARD ASS'Y - sprocket

2шт.

45

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(R15860 mtg.) Hex, 5/8"-18 x 1 1/2", G5

4шт.

47

R10441

SPROCKET - drive

2шт.

48

70119

BOLT,Hex, 3/4" - 16 x 2.75", Gr 5

- drive sprocket

14шт.

49

231-46112

LOCK NUT,3/4"-16, GB

NUT - lock (3/4 - 16 NF)

14шт.
