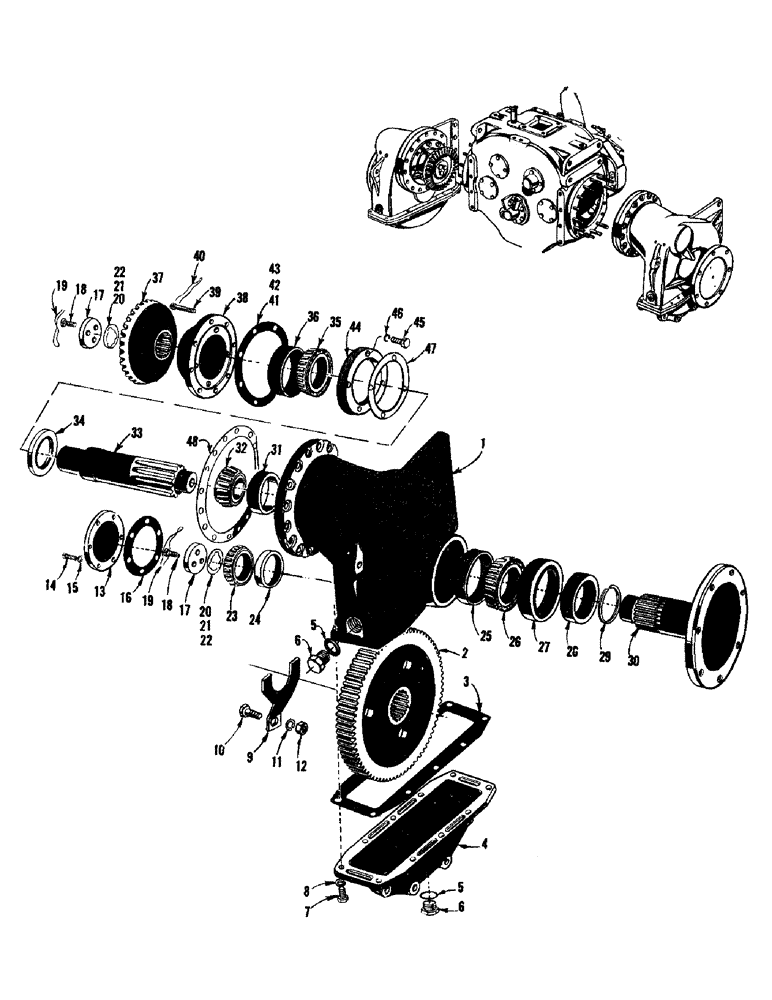

Запчасти Case 750 (062) - FINAL DRIVE ASSY. - HOUSINGS, GEARS, & SHAFTS (03) - TRANSMISSION

R3870

TRANSMISSION & FINAL DRIVE ASS'Y (Complete)

1шт.

R20768

DRIVE ASS'Y - RH final

1шт.

R20767

DRIVE ASS'Y - LH final

1шт.

1

R20788

HOUSING - RH extension

1шт.

R20787

HOUSING - LH extension

1шт.

2

R20770

GEAR - final drive

1шт.

3

R20816

GASKET - extension housing cover

1шт.

4

R20812

COVER - extension housing

1шт.

5

A58613

SEALING WASHER

- drain plug

2шт.

6

R14777

PLUG

- drain

2шт.

7

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(R20812 mtg.) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

10шт.

8

92-8

LOCK WASHER,1/2"

10шт.

9

R20822

PLATE - gear lock

1шт.

10

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS 1/2 - 20 NF x 1-1/2 (R20822 mtg.)

1шт.

11

92-8

LOCK WASHER,1/2"

1шт.

12

25-118

NUT,1/2"-20, G5

- reg. SF hex

1шт.

13

34170

BELT

COVER - bearing

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(34170 mtg.) Hex, 3/8"-16 x 1", G5, Full Thd

6шт.

15

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

16

34424

GASKET - bearing cover

1шт.

17

R19889

PLATE

- lock

2шт.

18

R19888

SCREW

HHCS 1/2 - 20 NF x 1-1/4 (R19889 mtg.)

6шт.

19

391-702

WIRE - tie

1шт.

20

R21741

SHIM,.005" Thk

1шт.

21

R21742

SHIM,.007" Thk

1шт.

22

R21743

SHIM,.020" Thk

1шт.

23

40428

CONE - roller bearing

1шт.

24

O3755AB

X

CUP - roller bearing

1шт.

25

A7892

BEARING, CUP

CUP - roller bearing

1шт.

26

40442

ROLLER BEARING,3.25" ID x 1.172"

CONE - roller bearing

1шт.

27

R22729

SEAL

SEAL - oil

1шт.

28

R16702

X

COLLAR - sprocket shaft

1шт.

29

R20823

RING - snap

1шт.

30

R20797

SHAFT - output

1шт.

31

R20824

CUP - roller bearing

1шт.

32

R20827

CONE - roller bearing

1шт.

33

R20769

SHAFT - pinion

1шт.

34

R20798

SEAL - oil

1шт.

35

A7891

ROLLER BEARING

CONE - roller bearing

1шт.

36

A7890

BEARING CUP,112.738 mm OD x 23.81 mm

CUP - roller bearing

1шт.

37

R15318

GEAR - bevel

1шт.

38

R20818

CARRIER - pinion shaft

1шт.

39

46945

SCREW

HHCS 3/8 - 16 NC x 1 (R20818 mtg.)

8шт.

40

391-631

WIRE

- tie

1шт.

41

R20813

SHIM (.010)

1шт.

42

R20814

SHIM (.005)

1шт.

43

R20815

SHIM (.003)

1шт.

44

R20819

CARRIER - pinion shaft

1шт.

45

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

(R20819 mtg.) Hex, 1/4"-20 x 1", G5

4шт.

46

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

47

R20817

GASKET - pinion

1шт.

48

32511

SHIM

1шт.
