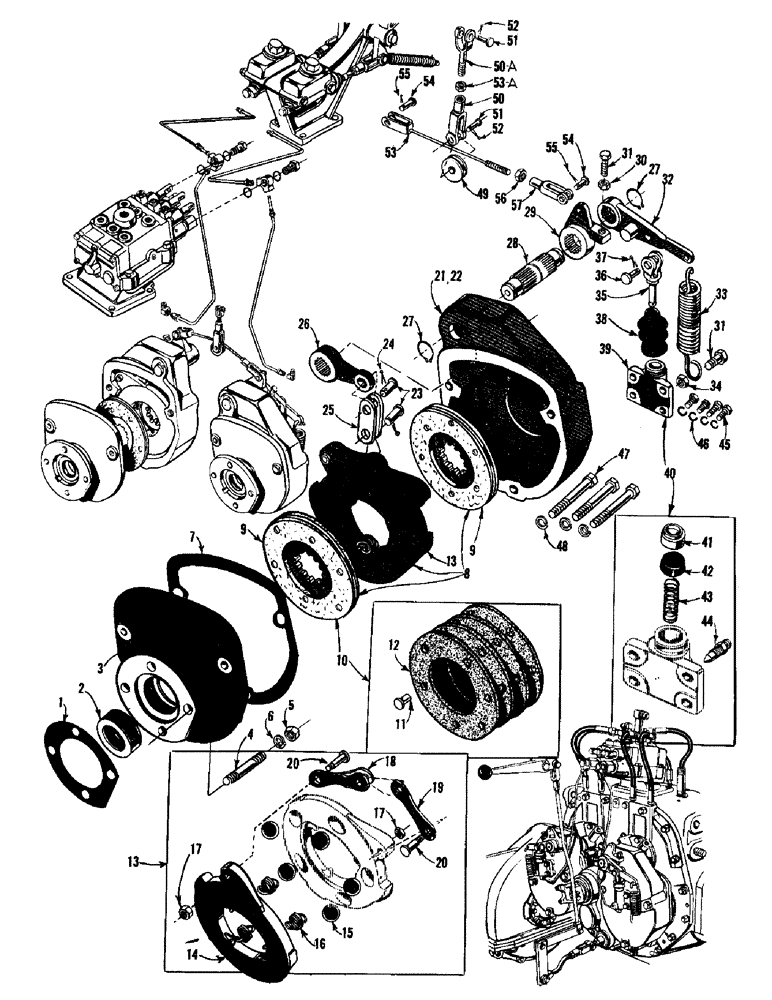

Запчасти Case 750 (058) - BRAKE PARTS & LINKAGE (03) - TRANSMISSION

R3870

TRANSMISSION & FINAL DRIVE INSTALLATION (Complete)

1шт.

1

R15355

GASKET - brake mount

1шт.

2

R15363

OIL SEAL

SEAL - oil

2шт.

3

R15351

MOUNT - brake

2шт.

4

46520

BOLT AND NUT,Hex, 1/4" - 20 x 1 1/2"

STUD 1/2 - 20 NF (R15351 mtg.)

8шт.

5

25-118

NUT,1/2"-20, G5

- reg. SF hex (1/2 - 20 NF)

8шт.

6

92-8

LOCK WASHER,1/2"

8шт.

7

R15356

GASKET - brake

2шт.

8

R15379

BRAKE ASS'Y - hydraulic

2шт.

R4202

X

KIT - middle disc

1шт.

9

NSS

NOT SOLD SEPARAT

DISC ASS'Y - middle

2шт.

10

R4200

KIT

- brake lining

1шт.

11

O7206AB

RIVET

3/16 dia. x 7/16

24шт.

12

NSS

NOT SOLD SEPARAT

LINING - brake

4шт.

13

R18531

DISC

ASS'Y - actuating

1шт.

14

NSS

NOT SOLD SEPARAT

DISC - actuating

2шт.

15

O9384AB

X

BALL, 7/8 dia.

5шт.

16

O8780AB

X

SPRING - extension

3шт.

17

25-155

JAM NUT,Jam, 5/16"-24, G5

- hex jam

2шт.

18

F77868

LINK

- yoke

1шт.

19

R18533

LINK

- plain

1шт.

20

O9269AB

X

STUD

2шт.

21

R20144

X

COVER - brake, RH

1шт.

22

R15352

X

COVER - brake, LH

1шт.

23

R15370

PIN

4шт.

24

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

25

R15369

LINK

4шт.

26

R15372

LEVER

- brake actuating

2шт.

27

O3721CH

X

RING - snap

4шт.

28

R15373

SHAFT - brake actuating

2шт.

29

R17182

LEVER - brake actuating

2шт.

30

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex jam (3/8 - 16 NC)

2шт.

31

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS 3/8 - 16 NC x 1-1/2 (R17182 mtg.)

4шт.

32

R15380

SPRING

LEVER ASS'Y - brake

2шт.

33

R15374

SPRING - brake

2шт.

34

25-106

NUT,3/8"-16, G5

- reg. SF hex (3/8 - 16 NC)

2шт.

35

R17914

YOKE - plain

2шт.

36

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - yoke

2шт.

37

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

2шт.

38

33346

BOOT

- brake

2шт.

39

R15404

CYLINDER ASS'Y - wheel

2шт.

40

R4290

KIT

- cylinder repair

1шт.

41

R15266

X

PISTON - wheel cylinder

1шт.

42

R15265

CUP - wheel cylinder

1шт.

43

R15264

SPRING - return

1шт.

44

R15262

SCREW

- bleeder

1шт.

45

61-616

HEX SOC SCREW,3/8"-16 x 1"

SHCS 3/8 - 16 NC x 1 (R15404 mtg.)

8шт.

46

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

47

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

(R20144 & R15352 mtg.) Hex, 1/2"-13 x 3 1/2", G5

6шт.

48

92-8

LOCK WASHER,1/2"

6шт.

49

70930

SHEAVE 1" dia.

1шт.

50

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

YOKE - adjustable

1шт.

50a

R20187

ROD

YOKE - adjustable

1шт.

51

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

2шт.

52

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

53

R20126

CABLE

- parking brake

1шт.

54

141-2

CLEVIS PIN,1/4" x .770"

PIN - yoke

2шт.

55

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

56

25-154

JAM NUT,Jam, 1/4"-28, G5

Hex Jam, 1/4"-28, G5

1шт.

57

213-2

ADJUSTABLE CLEVIS,1/4"-28 x 2"

YOKE - adjustable

1шт.
