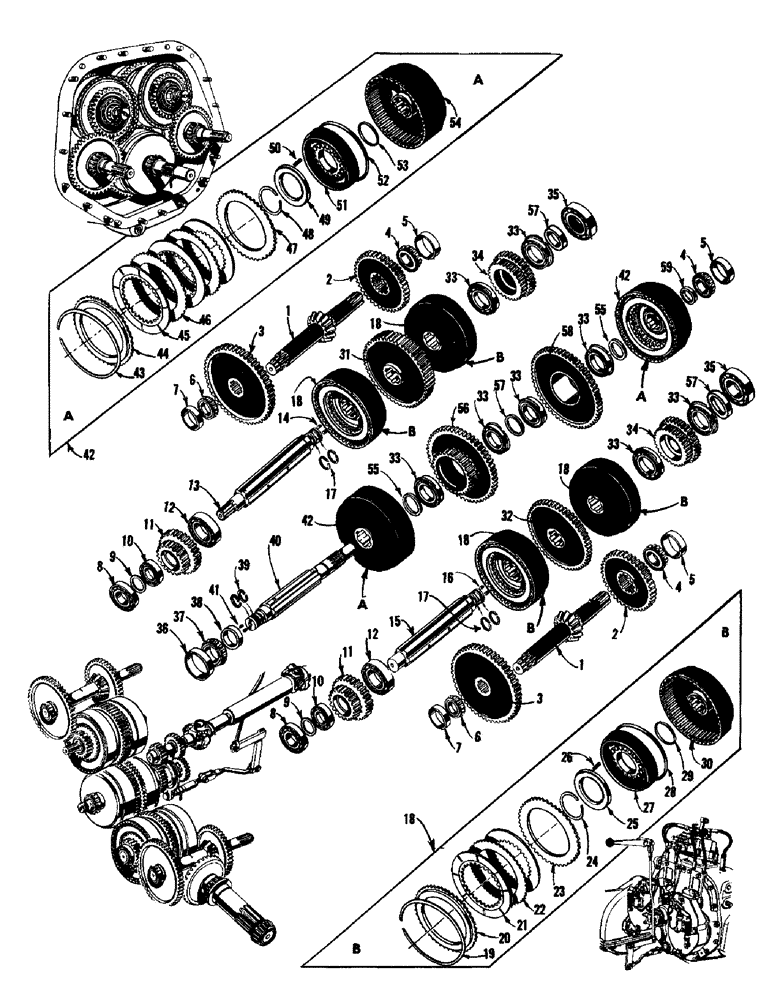

Запчасти Case 750 (056) - CLUTCH SHAFT & BRAKE SHAFT PARTS (03) - TRANSMISSION

R3870

TRANSMISSION & FINAL DRIVE ASS'Y (Complete)

1шт.

1

R15349

SHAFT - bevel pinion

2шт.

2

31952

GEAR - driven high

2шт.

3

32513

GEAR - driven low

2шт.

4

R17219

ROLLER BEARING

CONE - bearing

3шт.

5

O819CS

X

CUP - bearing

3шт.

6

148723C91

ROLLER BEARING,1.3775" ID x 2.8351" OD x 0.6704"

CONE - bearing

2шт.

7

40427

BEARING CUP

- bearing

2шт.

8

O1720AB

BEARING

- ball

2шт.

9

30684

KIT

RING - spacer

2шт.

10

40025

BALL BEARING,1.378" ID x 2.4409" OD x 0.5512"

- ball

2шт.

11

R12495

GEAR - clutch low

2шт.

12

G10418

BEARING, BALL

BEARING - ball

2шт.

13

R15336

SHAFT ASS'Y - clutch

1шт.

14

221-850

PLUG,Hex Soc, 1/16"-27

- allen head pipe

2шт.

15

R15334

SHAFT ASS'Y - clutch

1шт.

16

221-850

PLUG,Hex Soc, 1/16"-27

- allen head pipe

2шт.

17

32328

X

RING - piston

4шт.

18

R14198

CLUTCH ASS'Y - forward hydraulic

4шт.

19

30785

RING

- snap

1шт.

20

R12056

PLATE - backing

1шт.

21

R12710

X

DISC - clutch

2шт.

22

R12057

X

PLATE - clutch

1шт.

23

R13627

PLATE

- pressure

1шт.

24

R11014

RING, SNAP

RING - snap

1шт.

25

R11016

RETAINER

- spring

1шт.

26

R11015

SPRING

- clutch

18шт.

27

R10725

PISTON

- clutch

1шт.

28

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

29

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.

30

R11018

X

CARRIER - clutch

1шт.

31

31939

GEAR WHEEL

GEAR - drive

1шт.

32

31938

GEAR - driven

1шт.

33

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

- ball

8шт.

34

R12436

GEAR - clutch high

2шт.

35

O3013TS1

X

BEARING - ball

2шт.

36

40423

X

CUP - bearing

1шт.

37

40422

CONE - bearing

1шт.

38

R19986

SPACER

1шт.

39

32328

X

RING - piston

2шт.

40

R20085

SHAFT ASS'Y - clutch

1шт.

41

221-850

PLUG,Hex Soc, 1/16"-27

- allen head pipe

2шт.

42

R12724

CLUTCH

ASS'Y - reverse hydraulic

2шт.

43

30785

RING

- snap

1шт.

44

R12056

PLATE - backing

1шт.

45

R12710

X

DISC - clutch

3шт.

46

R12057

X

PLATE - clutch

2шт.

47

R13627

PLATE

- clutch

1шт.

48

R11014

RING, SNAP

RING - snap

1шт.

49

R11016

RETAINER

- spring

1шт.

50

R11015

SPRING

- clutch

18шт.

51

R10725

PISTON

- clutch

1шт.

52

49390

O-RING,6.475" ID x 7.025" OD x 0.275"

SEAL - "O" ring

1шт.

53

R11012

O-RING,2-3/8" ID x 2-3/4" OD x 3/16"

SEAL - "O" ring

1шт.

54

R10726

CARRIER

- clutch

1шт.

55

R19987

SPACER - clutch shaft

2шт.

56

R12343

GEAR WHEEL

GEAR - clutch forward

1шт.

57

30664

X

SPACER

3шт.

58

R12410

GEAR - clutch reverse

1шт.

59

R19985

SPACER

1шт.
