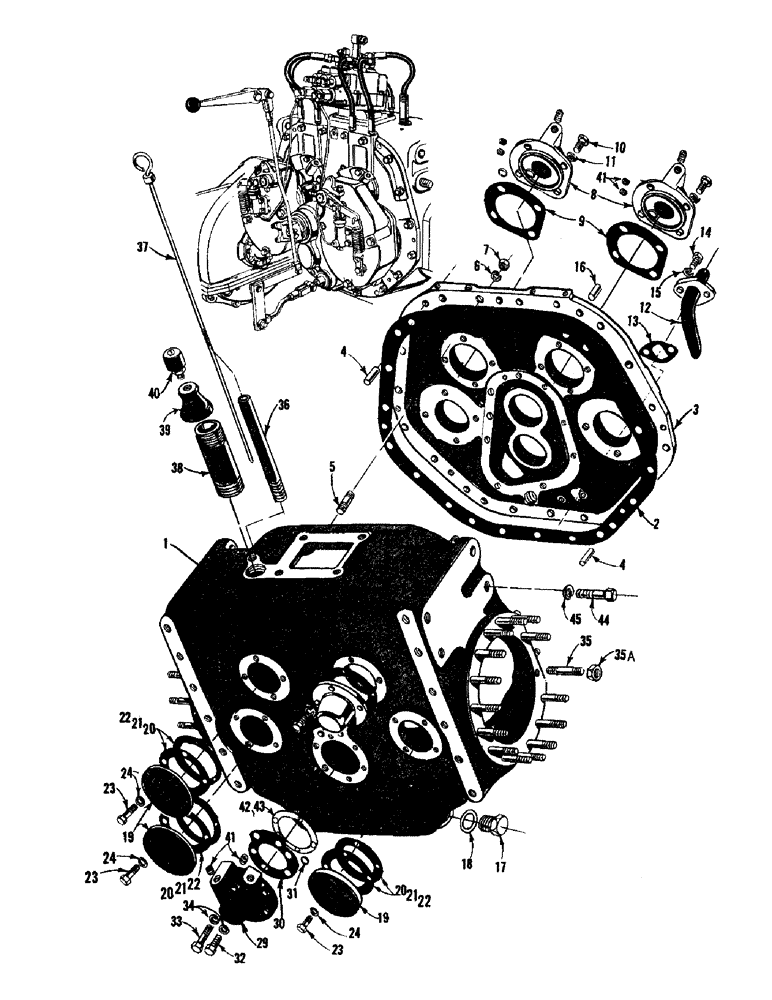

Запчасти Case 750 (054) - TRANSMISSION HOUSING, GASKETS & COVERS (03) - TRANSMISSION

R3870

TRANSMISSION & FINAL DRIVE ASS'Y (Complete)

1шт.

1

R15340

HOUSING - main

1шт.

2

R15353

GASKET - front housing cover

1шт.

3

R15341

COVER - front

1шт.

4

70205

PIN

- dowel 1/2 dia

4шт.

5

46520

BOLT AND NUT,Hex, 1/4" - 20 x 1 1/2"

STUD 1/2 - 20 NF

19шт.

6

92-8

LOCK WASHER,1/2"

19шт.

7

25-118

NUT,1/2"-20, G5

- req. SF hex.

19шт.

8

R17232

COVER - oil inlet

2шт.

9

R15358

GASKET - oil inlet cover

1шт.

10

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(R17232 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

8шт.

11

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

12

R15450

SNORKEL ASS'Y

1шт.

13

R15453

GASKET

1шт.

14

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(R15450 mtg.) Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

15

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

70205

PIN

- dowel 1/2 dia

2шт.

17

R14777

PLUG

- drain

1шт.

18

72293

GASKET

- copper

1шт.

19

32503

COVER

3шт.

20

A50058

GASKET

1шт.

21

34852

VALVE

1шт.

22

A50058

GASKET

1шт.

23

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(32503 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

12шт.

24

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

25

30666

COVER ASSY

COVER

1шт.

26

34852

VALVE

1шт.

27

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(30666 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

28

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

29

30999

COVER - oil inlet rear

1шт.

30

32507

GASKET

1шт.

31

NLS

NO LONGER SERVICED

SEAL - "O" ring

2шт.

32

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

(30999 mtg.) Hex, 3/8"-16 x 3/4", G5, Full Thd

5шт.

33

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- 3/8-16 NC x 2 (30999 mtg.)

1шт.

34

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

35

R14576

STUD 1/2 dia

30шт.

35a

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock

30шт.

36

R12344

SUPPORT ASSY.

SUPPORT - dipstick

1шт.

37

R15787

DIPSTICK ASS'Y

1шт.

38

221-225

NIPPLE - pipe Nipple, 3/4" NPT x 7"

1шт.

39

221-91

REDUCER,Hex, 3/4" x 1/4" NPT

1шт.

40

31543

BREATHER

FILTER

1шт.

41

221-349

X,Pipe, 1/2" x 3/8" NPT

PLUG - pipe

2шт.

42

40590

SHIM

(.005)

1шт.

43

40591

SHIM

(.010)

1шт.

44

14-1260

BOLT,Hex, 3/4" - 16 x 3-3/4", Gr 5

HHCS 3/4 - 16 NF x 3-3/4

8шт.

45

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.
