Запчасти Case 750 (052) - TORQUE CONVERTOR PUMP ASSY. (03) - TRANSMISSION

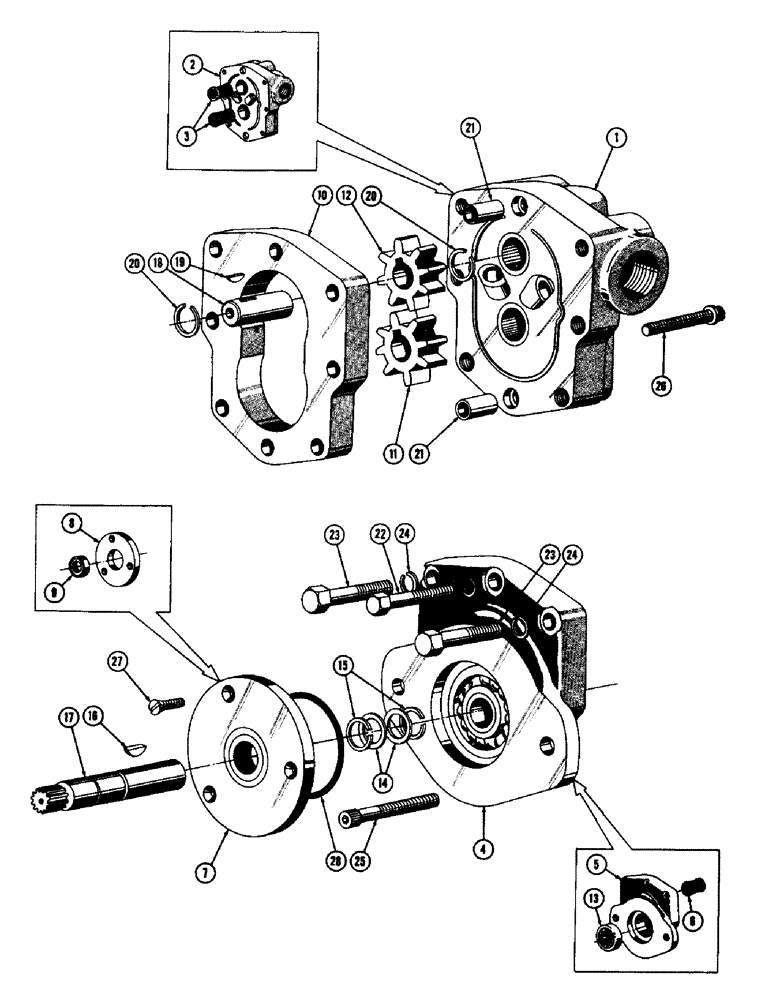

Схема запчастей Case 750 - (052) - TORQUE CONVERTOR PUMP ASSY. (03) - TRANSMISSION
3
27
23
4
22
18
8
2
12
24
28
20
13
19
6
15
11
7
1
21
17
21
14
5
23
9
10
24
26
25
20
16

Артикул

Название

Примечание

Количество

R21450

PUMP ASS'Y - convertor

1шт.

1

R22139

COVER ASS'Y - pump

1шт.

2

NSS

NOT SOLD SEPARAT

COVER - pump

1шт.

3

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

2шт.

4

R22140

BODY ASS'Y - pump

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

6

14228

NEEDLE BEARING,Needle, 19.05mm ID x 25.4mm OD x 19.05mm W

BEARING - needle

1шт.

7

R22141

PLATE ASS'Y - pilot

1шт.

8

NSS

NOT SOLD SEPARAT

PLATE - pilot

1шт.

9

R22149

SEAL

- oil

1шт.

R4412

KIT - gear

1шт.

10

R22150

PLATE - gear

1шт.

11

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

12

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

13

MT-2041-S

BEARING - ball

1шт.

14

14218

WASHER

WASHER

2шт.

15

14217

RING

- retaining

2шт.

16

126-109

WOODRUFF KEY,#3, 1/8" x 1/2", HT

1шт.

17

R22142

SHAFT - drive

1шт.

18

R22143

SHAFT

- idler

1шт.

19

126-106

WOODRUFF KEY,# 213, 1/8" x 3/8", HT

KEY - Woodruff

1шт.

20

R22144

RING - retaining

2шт.

21

R22145

DOWEL

2шт.

22

13-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

23

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

24

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

25

61-432

HEX SOC SCREW,1/4"-20 x 2"

SCREW, Hex Soc Hd, 1/4"-20 x 2"

1шт.

26

R22146

SCREW - counterbore

4шт.

27

171-212

SCREW,Sl Flat Hd, #10 - 24 x 5/8"

FHMC #10 - 24 x 5/8

3шт.

28

R22147

X

SEAL - "O" ring

1шт.
