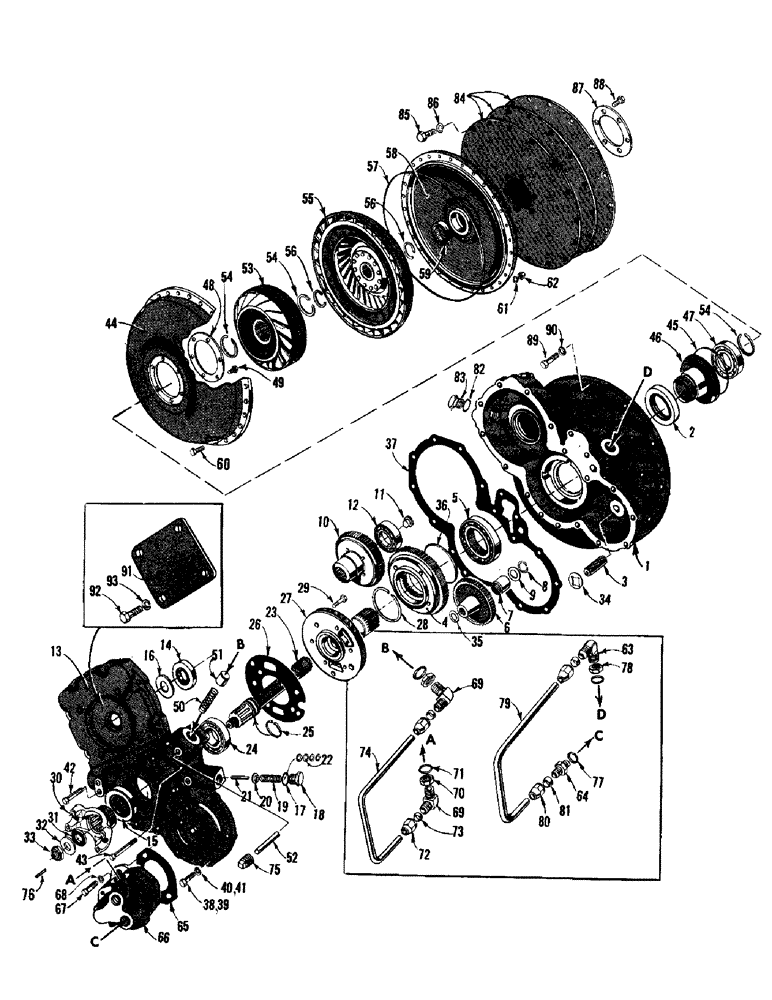

Запчасти Case 750 (048) - TORQUE CONVERTOR HOUSINGS, IMPELLER, SHAFTS, & BEARINGS (03) - TRANSMISSION

R20605

CONVERTOR ASS'Y - torque

1шт.

R21442

HOUSING & COVER ASS'Y - converter

1шт.

R21459

HOUSING ASS'Y - converter

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - converter

1шт.

2

R21466

SEAL

- oil

1шт.

3

R21465

SHAFT - pump driven gear

1шт.

R21460

GEAR

ASS'Y - pump drive

1шт.

4

R21467

GEAR - pump drive

1шт.

5

K1435P

BEARING - ball

1шт.

R21461

GEAR ASS'Y - pump driven

1шт.

6

R21468

GEAR - pump driven

1шт.

7

R22118

BEARING

- roller

1шт.

8

R22120

SNAP RING,1.312", Int, #131

Ring, Snap, 1.312", Int, #131

1шт.

9

R22119

WASHER

- thrust

1шт.

R21462

GEAR ASS'Y - pump driven

1шт.

10

R21470

GEAR

- pump driven

1шт.

11

R21471

BAFFLE - pump driven gear

1шт.

12

O4509-TF

BEARING - ball

1шт.

R21463

COVER ASS'Y - converter housing

1шт.

R21472

COVER ASS'Y - converter housing

1шт.

13

NSS

NOT SOLD SEPARAT

COVER - converter housing

1шт.

14

R21483

SEAL

- oil

1шт.

15

17431

OIL SEAL

- oil

1шт.

16

R22121

WASHER

- thrust

1шт.

17

NLS

NO LONGER SERVICED

- annular

1шт.

R21476

VALVE

ASS'Y - regulator

1шт.

18

R21520

SCREW - valve retainer

1шт.

19

R21521

SPRING

- regulator valve

1шт.

20

R21522

WASHER - regulator valve

1шт.

21

R21523

PIN - guide, regulator valve

1шт.

22

R22122

WASHER

4шт.

R21477

SHAFT ASS'Y - turbine output

1шт.

23

R21484

SHAFT

- turbine output

1шт.

24

O4059-TF

BEARING - ball

1шт.

25

R21485

RING

- piston

1шт.

26

R21478

GASKET

- collecter ring

1шт.

27

R21479

RING - collecter

1шт.

28

R21480

RING

- piston

1шт.

29

47641

SET OF BELTS

BOLT - place, 5/8-18 NF x 1-1/4

6шт.

30

R21481

YOKE

FITTING - yoke

1шт.

31

R21482

WASHER

- cork

1шт.

32

17438

WASHER

- plain

1шт.

33

131-581

LOCK NUT,3/4"-16

NUT - lock (3/4 - 16 NF)

1шт.

34

R22113

WASHER

- thrust

1шт.

35

R22114

WASHER

- thrust

1шт.

36

R21444

O-RING

SEAL - "O" ring

1шт.

37

R21464

GASKET

- converter cover

1шт.

38

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS 3/8 - 16 NC x 1-1/2 (R21463 mtg.)

7шт.

39

13-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 5

Hex, 7/16"-14 x 1 1/2, G5 (R21463 mtg.)

6шт.

40

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

41

92-7

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

6шт.

42

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS 3/8 - 16 NC x 2-3/4

2шт.

43

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

HHCS 3/8 - 16 NC x 3-1/2

3шт.

R21443

IMPELLER ASS'Y - converter

1шт.

44

R21486

IMPELLER - converter

1шт.

45

R21487

O-RING

SEAL - "O" ring

1шт.

46

R21488

HUB - impeller

1шт.

47

W10100-S

BEARING - ball

1шт.

48

R21489

PLATE - bearing retainer

1шт.

49

R21490

BOLT

- place, 5/16 - 24 NF x 7/8 (R21489 mtg.)

6шт.

50

R22116

SPRING - regulator valve

1шт.

51

R21474

VALVE - regulator

1шт.

52

R22117

X

PIN - retaining

1шт.

53

R21445

STATOR

- converter

1шт.

54

17404

X

RING - retaining

3шт.

55

R21446

TURBINE

ASS'Y - converter

1шт.

56

R21447

RING

- retaining

2шт.

57

17410

X

SEAL - "O" ring

1шт.

R14063

O-RING

SEAL - "O" ring (Optional to 17410)

1шт.

R21448

COVER ASS'Y - converter

1шт.

58

NSS

NOT SOLD SEPARAT

COVER - converter

1шт.

59

R21491

NEEDLE BEARING,1.75" ID x 2.125" OD x 0.75"

BEARING - needle, 1-3/4 in ID

1шт.

60

17412

BOLT

- special, 5/16 - 24 NF x 1-5/16

30шт.

61

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

30шт.

62

25-115

NUT,5/16"-24, G5

ELBOW - 90 degrees

1шт.

64

R22103

UNION

1шт.

65

R21449

GASKET

- converter pump

1шт.

66

R21450

PUMP ASS'Y - converter (See figure 52 for breakdown)

1шт.

67

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(R21450 mtg.) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

68

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

69

R21452

ELBOW - 90 degrees

2шт.

70

R21454

NUT - hex

2шт.

71

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

72

R21456

NUT - tube

2шт.

73

R21457

FERRULE - tube nut

2шт.

74

R21455

TUBE -, Serial Range: pump-converter

1шт.

75

17415

PLUG

- pipe, 1/8 NP

3шт.

76

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

77

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

78

R22104

NUT - lock

1шт.

79

R22105

TUBE

1шт.

80

R22106

NUT - tube

2шт.

81

R22107

FERRULE

2шт.

82

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O" ring

1шт.

83

273916

PLUG,Hex, 1-5/16" - 12 ORB

Drain Hex Hd, 1 5/16"-12 ORB

1шт.

84

R14953

PLATE

- drive

3шт.

85

R14979

SCREW

BOLT - special, 3/8 - 16 NC x 3/4 (R14953 mtg.)

16шт.

86

R14978

WASHER,9.91mm ID x 22.23mm OD x 1.52mm Thk

- drive plate

16шт.

87

R14952

RING - reinforcement

1шт.

88

R14980

BOLT - special, 7/16 - 14 NC x 3/4 (R14952 mtg.)

6шт.

89

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(R20607 mtg.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

12шт.

90

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

91

R21600

PLATE - cover, hyd. pump hole (Drawbar tractors only)

1шт.

92

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(R21600 mounting) Hex, 1/2"-13 x 1", G5, Full Thd

4шт.

93

92-8

LOCK WASHER,1/2"

4шт.
