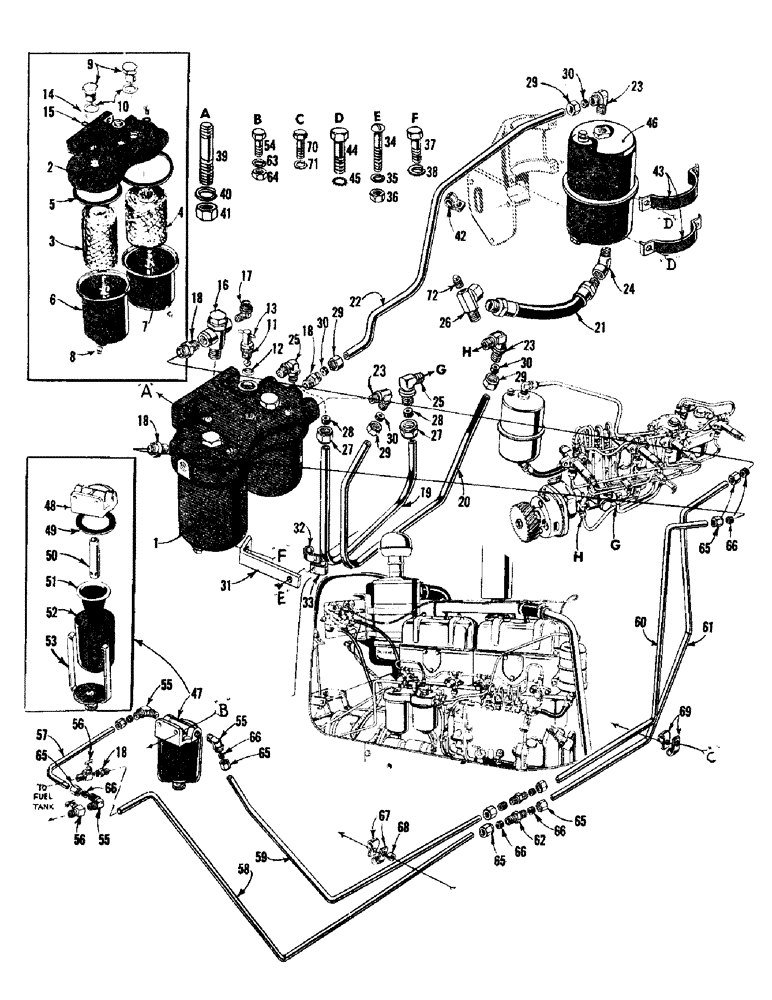

Запчасти Case 750 (028) - STRAINER, FILTERS, & FUEL LINES (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
A21133
FILTER
ASS'Y - first and second stage fuel
1шт.
2
A21077
FILTER HEAD
HEAD - filter
1шт.
3
A21141
FILTER, ELEMENT
ELEMENT - first stage filter (Inc. ref. #5)
1шт.
4
A7627
FILTER, ELEMENT
ELEMENT - second stage filter (Inc. ref. #5)
1шт.
5
O10345AB
X
GASKET - filter body
2шт.
6
A21129
BODY
- first stage filter
1шт.
7
A21132
BODY
- second stage filter
1шт.
8
211-11
BALL,3/8" Dia
PLUG - pipe, ext. sq. head, 1/8 NP
2шт.
9
A21131
NUT
- filter body
2шт.
10
O10344AB
X
GASKET - body, Serial Range: nut-head
2шт.
11
A21097
VALVE - fuel filter by-pass
1шт.
12
VT2983
X
SEAL - "O" ring, by-pass valve
1шт.
13
138-61
LOCK PIN,1/8" x 1", Slotted
PIN, 1/8" x 1", Slotted
1шт.
14
A20663
SCREW,Fil Hd, #10 - 32 x 5/16"
- bleed
2шт.
15
A20662
GASKET
- bleed screw
2шт.
16
A20637
LOCK VALVE
VALVE - relief
1шт.
17
222-42
ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF
- 90 degrees, 1/4 to 1/8 PT
1шт.
18
222-25
HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut
CONNECTOR - straight, 5/16 to 1/4 PT
4шт.
19
A20650
TUBE
- first stage filter to fuel pump (Inc. ref. #27 & 28)
1шт.
20
A20651
TUBE
- fuel pump to second stage filter (Inc. ref. #29 & 30)
1шт.
21
A20538
FUEL HOSE,0.38" ID x 8.50"
Final filter to fuel pump 0.38" ID x 8.50"
1шт.
22
A20655
TUBE - 2nd stg. to final filter (Inc. ref. #29 & 30)
1шт.
23
222-45
ELBOW,90 Degree, 9/16"-24 Fem x 1/4"-27 NPTF
- 90 degrees 5/16 to 1/4 PT
3шт.
24
217-21
ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male
- 90 degrees street, 1/4 NP
1шт.
26
A20539
FITTING
UNION - adapter, 90 degrees
1шт.
27
222-114
NUT,5/8"-24
NUT - 3/8
2шт.
28
222-104
SLEEVE,3/8" Tube
- 3/8
2шт.
29
221-113
NUT - 5/16
4шт.
30
222-103
SLEEVE,5/16" Tube
4шт.
31
A20656
BRACKET - first and second stage filter tube clip
1шт.
32
A20688
CLIP
- tube
1шт.
33
O9649AB
CLIP - tube
1шт.
34
75-412
SCREW,Rd, 1/4" x 3/4"
RHMS - 1/4 - 20 NC x 3/4 (A20656 mtg.)
1шт.
35
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
1шт.
36
25-104
NUT,1/4"-20, G5
1шт.
37
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
(A20656 mtg.) Hex, 5/16"-18 x 3/4", G5, Full Thd
1шт.
38
92-5
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
39
O1579AB
STUD - filter head to cylinder block
2шт.
40
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
41
25-116
NUT,Hex, 3/8"-24, G5
- reg. SF hex (3/8 - 24 NF)
2шт.
42
A7922
CLIP
- for A20655 tube
1шт.
43
A21144
CLAMP
- final filter
2шт.
44
13-516
BOLT,Hex, 5/16" - 18 x 1", Gr 5
(A21144 mtg.) Hex, 5/16"-18 x 1", G5, Full Thd
4шт.
45
193-45
WASHER,Ext-Int Tooth, 5/16"
- lock, internal Shakeproof
4шт.
46
O9985AB1
FILTER - final stage fuel
1шт.
47
R18798
STRAINER ELEMENT
STRAINER ASS'Y - fuel
1шт.
48
R21356
HOUSING
BODY - strainer
1шт.
49
R21357
GASKET
- strainer
1шт.
50
R21360
TUBE,0.687" DIA x 3.344" L
- strainer
1шт.
51
R21359
FILTER SCREEN
SCREEN ASS'Y - strainer
1шт.
52
R21361
BOWL
- strainer
1шт.
53
R21358
CLAMP
BALE ASS'Y - strainer
1шт.
54
14-416
SCREW,Hex, 1/4" - 28 x 1", Gr 5
BOLT, Hex, 1/4"-28 x 1, G5, Full Thd (R18798 mtg.)
2шт.
56
217-94
SHUT-OFF VALVE
SHUT-OFF COCK - fuel
2шт.
57
R20286
TUBE - fuel line
1шт.
58
R20287
TUBE - fuel line
1шт.
59
R20288
TUBE - fuel line
1шт.
60
R20444
TUBE - fuel line
1шт.
61
R20443
TUBE - fuel line
1шт.
62
222-5
FITTING,5/8"-24 Flex Tube
UNION - flex tube
2шт.
63
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
64
25-114
NUT,1/4"-28, G5
- reg. SF hex (1/4 - 28 NF)
2шт.
65
222-664
TUBE NUT,9/16"-24, 45 Degree Fl, Comp
NUT - flex
10шт.
66
222-654
FERRULE,3/8" Tube, Comp
- flex
10шт.
67
49837
CLAMP
- tube
2шт.
68
35335
SPACER - tube clamp
1шт.
69
515-2295
CLAMP,3/8", Insul, 5/16" Bolt
- tube
2шт.
70
14-514
BOLT,Hex, 5/16" - 24 x 7/8", Gr 5, Full Thd
(49852 mtg.) Hex, 5/16"-24 x 7/8", G5, Full Thd
1шт.
71
92-5
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
72
221-831
PLUG
- pipe, ext. sq. hd., 1/8 NP
1шт.
Выбрано товаров: 72
