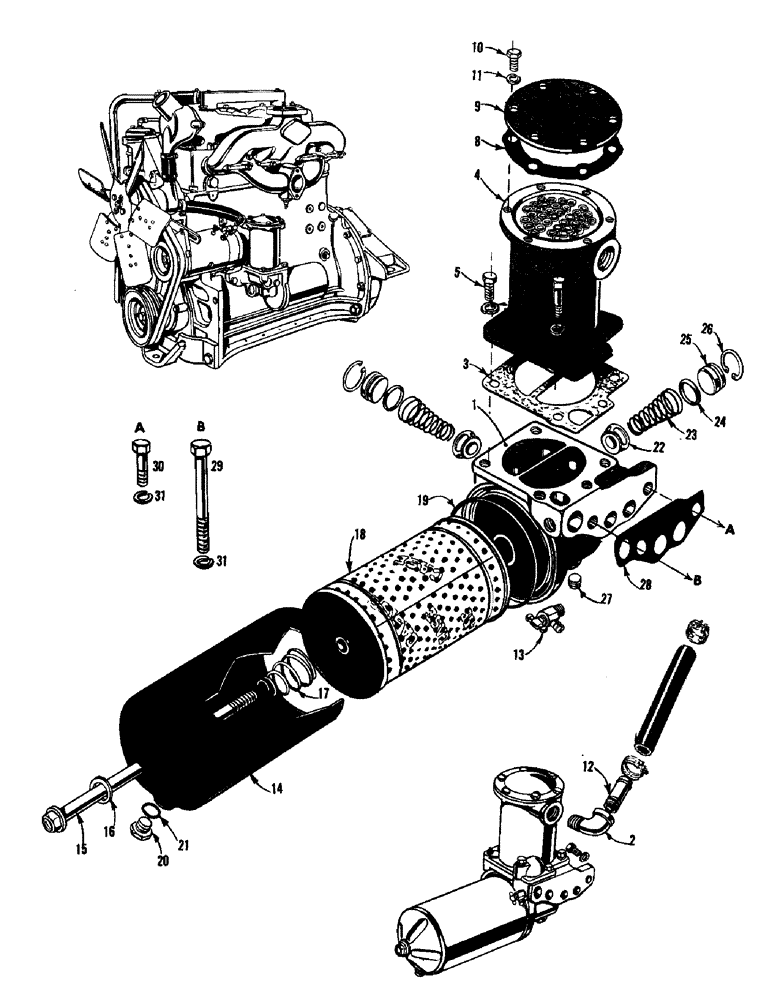

Запчасти Case 750 (026) - FULL FLOW FILTER & OIL COOLER (02) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
A21128
FILTER AND COOLER ASS'Y - full flow oil
1шт.
1
A21083
BASE - lube oil filter and cooler
1шт.
2
221-1415
ELBOW,90 Degree, 3/4"-14, NPT
- 90 degrees street, 3/4 NP
1шт.
3
A21087
GASKET
- lube oil cooler, lower flange
1шт.
4
A21086
COOLER ASSY.
COOLER - lube oil
1шт.
5
13-616
BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd
(A21086 mtg.) Hex, 3/8"-16 x 1", G5, Full Thd
4шт.
6
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
(A21086 mtg.) Hex, 3/8"-16 x 1 3/4", G5
1шт.
7
92-6
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
5шт.
8
A21088
GASKET
- lube oil cooler cap
1шт.
9
A23030
CAP
- lube oil cooler
1шт.
10
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
(A21089 mtg.) Hex, 5/16"-18 x 3/4", G5, Full Thd
6шт.
11
92-5
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
6шт.
12
A16529
NIPPLE, LUBE
NIPPLE - oil, Serial Range: cooler-hose
1шт.
13
O9739AB
X
VALVE - drain, filter base
1шт.
A20828
FILTER ASS'Y - lube oil
1шт.
14
A20824
SHELL
- filter
1шт.
15
A20825
PIPE
STAND PIPE - filter
1шт.
16
A20426
GASKET
- stand pipe
1шт.
17
A20427
VALVE SPRING
SPRING - filter
1шт.
A20822
ENGINE OIL FILTER
KIT - filter element
1шт.
18
NSS
NOT SOLD SEPARAT
ELEMENT - filter
1шт.
19
A20429
GASKET
- filter element
1шт.
20
A20826
PLUG
- filter drain
1шт.
21
A20827
GASKET - drain plug
1шт.
23
A21091
VALVE SPRING
SPRING - oil filter relief valve
2шт.
24
O8377AB
X
SEAL - "O" ring, filter base
2шт.
25
A21092
PLUG - oil filter relief valve spring
2шт.
26
A21145
SNAP RING,1.25, Int, #125
Ring, Snap, 1.25", Int, #125, oil filter relief valve
2шт.
27
221-12
PLUG,Sq Hd, 1/4"-18
- pipe, sq. hd., 1/4 NP
1шт.
28
A21084
GASKET
- filter base
1шт.
29
15-888
BOLT
HHCS 1/2 - 13 NC x 5-1/2 (A21128 mtg.)
1шт.
30
13-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd
(A21128 mtg.) Hex, 1/2"-13 x 1 1/2", G5, Full Thd
1шт.
31
92-8
LOCK WASHER,1/2"
2шт.
Выбрано товаров: 34
