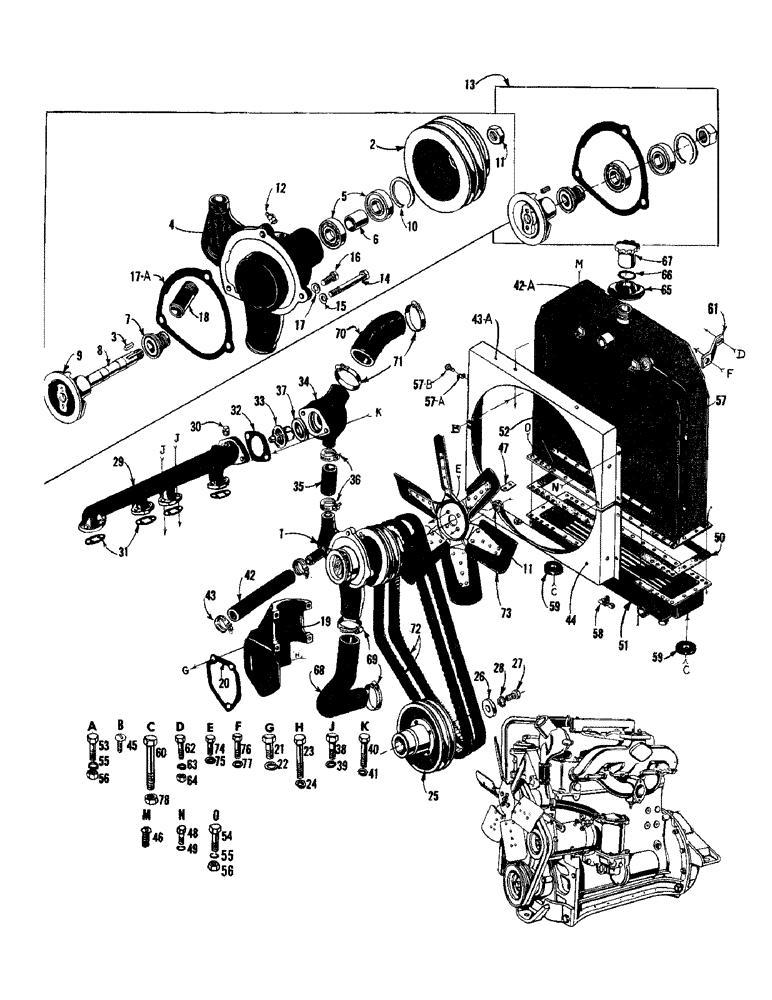

Запчасти Case 750 (032) - WATER PUMP, RADIATOR & FAN (01) - ENGINE

1

A22606

PUMP AND PULLEY ASS'Y - water

1шт.

2

A22860

X

PULLEY - fan

1шт.

3

A21075

KEY

- fan pulley

1шт.

A22570

X

PUMP ASS'Y - water

1шт.

4

A22571

BODY - water pump

1шт.

5

A21045

BALL BEARING,19.99mm ID x 47mm OD x 14mm W

BEARING - water pump

2шт.

6

A21046

X

SPACER - bearing

1шт.

7

09799A

SEAL - water pump

1шт.

8

A21044

SHAFT

- water pump

1шт.

9

6327A

IMPELLER - water pump

1шт.

10

A22572

SNAP RING,1.85", Int, #185

Ring, Snap, 1.85", Int, #185

1шт.

11

131-580

LOCK NUT,5/8"-18

NUT - flex

1шт.

12

219-54

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degrees x 1/8 NP

1шт.

13

A22831

KIT

- water pump repair

1шт.

14

15-652

X

HHCS - 3/8 - 16 NC x 3-1/4 (A22606 mtg.)

1шт.

15

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

16

13-634

BOLT,Hex, 3/8" - 16 x 2-1/8", Gr 5

(A22606 mtg.) Hex, 3/8"-16 x 2 1/8", G5

2шт.

17

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17a

A22600

GASKET

- water pump, Serial Range: body-adapter

1шт.

18

A16529

NIPPLE, LUBE

NIPPLE - pipe, water pump

1шт.

19

A22583

ADAPTER

- water pump, and final stage filter bracket

1шт.

20

A22601

GASKET - water pump, Serial Range: adapter-block

1шт.

21

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

(A22583 mtg.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

22

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

23

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(A22583 mtg.) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

1шт.

24

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

25

A22581

PULLEY - fan drive

1шт.

26

09803AB

WASHER - lower fan pulley

1шт.

27

O10282AB

X

BOLT - lower fan drive pulley

1шт.

28

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

29

A21031

MANIFOLD

- water

1шт.

30

221-13

PLUG,Sq Hd, 3/8"-18

- pipe, ext. sq. head, 3/8 NP

1шт.

31

O9804AB1

X

GASKET - water manifold

4шт.

32

A21035

GASKET

- thermostat housing

1шт.

33

A21033

THERMOSTAT

1шт.

34

A21032

HOUSING - thermostat

1шт.

35

A23110

HOSE,1.25" ID x 3.25", SAE 20R2 Class R

SAE 20R4 Class R Grade 2 - Water by-pass 1.25" ID x 3.25", SAE 20R2 Class R

1шт.

36

214-18

CLAMP

- hose

2шт.

37

A21034

SEAL

SEAL - thermostat

1шт.

38

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16 - 18 NC x 1-1/4 (A21031 mtg.)

8шт.

39

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

40

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(A21032 mtg.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

41

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

42

A21093

HOSE,9.75", SAE 20R4

1.00" ID x or SAE 20R2 Oil Cooler to Water Pump 9.75", SAE 20R4

1шт.

43

214-14

X

CLAMP - hose

2шт.

R21831

RADIATOR ASS'Y

1шт.

42a

R22021

TANK & CORE ASS'Y - top

1шт.

R22022

X

SHROUD ASS'Y - radiator

1шт.

43a

R22025

SHROUD - top

1шт.

44

R22026

SHROUD - bottom

1шт.

45

75-46

SCREW

RHMS 1/4 - 20 NC x 3/8

2шт.

46

75-46

SCREW

RHMS 2/4 - 20 NC x 3/8

4шт.

47

R22013

CLIP - shroud mtg., bottom

2шт.

48

13-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

8шт.

49

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

50

72773

FLEXIBLE HOSE

- core

2шт.

51

R22023

TANK & OIL COOLER ASS'Y - bottom

1шт.

52

R22015

WASHER - core

2шт.

53

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

32шт.

54

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

8шт.

55

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

40шт.

56

9635082

NUT,5/16" - 18, Gr 5

- reg. SF hex (5/16 - 18 NC)

40шт.

57

R22024

HOSE - rubber, overflow

1шт.

57a

R22017

CLIP - hose mtg.

2шт.

57b

R18946

SCREW - drive, #20 x 3/8

2шт.

58

217-92

COCK

DRAIN COCK - radiator water

1шт.

59

70198

WASHER

- vibration

2шт.

60

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

HHCS 1/2 - 20 NF x 1-3/4 (R20602 mtg.)

2шт.

61

R20630

STRAP - radiator support

2шт.

62

14-68

BOLT,Hex, 3/8" - 24 x 1/2", Gr 5

HHCS 3/8 - 24 NF x 1/2 (R20630 mtg.)

2шт.

63

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

64

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

2шт.

65

R14780

GROMMET

- radiator cap

1шт.

66

R20523

GASKET - radiator cap

1шт.

67

R20513

CAP - radiator

1шт.

68

R17766

HOSE,2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

Water Pump 2.00" ID x 10.69", SAE 20R4 Class C D1 Or D2

1шт.

69

49763

X

CLAMP - hose

2шт.

70

R17765

HOSE,2.50" ID x 2.63", SAE 20R4 CLASS SC

- inlet 2.50" ID x 2.63", SAE 20R4 CLASS SC

1шт.

71

49764

WOOD BLOCK

CLAMP - hose

2шт.

72

R19920

BELT,0.69" W x 50.38" L

Fan (Incl. two belts) 0.69" W x 50.38" L

1шт.

73

R19600

BLADE - fan, suction (Drawbar and dozer tractors)

1шт.

R19599

BLADE - fan, pusher (Loader tractors)

1шт.

74

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(R19600 or R19599 mtg.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

75

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

76

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS 3/8 - 24 NF x 1 (R20630 mtg.)

2шт.

77

195-26

WASHER

WASHER - plain

2шт.

78

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF)

2шт.
