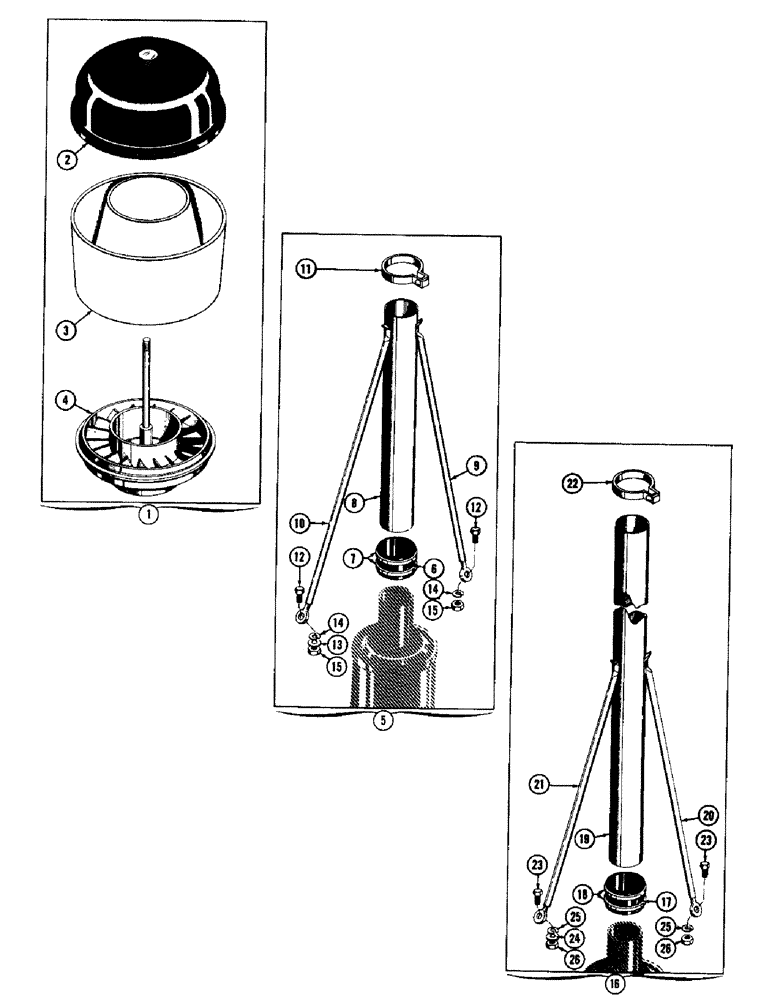

Запчасти Case 750 (024) - AIR CLEANER EXTENSIONS, PRE-CLEANERS (01) - ENGINE

1

A64589

PRECLEANER

PRE-CLEANER ASS'Y (Optional equipment)

1шт.

2

73187

COVER

ASS'Y - pre-cleaner

1шт.

3

73186

HOUSING

BODY - pre-cleaner

1шт.

4

73185

SLEEVE

ASS'Y - pre-cleaner

1шт.

5

R3982

EXTENSION - 36" air inlet (Optional equipment)

1шт.

6

73149

HOSE

- air inlet extension

1шт.

7

49764

WOOD BLOCK

CLAMP - hose

2шт.

8

73157

RING,2.50" OD, 36" Length

TUBE - air inlet extension

1шт.

9

R19699

BRACE - RH

1шт.

10

R19698

BRACE - LH

1шт.

11

R19705

CLAMP - brace mtg.

1шт.

12

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8 - 24 NF x 1-1/4 (R19699 & R19698 mtg.)

2шт.

13

195-25

WASHER,3/8"

2шт.

14

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex. (3/8 - 24 NF)

2шт.

16

R3983

EXTENSION - 60" air inlet (Optional equipment)

1шт.

17

73149

HOSE

- air inlet extension

1шт.

18

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP - hose

2шт.

19

R19706

TUBE - air inlet extension

1шт.

20

R19699

BRACE - RH

1шт.

21

R19698

BRACE - LH

1шт.

22

R19705

CLAMP - brace mtg.

1шт.

23

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

HHCS - 3/8 - 24 NF x 1-1/4 (R19699 & R19698 mtg.)

2шт.

24

195-25

WASHER,3/8"

2шт.

25

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

26

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

2шт.
