Запчасти Case 750 (022) - MANIFOLD, MUFFLER, & AIR CLEANER (01) - ENGINE

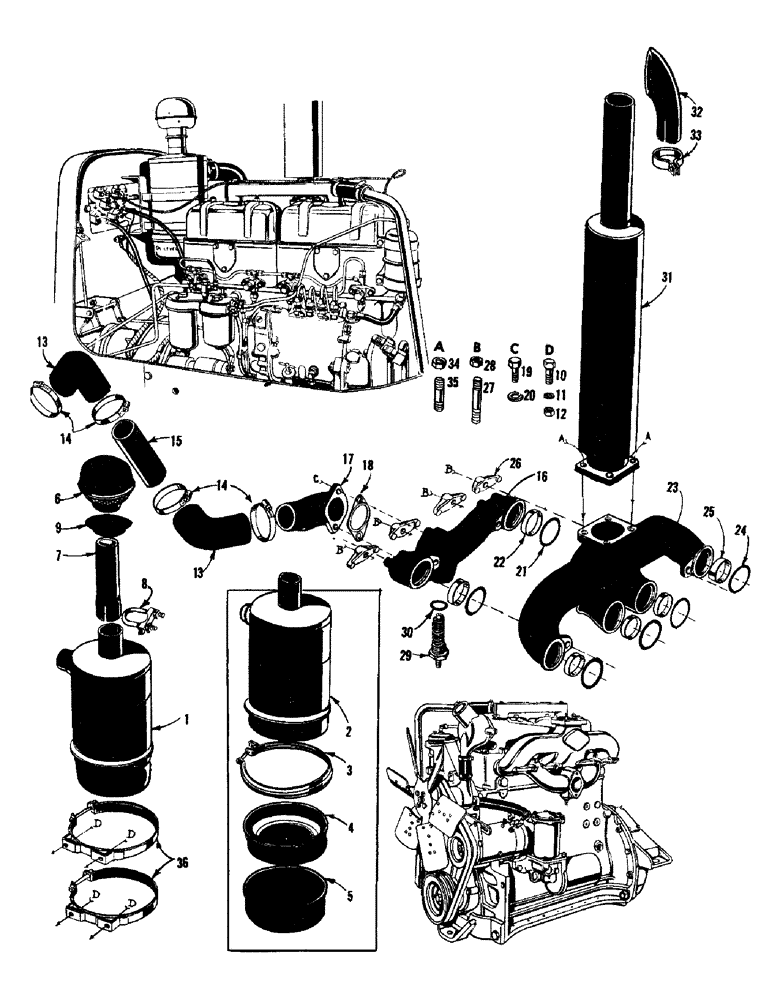

Схема запчастей Case 750 - (022) - MANIFOLD, MUFFLER, & AIR CLEANER (01) - ENGINE
19
8
9
22
13
18
26
20
24
5
35
32
21
4
25
1
16
7
13
33
11
31
36
17
30
3
29
28
6
12
2
14
14
15
10
23
34
27

Артикул

Название

Примечание

Количество

1

R19946

AIR CLEANER ASS'Y

1шт.

2

R21390

BODY ASS'Y - air cleaner

1шт.

3

R21391

CLAMP

ASS'Y - air cleaner

1шт.

4

R21392

CUP ASS'Y - inner

1шт.

5

R21393

CUP ASS'Y - outer

1шт.

6

70974

CAP - air cleaner

1шт.

7

74767

ARTICULATION

STACK - air cleaner

1шт.

8

74768

X,2-1/2" ID

CLAMP

1шт.

9

R14780

GROMMET

- air cleaner stack

1шт.

10

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

(70973 mtg.) Hex, 5/16"-24 x 3/4", G5, Full Thd

4шт.

11

92-5

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

12

25-115

NUT,5/16"-24, G5

- reg. SF hex (5/16"-24 NF)

4шт.

13

R19215

HOSE

- elbow

2шт.

14

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP - hose

4шт.

15

R20445

TUBE - air cleaner

1шт.

16

A21005

MANIFOLD - intake

1шт.

17

A21007

ELBOW - intake manifold

1шт.

18

A21055

MANIFOLD GASKET

- intake manifold elbow

1шт.

19

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(A21007 mtg.) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

2шт.

20

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

21

A21054

MANIFOLD GASKET

- intake manifold

2шт.

22

A21053

BUSHING,55.5mm ID x 57.15mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

23

A21008

MANIFOLD

- exhaust

1шт.

24

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

25

A21056

CAP

FERRULE - exhaust manifold

4шт.

26

O9816AB

CLAMP - intake and exhaust manifold

4шт.

27

O9817AB

X

STUD - manifold clamp

4шт.

28

25-117

NUT,7/16"-20, G5

- reg. SF hex (7/16 - 20 NF)

4шт.

29

120917

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/2", Gr 5

PLUG - intake manifold heater

1шт.

30

A20916

MANIFOLD GASKET

GASKET - intake manifold heater plug

1шт.

31

R20695

X

MUFFLER - exhaust

1шт.

32

R20143

PIPE CLAMP

PIPE - bent, muffler

1шт.

33

74768

X,2-1/2" ID

CLAMP ASS'Y - muffler pipe

1шт.

34

R14386

NUT

- light SF hex

4шт.

35

O5171AB

STUD - muffler mounting

4шт.

36

70973

BRACKET

- air cleaner mounting

2шт.

Выбрано товаров: 36
