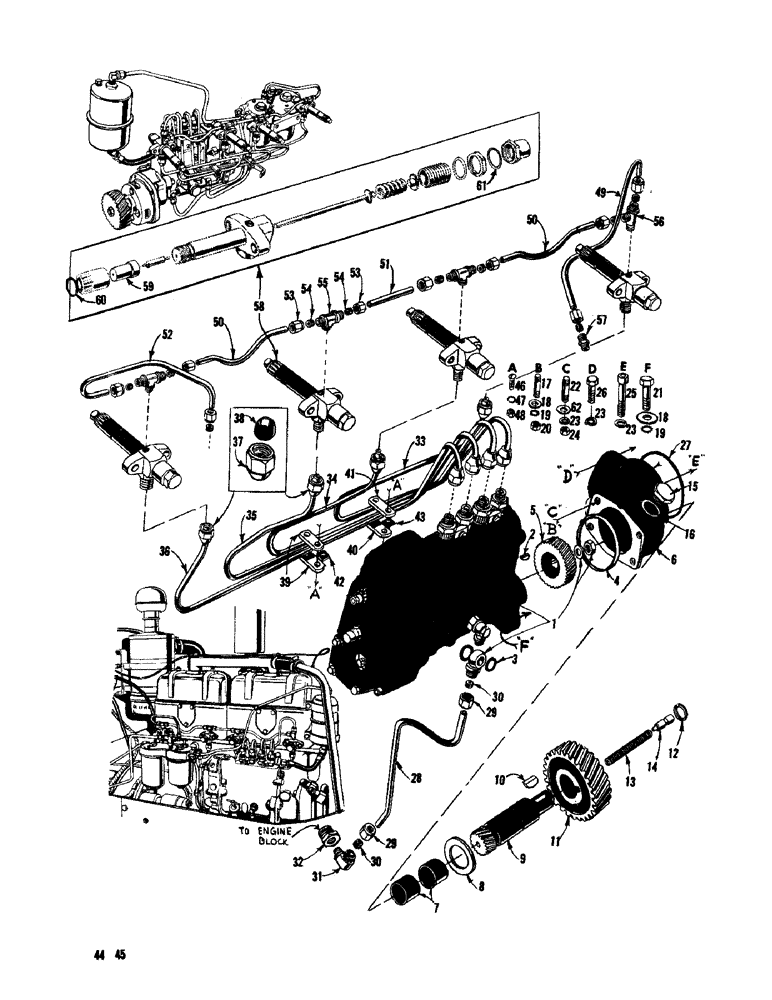

Запчасти Case 750 (020) - FUEL INJECTION PUMP, NOZZLES, & TUBES (01) - ENGINE

1

A22605

PUMP - fuel injection (Robert Bosch #PES-4A-85B-420LS-445/11)

1шт.

2

A20933

KEY

- Woodruff, fuel pump shaft

1шт.

3

A22381

WASHER

- copper, lube oil drain

2шт.

4

A20529

O-RING,2.598" ID x 2.834" OD

SEAL - "O" ring, fuel pump to housing

1шт.

5

A21139

GEAR

- fuel pump drive

1шт.

A21136

HOUSING ASS'Y - fuel pump drive

1шт.

6

NSS

NOT SOLD SEPARAT

HOUSING - fuel pump drive

1шт.

7

NSS

NOT SOLD SEPARAT

BUSHING

2шт.

8

O9745AB

X

WASHER - thrust, fuel pump drive shaft

1шт.

9

A20622

GEAR

SHAFT AND PINION - fuel pump drive

1шт.

10

126-66

WOODRUFF KEY

KEY - Woodruff

1шт.

11

A20899

GEAR WHEEL

GEAR - fuel pump drive

1шт.

12

O9016AB

X

RING - snap, fuel pump drive shaft

1шт.

13

O9726AB

X

SPRING - thrust plunger

1шт.

14

O9725AB

X

PLUNGER - thrust, fuel pump drive

1шт.

15

A21140

PLUG

- timing window

1шт.

16

O9892AB

STUD

GASKET - timing window plug

1шт.

17

A20664

STUD - fuel pump

2шт.

18

195-25

WASHER,3/8"

4шт.

19

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

4шт.

20

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

2шт.

21

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8 - 16 NC x 1-1/2 (A22605 mtg.)

2шт.

22

O1579AB

STUD - fuel pump, Serial Range: hsg.-block

1шт.

23

92-6

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

24

25-116

NUT,Hex, 3/8"-24, G5

- reg. SF hex (3/8 - 24 NF)

1шт.

25

61-620

HEX SOC SCREW,3/8"-16 x 1 1/4"

SHCS 3/8 - 16 NC x 1-1/4 (A21136 mtg.)

1шт.

26

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(A21136 mtg.) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

27

O8861AB

X

SEAL - "O" ring, drive housing

1шт.

28

A21786

TUBE - oil gallery to fuel pump

1шт.

29

87017024

TUBE NUT,1/2"-24

NUT - 1/4" fitting

2шт.

30

222-102

SLEEVE,1/4" Tube

2шт.

31

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

- 90 degrees, 1/4 flex to 1/8 NP

1шт.

32

221-1052

PLUG

BUSHING - pipe, reducing, 3/8 NP to 1/8 NP

1шт.

33

A20501

TUBE

- fuel injector (#1 cylinder) (Inc. ref. #37 & #38)

1шт.

34

A20502

TUBE

- fuel injector (#2 cylinder) (Inc. ref. #37 & #38)

1шт.

35

A20503

TUBE

- fuel injector (#3 cylinder) (Inc. ref. #37 & #38)

1шт.

36

A20504

TUBE

- fuel injector (#4 cylinder) (Inc. ref. #37 & E39)

1шт.

37

O9968AB

NUT - injector tube

8шт.

38

O9967AB

X

SLEEVE - injector tube nut

8шт.

39

O9969AB

X

CLAMP - injector tube

1шт.

40

O10318AB

X

CLAMP - injector tube

1шт.

41

O10318AB

X

CLAMP - injector tube

1шт.

42

O9972AB

X

CUSHION - injector tube (For 09969AB clamps)

2шт.

43

O10319AB

X

CUSHION - injector tube (For 010318AB clamps)

2шт.

44

RESERVED

1шт.

45

RESERVED

1шт.

46

173-102

SCREW,Sl Rnd Hd, #10 - 24 x 1"

RHMS #10 NC x 1 (09969AB & 010318AB mtg.)

4шт.

47

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

4шт.

48

129-7

NUT,Hex, #10 - 24

- hex (#10 NC)

4шт.

49

A20647

TUBE - leak-off, from pump to #1 injector

1шт.

50

O9978AB

X

TUBE - injector leak-off

2шт.

51

A20162

TUBE

- injector leak-off

1шт.

52

A20638

TUBE - leak-off, from #4 nozzle to relief valve

1шт.

53

87017024

TUBE NUT,1/2"-24

NUT - 1/4 fitting

10шт.

54

222-102

SLEEVE,1/4" Tube

Nut 1/4" Tube

10шт.

55

222-72

TEE,1/4" Flex Tube Run x 1/8" NPTF Br

- 1/4" x 1/8 NP

3шт.

56

222-62

TEE,1/2"-24 Fem Run x 1/2"-24 Male x 1/8" NPT Br

- 1/4" x 1/8 NP

1шт.

57

O10604AB

X

CONNECTION - fuel pump leak-off check valve

1шт.

58

A8013

NOZZLE INJECTION

NOZZLE - injector

4шт.

59

O9845AB

X

NOZZLE - injector

1шт.

60

O9847AB

X

GASKET - injector nozzle

1шт.

61

O10618AB

X

GASKET - adjusting screw protective cap

1шт.
