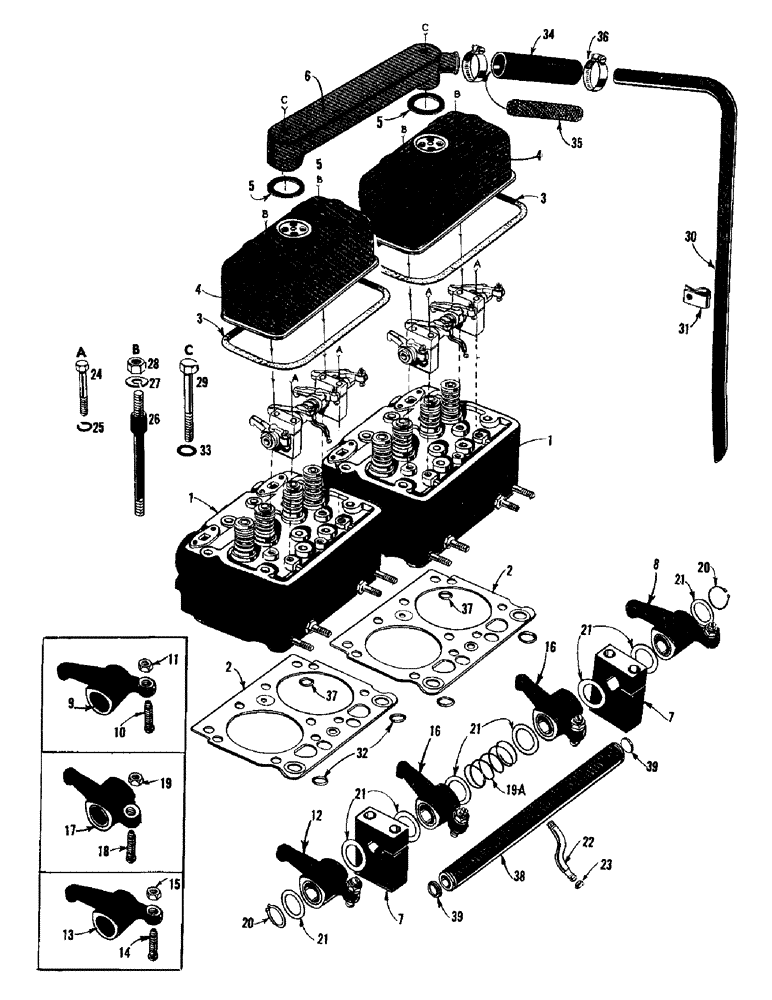

Запчасти Case 750 (016) - CYLINDER HEAD, ROCKER ARMS, & ROAD DRAFT TUBE - DIESEL (01) - ENGINE

1

A20882

HEAD ASSY - cylinder (With valves), Serial Range: (Optional-A21022)

2шт.

A21022

HEAD

ASSY - cylinder (Stripped)

2шт.

NSS

NOT SOLD SEPARAT

HEAD - cylinder

1шт.

REF

INSTRUCTION

KIT - insert (See figure # 14, ref. #25)

1шт.

REF

INSTRUCTION

KIT - exhaust valve guide (See figure # 14, ref. #22)

1шт.

REF

INSTRUCTION

KIT - intake valve guide (See figure #14, ref. #20)

1шт.

REF

INSTRUCTION

PLUG - cup (1-5/8 dia.) (See figure # 14, ref. #47)

2шт.

2

A21059

GASKET

2шт.

3

O9959AB

X

GASKET - cylinder head cover (See A22830 gasket kit)

2шт.

4

A22567

COVER - cylinder head

2шт.

5

A22587

SPARE PART Breather manifold

2шт.

6

A22588

BRACKET

MANIFOLD - cylinder head breather

1шт.

7

O9773AB

SPARE PART BRACKET - rocker arm shaft

4шт.

8

A22326

ROCKER

ARM ASSY - exhaust rocker (#2 & #4 cylinders)

2шт.

9

NSS

NOT SOLD SEPARAT

ROCKER ARM - exhaust

1шт.

10

A21205

SCREW - rocker arm

1шт.

11

25-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

12

A22324

ROCKER

ARM ASSY - exhaust rocker (#1 & #3 cylinders)

2шт.

13

NSS

NOT SOLD SEPARAT

ROCKER ARM - exhaust

1шт.

14

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

Rocker arm

1шт.

15

25-156

JAM NUT,Jam, 3/8"-24, G5

1шт.

16

A22322

ROCKER

ARM ASSY - inlet rocker

4шт.

17

NSS

NOT SOLD SEPARAT

ROCKER ARM - inlet

1шт.

18

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

Rocker arm

1шт.

19

25-156

JAM NUT,Jam, 3/8"-24, G5

Hex

1шт.

19a

O9769AB

X

SPRING - rocker arm shaft

2шт.

20

O3658CH

X

RING - snap, rocker arm shaft

4шт.

21

O9770AB

X

WASHER - rocker arm shaft

1шт.

22

O9771AB

X

TUBE - oil, rocker arm shaft

2шт.

23

O9772AB

X

SEAL - "O" ring, rocker arm shaft oil tube

2шт.

24

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

(09773AB mtg.)

4шт.

25

92-7

LOCK WASHER,7/16"

4шт.

26

O10732AB

SPARE PART STUD - rocker arm shaft bracket

4шт.

27

92-7

LOCK WASHER,7/16"

4шт.

28

25-117

NUT,7/16"-20, G5

Reg. SF hex

4шт.

29

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT (A22588 mtg.)

2шт.

30

R20609

TUBE - engine breather

1шт.

31

R14668

CLAMP

1шт.

32

A7669

RING

Rubber, cylinder head gasket

4шт.

33

O789AB

GASKET

WASHER - copper, cylinder head cover

2шт.

34

R20608

SPARE PART Engine breather

1шт.

35

R17265

SPARE PART Breather tube

1шт.

36

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

Hose, CLIP - tube retaining

2шт.

37

O8569AB

X

SEAL - "O" ring, cylinder head gasket oil passage

2шт.

38

A22320

SPARE PART SHAFT ASSY - rocker arm

2шт.

39

A22318

SPARE PART Rocker arm shaft

2шт.
