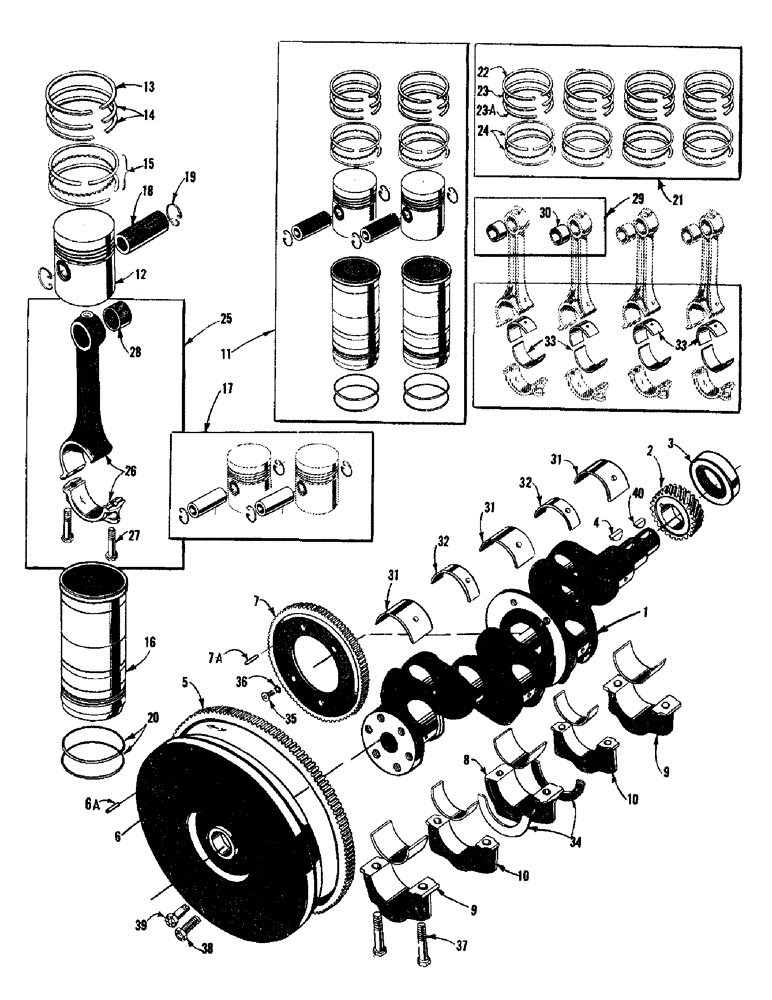

Запчасти Case 750 (012) - CRANKSHAFT, FLYWHEEL, & CONNECTING RODS - DIESEL (01) - ENGINE

1

A22578

SPARE PART

1шт.

2

O9707AB

X

GEAR - crankshaft

1шт.

3

REF

INSTRUCTION

SEAL - oil, c/shaft front (See figure 6, ref. #15)

1шт.

4

O8651AB

X

KEY - Woodruff

1шт.

A22573

SPARE PART FLYWHEEL ASS'Y

1шт.

5

O9830AB

X

GEAR - ring, flywheel

1шт.

6

NSS

NOT SOLD SEPARAT

FLYWHEEL

1шт.

6a

O9710AB

SPARE PART PIN - dowel, flywheel timing mark

1шт.

7

A22576

GEAR

ASSY - balance drive

1шт.

7a

A8134

PIN

Dowel, balance drive gear

1шт.

8

6303A

SPARE PART CAP - c/shaft thrust bearing

1шт.

9

6301A

SPARE PART CAP - c/shaft bearing, wide

2шт.

10

A6302A

X

CAP - c/shaft bearing, narrow

2шт.

11

A20851

X

KIT - cylinder sleeve with pistons, pins, rings

2шт.

12

A20730

PISTON

2шт.

13

REF

INSTRUCTION

RING - piston, top groove (See ref. #21)

2шт.

14

REF

INSTRUCTION

RING - piston, second and third grooves (See ref. #21)

4шт.

15

REF

INSTRUCTION

RING - piston, oil (See ref. #21)

2шт.

16

A21001

X

SLEEVE - cylinder

2шт.

17

A21725

KIT

Piston pin and retainers

1шт.

18

A21015

PIN

Piston

2шт.

19

A21016

RING, SNAP

RING SNAP Piston pin retainer

4шт.

20

O8861AB

X

SEAL - "O" ring, cylinder sleeve packing

4шт.

21

A20856

PISTON RING SET

1шт.

22

A20731

SPARE PART Piston, top groove (Order #R20856)

4шт.

23

A20732

RING,101.78mm ID x 111.13mm OD x 2.37mm Thk

Piston, second groove (Order #R20856)

4шт.

23a

A20855

RING - piston, third groove (Order #R20856)

4шт.

24

A20733

X

RING ASSY - piston, oil (Order #R20856)

4шт.

25

A21064

EXCHANGE CONROD

ASSY

4шт.

26

A21010

CONNECTING ROD AND CAP (Order #A21064)

1шт.

27

O9718AB

X

SCREW - connecting rod

2шт.

28

REF

INSTRUCTION

BUSHING - piston pin (See ref. #29)

1шт.

29

A21722

BUSHING

KIT - piston pin bushing

2шт.

30

A21069

BUSHING,37.63mm ID x 43mm OD x 34.8mm L

Piston pin (Order #A21722)

2шт.

31

4706AA

X

BEARING - c/shaft main, wide (Upper and lower) (Std. size)

3шт.

A7182

KIT

BEARING - c/shaft main, wide (Upper and lower) (.002" undersize) (Optional)

3шт.

A7188

BEARING LINER

BEARING - c/shaft main, wide (Upper and lower) (.010" undersize) (Optional)

3шт.

A7194

KIT

BEARING - c/shaft main, wide (Upper and lower) (.020" undersize) (Optional)

3шт.

A7200

KIT

BEARING - c/shaft main, wide (Upper and lower) (.030" undersize) (Optional)

3шт.

32

A20394

LINING

BEARING - c/shaft main, narrow (Upper and lower) (Std. size)

2шт.

A20579

LINING

BEARING - c/shaft main, narrow (Upper and lower) (.002" undersize) (Optional)

2шт.

A20582

LINING

BEARING - c/shaft main, narrow (Upper and lower) (.010" undersize) (Optional)

2шт.

A20585

KIT

BEARING - c/shaft main, narrow (Upper and lower) (.020" undersize) (Optional)

2шт.

A20588

KIT

BEARING - c/shaft main, narrow (Upper and lower) (.030" undersize) (Optional)

2шт.

33

A20393

LINING

BEARING - connecting rod (Upper and lower) (Std. size)

4шт.

A20569

JOURNAL

BEARING - connecting rod (Upper and lower) (.002 undersize)

4шт.

A20571

BEARING LINER

BEARING - connecting rod (Upper and lower) (.010 undersize)

4шт.

A20573

KIT

BEARING - connecting rod (Upper and lower) (.020 undersize)

4шт.

A20576

LINING

BEARING - connecting rod (Upper and lower) (.030 undersize)

4шт.

34

O9705AB

X

WASHER - c/shaft thrust (Std. size)

2шт.

A7204

WASHER

c/shaft thrust (.006 oversize) (Optional)

2шт.

35

164-124

SPARE PART SHCS 3/8 x 3/4 (A22577 mtg.)

4шт.

36

193-56

LOCK WASHER,Ext Csk Tooth, 3/8"

4шт.

37

O9706AB

SPARE PART BOLT - bearing cap

1-шт.

38

A11550

BOLT (SPREADER)

Flywheel

4шт.

39

A11549

STEP BOLT

Dowel, flywheel

2шт.

40

O8651AB

X

KEY - Woodruff, fan drive pulley

1шт.
