Запчасти Case 750 (010) - VALVE GRINDING GASKET KIT (01) - ENGINE

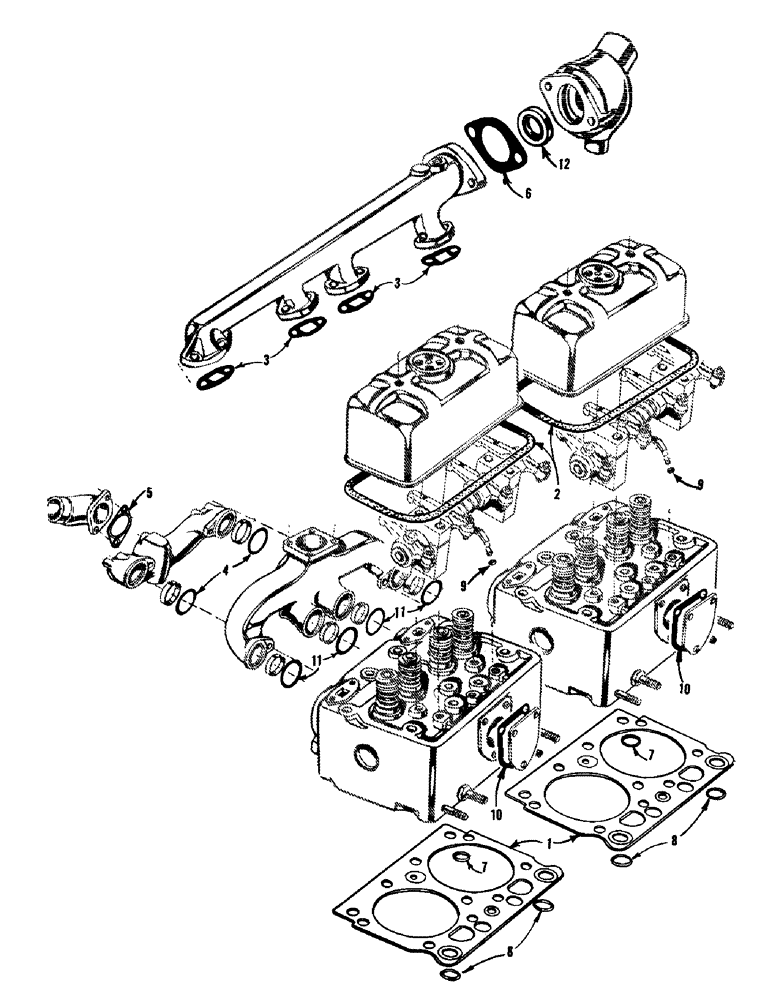

Схема запчастей Case 750 - (010) - VALVE GRINDING GASKET KIT (01) - ENGINE
7
6
9
2
5
9
10
1
3
8
11
12
4
6
3
10
11
7

Артикул

Название

Примечание

Количество

A22830

KIT

GASKET KIT - valve grind

1шт.

1

21059

GASKET - cylinder head

2шт.

2

O9959AB

X

GASKET - cylinder head cover

2шт.

3

O9804AB1

X

GASKET - water manifold

4шт.

4

A21054

MANIFOLD GASKET

- intake manifold

2шт.

5

A21055

MANIFOLD GASKET

- thermostat housing

1шт.

7

O8569AB

X

SEAL - "O" ring, cylinder head oil passage

2шт.

8

A7669

RING

- rubber, cylinder head gasket

4шт.

9

O9772AB

X

SEAL - "O" ring, rocker arm shaft tube

2шт.

10

A22939

GASKET

- decompressor lever housing opening

2шт.

11

A11888

MANIFOLD GASKET

- exhaust manifold

4шт.

12

A21034

SEAL

SEAL - thermostat

1шт.

Выбрано товаров: 12
