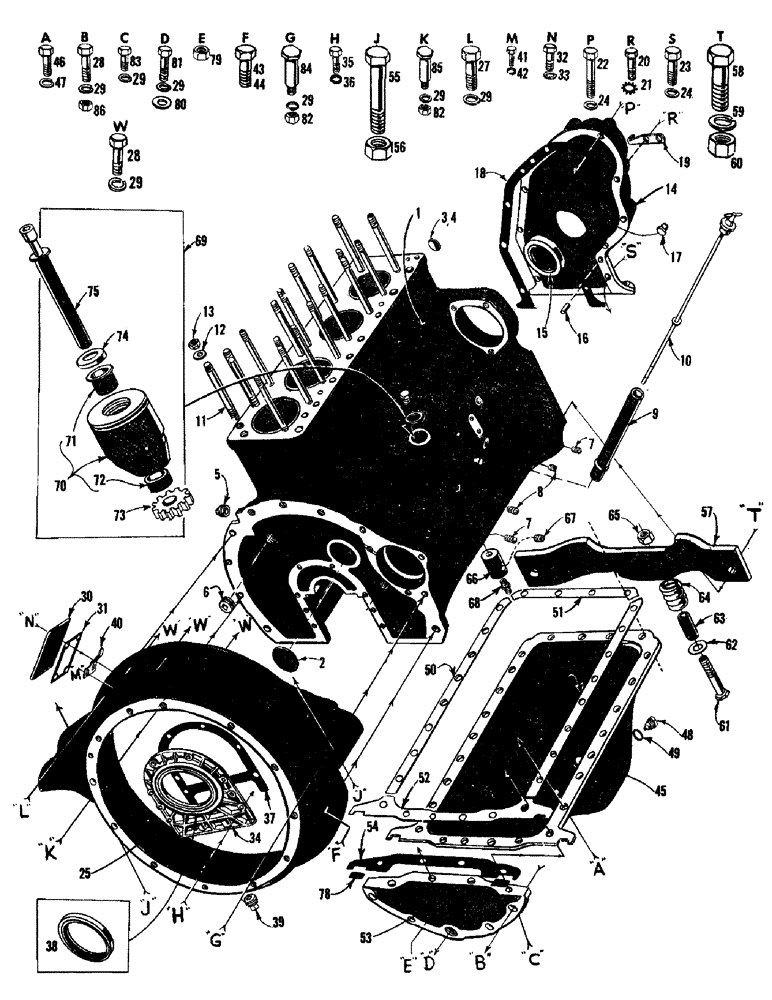

Запчасти Case 750 (006) - CYLINDER BLOCK, FLYWHEEL HSG., & OIL PAN - DIESEL (01) - ENGINE

1

A22841

BLOCK - cylinder (Inc. A21020 plug c/shaft, sleeves & pistons)

1шт.

A21020

X

BLOCK - cylinder (Inc. brg. caps, camshaft bushing & plugs)

1шт.

2

A22394

PLUG

Expansion, 2-1/2 dia.

1шт.

3

A21512

X

PLUG - cup, 1-3/8 dia.

1шт.

4

A21513

X

PLUG - cup, 1-3/4 dia.

1шт.

5

221-25

PLUG,Sq Soc, 3/4"-14 NPTF

Pipe, ctsk. headless

1шт.

6

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

Pipe, ctsk. headless, 1" NP

1шт.

7

221-41

PLUG

Pipe, slotted hd, 1/8 NP

2шт.

8

221-843

PLUG,Hex Soc, 3/8"-18

Pipe, ctsk. headless

3шт.

222-40

ELBOW,90 Degree, 3/8"-24 Fem x 1/8"-27 NPTF

Oil gauge (Not shown)

1шт.

REF

INSTRUCTION

SET, camshaft bushing (See figure 14, ref. #44)

1шт.

REF

INSTRUCTION

CAP - bearing, wide (See figure 12, ref. #9)

2шт.

REF

INSTRUCTION

CAP - bearing, narrow (See figure 12, ref. #10)

2шт.

REF

INSTRUCTION

CAP - bearing, thrust bearing (See figure 12, ref. #8)

1шт.

REF

INSTRUCTION

BOLT - bearing, cap (See figure 12, ref. #37)

10шт.

9

A22602

X

SOCKET - oil level gauge

1шт.

10

A22589

ELECTRICAL GAUGE

Bayonet, oil level

1шт.

11

A21058

BOLT

Cylinder head

18шт.

12

O9757AB

X

WASHER - cylinder head stud

18шт.

13

425-119

NUT,Hex, 9/16"-18, G5

18шт.

A20718

SPARE PART COVER ASSY - timing gear

1шт.

14

NSS

NOT SOLD SEPARAT

COVER - timing gear

1шт.

15

O9708AB

X

SEAL - oil

1шт.

16

O9710AB

SPARE PART PIN - dowel

2шт.

17

O9754AB

SPARE PART BUTTON - thrust

2шт.

18

O9750AB

X

GASKET - timing gear cover

1шт.

19

A21362

CLIP

POINTER - timing

1шт.

20

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(A21362 mtg.)

2шт.

21

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

Internal, Shakeproof

2шт.

22

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

(A20718 mtg.)

8шт.

23

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

(A20718 mtg.)

2шт.

24

92-6

LOCK WASHER,3/8"

10шт.

25

A21040

HOUSING

Flywheel

1шт.

26

RESERVED

1шт.

27

14-828

BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5

(A21040 mtg.)

2шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(A21040 mtg.)

5шт.

29

92-8

LOCK WASHER,1/2"

15шт.

30

A22584

COVER

Flywheel housing hand hole

1шт.

31

A22585

GASKET

Flywheel housing hand hole

1шт.

32

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

(A21584 mtg.)

4шт.

33

92-5

LOCK WASHER,5/16"

4шт.

34

A9791

RETAINER

c/shaft rear oil seal

1шт.

35

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(A9791 mtg.)

6шт.

36

92-6

LOCK WASHER,3/8"

6шт.

37

O10701AB

X

GASKET - c/shaft rear oil seal retainer

1шт.

38

A23085

OIL SEAL

Oil, c/shaft rear

1шт.

39

221-17

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

Pipe

1шт.

40

A22586

INDICATOR

POINTER - flywheel timing

1шт.

41

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

(A22586 mtg.)

2шт.

42

92-4

LOCK WASHER,1/4"

2шт.

43

A7078

STEP BOLT

Dowel, long (A21040 mtg.)

1шт.

44

A7079

TUBE

SPARE PART BOLT - dowel, short (A21040 mtg.)

1шт.

O9710AB

SPARE PART PIN - dowel (For flywheel timing mark) (Not shown)

1шт.

45

A21041

PAN

Oil

1шт.

46

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

(A21041 mtg.)

22шт.

47

92-6

LOCK WASHER,3/8"

24шт.

48

A14280

PLUG

Oil pan drain

1шт.

49

O9844AB

X

GASKET - drain plug

1шт.

A20171

GASKET

KIT - oil pan

1шт.

50

A11600

GASKET

Oil pan side

2шт.

51

O10350AB

X

GASKET - oil pan front

1шт.

52

A11601

GASKET

Oil pan rear

1шт.

53

A22688

PLATE - convertor housing seal

1шт.

54

A11603

OIL PAN GASKET SET

Seal plate

1шт.

55

14-1252

BOLT,Hex, 3/4" - 16 x 3-1/4", Gr 5

(Engine mtg.)

2шт.

56

131-533

LOCK,3/4"-16

2шт.

221-411

ELBOW,90 Degree, 1/8"-27, NPT

Street (Not shown)

1шт.

57

R18568

SUPPORT ASSY - engine

1шт.

58

14-1236

BOLT,Hex, 3/4" - 16 x 2-1/4", Gr 5, Full Thd

(R18568 mtg.)

2шт.

59

92-12

LOCK WASHER,3/4"

2шт.

60

25-112

NUT

Reg. SF hex (3/4 - 16 NF)

2шт.

61

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

(Engine mtg.)

1шт.

62

95-10

WASHER,5/8"

1шт.

63

R18586

SPACER

SPACER - front engine mtg.

1шт.

64

A12227

VALVE SPRING

Engine mtg.

1шт.

65

131-154

LOCK NUT,5/8"-18, GA

1шт.

66

A22592

PLUG

Oil gallery

1шт.

67

A22593

SET SCREW,1/4" - 18 x 7/8"

Set, plug retainer, 9/16 NF

1шт.

68

222-22

FITTING,1/2"-24 x 1/8" NPTF w/Nut

CONNECTOR - tube, 1/4 flex x 1/8 NP

1шт.

69

A22549

SPARE PART DRIVE ASSY - tachometer

1шт.

70

A22715

SPARE PART ADAPTER ASSY - tachometer drive

1шт.

71

A22522

BUSHING - upper

1шт.

72

A22553

BUSHING - lower

1шт.

73

A22551

SPARE PART GEAR - tachometer drive

1шт.

74

A22597

SPARE PART SPACER - tachometer drive

1шт.

75

A22550

SPARE PART SHAFT - tachometer drive

1шт.

76

A22594

CAP

PLUG - tachometer drive

1шт.

77

O9955AB

X

WASHER - copper, tachometer drive plug

1шт.

78

A11604

OIL PAN GASKET SET

Convertor hsg. seal plate

2шт.

79

131-6

LOCK NUT,3/8"-16, GC

(A22688 mtg.)

2шт.

80

A11648

SPARE PART

1шт.

81

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

(A22688 mtg.)

1шт.

82

25-118

NUT,1/2"-20, G5

Reg. SF hex

2шт.

83

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(A22688 mtg.)

2шт.

84

A7078

STEP BOLT

Dowel, 1/2-20 NF x 2-13/16 (A21040 mtg.)

1шт.

85

A7079

TUBE

SPARE PART BOLT - dowel, (A21040 mtg.)

1шт.

86

25-108

NUT,1/2"-13, G5

Hex

4шт.
