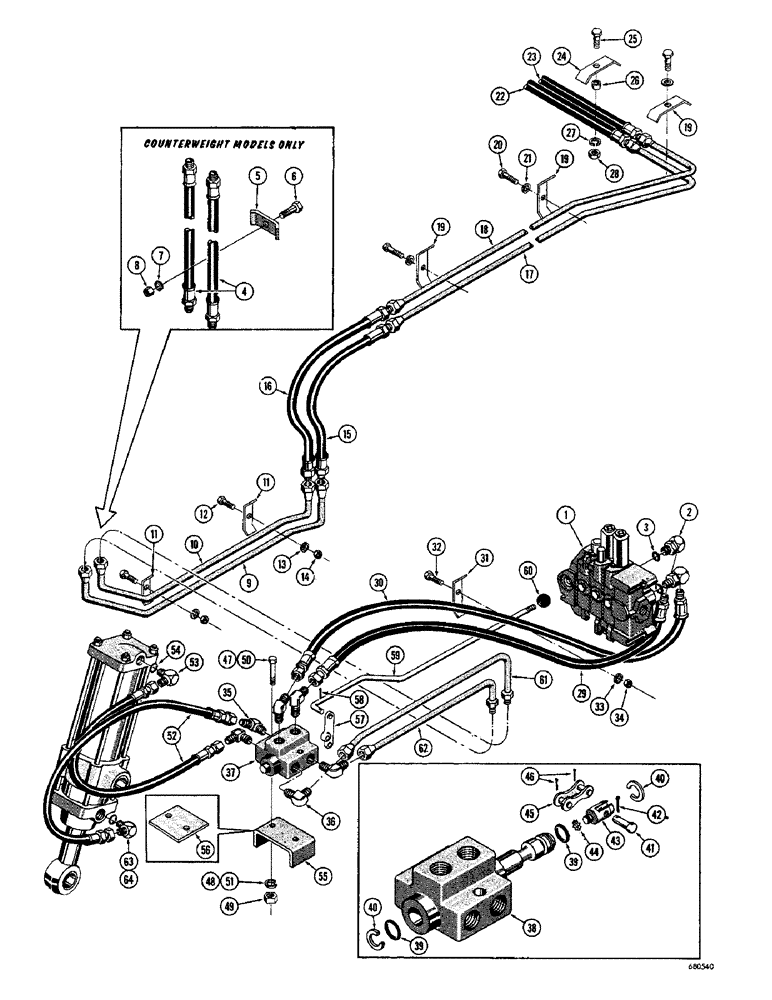

Запчасти Case 750 (194) - CLAM TYPE BUCKET HYDRAULICS (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - hydraulic, equipment control (See Fig. 252 for proper valve)

1шт.

2

D29145

ELBOW UNION

ELBOW - special, 90 degrees

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

4

D32294

HOSE - equipment control valve to bucket (36" long) Used on counterweight models only

2шт.

5

32978

PLATE ASSY.

CLAMP - hose

1шт.

6

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

7

92-5

LOCK WASHER,5/16"

1шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

9

D32238

TUBE - equipment control valve to bucket cylinder

1шт.

10

D32236

TUBE - equipment control valve to bucket cylinder

1шт.

11

38331

PLATE

CLAMP - tube

2шт.

12

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

13

92-5

LOCK WASHER,5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

15

D32288

HOSE ASSY.

HOSE - equipment control valve to bucket cylinder, closed end (36" long)

1шт.

16

D32286

HOSE - equipment control valve to bucket cylinder, rod end (38" long)

1шт.

17

D32240

TUBE - equipment control valve to bucket cylinder, closed end

1шт.

18

D32242

TUBE

- equipment control valve to bucket cylinder, rod end

1шт.

19

38331

PLATE

CLAMP - tube

3шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4"

3шт.

21

92-5

LOCK WASHER,5/16"

3шт.

22

D32284

HOSE,12.7mm ID x 1016mm L, SAE 100R2

- equipment control valve to bucket cylinder, closed end (40" long)

1шт.

23

D23030

HOSE

- equipment control valve to bucket cylinder, rod end (36-1/2" long)

1шт.

24

R16916

CLAMP - hose

1шт.

25

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

1шт.

26

D33829

BUSHING

SPACER - hose clamp

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

29

D32292

HOSE

- equipment control valve to diversion valve (54" long), used w/ ripper models only

1шт.

30

D32290

HOSE ASSY.

HOSE - equipment control valve to diversion valve (49" long), used w/ ripper models only

1шт.

31

32978

PLATE ASSY.

CLAMP - hose, used w/ ripper models only

1шт.

32

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

Used w/ ripper models only Hex, 5/16"-18 x 2 1/4", G5

1шт.

33

92-5

LOCK WASHER,5/16"

used w/ ripper models only 5/16"

1шт.

34

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), used w/ ripper models only

2шт.

35

D29569

X

ELBOW - special, 90 degrees, used w/ ripper models only

5-6шт.

36

218-504

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (Used on tractor serial no. 7070548 and after), used w/ ripper models only

1шт.

37

D26726

VALVE

- diversion, used w/ ripper modesl only

1шт.

38

NSS

NOT SOLD SEPARAT

HOUSING AND SPOOL - matched set, used w/ ripper models only

1шт.

39

D23691

O-RING

SEAL - "o" ring, spool, used w/ ripper models only

2шт.

40

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, , spool, used w/ ripper models only #100, Ext, Crescent

2шт.

41

D23693

AXLE PIN

PIN - handle, used w/ ripper models only

1шт.

42

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Used w/ ripper models only 1/16" x 1/2"

1шт.

43

D23694

ADAPTER

- handle, used w/ ripper models only

1шт.

44

D23695

WASHER

- lock, used w/ ripper models only

1шт.

45

D23696

DRAG LINK

LINK - handle, used w/ ripper models only

1шт.

46

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), , link, used w/ ripper models only 1/16" x 2"

2шт.

47

13-548

CAP,Hex, 5/16" - 18 x 3", Gr 5

BOLT - 5/16" - 18 NC x 3" (Used before tractor serial no. 7070548), used w/ ripper models only

2шт.

48

92-5

LOCK WASHER,5/16"

used w/ ripper models only 5/16"

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), used w/ripper models only

2шт.

50

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

HHCS - 3/8" - 18 NC x 2-1/2" (Used on tractor serial no. 7070548 and after), used w/ ripper models only

2шт.

51

92-6

LOCK WASHER,3/8"

used w/ ripper models only 3/8"

2шт.

52

D27478

HOSE ASSY.

HOSE - diversion valve to ripper hydraulic cylinder (22" long), used w/ ripper models only

2шт.

53

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees, used w/ ripper models only

1шт.

54

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring, used w/ ripper models only

1шт.

55

D32298

PLATE - diversion valve mounting (Used before tractor serial no. 7070548), used w/ ripper models only

1шт.

56

D34008

PLATE - diversion valve mounting (Used on tractor serial no. 7070548 and after), used w/ ripper models only

1шт.

57

D32536

LEVER - diversion valve, used w/ ripper models only

1шт.

58

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), , Used w/ ripper models only 3/32" x 5/8"

1шт.

59

D32299

ROD - control, used w/ ripper models only

1шт.

60

A26727

BALL

KNOB - control rod, used w/ ripper models only

1шт.

61

D32232

TUBE - diversion valve to bucket cylinder, rod end, used w/ ripper models only

1шт.

62

D32234

TUBE - diversion valve to bucket cylinder, closed end, used w/ ripper modes only

1шт.

63

R20839

FITTING

ELBOW - special, 90 degrees, used w/ ripper models only

1шт.

64

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring, used w/ ripper models only

1шт.
