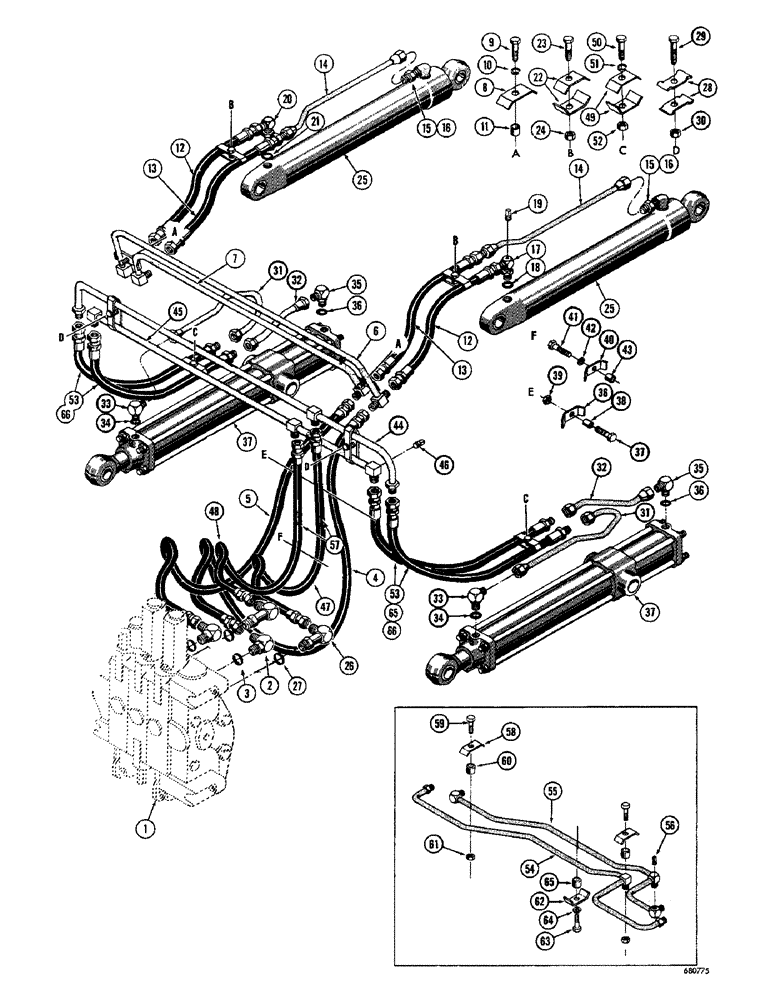

Запчасти Case 750 (190) - LOADER HYDRAULICS, USED ON TRACTOR SERIAL NO. 7070389 AND AFTER (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Fig. 252 for proper valve)

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

4

D30435

HOSE ASSY.

HOSE - valve to dump cylinder manifold (52-1/2" long)

1шт.

5

D32044

HOSE - valve to dump cylinder manifold (60" long)

1шт.

6

D31836

MANIFOLD - dump cylinder, closed end

1шт.

7

D31828

MANIFOLD - dump cylinder, rod end

1шт.

8

D20045

PLATE ASSY.

CLAMP - tube

2шт.

9

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

10

92-5

LOCK WASHER,5/16"

2шт.

11

D36040

BUSHING

SPACER - clamp (If used)

2шт.

12

D31796

HOSE

- manifold to dump cylinder, closed end (29" long)

2шт.

13

D31794

HOSE ASSY.

HOSE - manifold to dump cylinder, rod end (29" long)

2шт.

14

D31728

TUBE - dump cylinder manifold to dump cylinder, rod end

2шт.

15

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - adjustable male

2шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

17

D31789

ELBOW - special, 90 degrees

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

19

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

20

D29620

ELBOW

- special, 90 degrees

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

22

R15257

CLAMP

- hose

4шт.

23

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

24

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

25

D31693

CYLINDER

- hydraulic, loader dump (Parts list Fig. 234)

2шт.

26

D30444

ELBOW UNION

ELBOW - special, 90 degrees

2шт.

27

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

28

R15257

CLAMP

- hose

4шт.

29

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

30

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

2шт.

31

D31790

TUBE

- lift cylinder, rod end

2шт.

32

D31792

TUBE - lift cylinder, closed end

2шт.

33

D29620

ELBOW

- special, 90 degrees

4шт.

34

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

35

D32261

CYLINDER - hydraulic, loader lift (Parts list Fig. 232)

2шт.

36

R16917

CLAMP - hose

1шт.

37

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

38

D30578

SPACER

- clamp

1шт.

39

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC)

1шт.

40

R16917

CLAMP - hose

2шт.

41

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

D30578

SPACER

- clamp

2шт.

44

D31830

MANIFOLD - lift cylinder, rod end, used before trac. s/n 7071538

1шт.

45

D31833

MANIFOLD - lift cylinder, closed end, used before trac. s/n 7071538

1шт.

46

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT), used before trac. s/n 7071538

1шт.

47

D30438

HOSE ASSY.

HOSE - valve to lift cylinder manifold (44-1/2" long), used before trac. s/n 7071538

1шт.

48

D30439

HOSE - valve to lift cylinder manifold (42" long), used before trac. s/n 7071538

1шт.

49

D20045

PLATE ASSY.

CLAMP - tube, used before trac. s/n 7071538

4шт.

50

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Used before trac S/N 7071538 Hex, 5/16"-18 x 2", G5

2шт.

51

92-5

LOCK WASHER,5/16"

used before trac. s/n 7071538 5/16"

2шт.

52

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC), used before trac. s/n 7071538

2шт.

53

D31798

FLEXIBLE HOSE

HOSE - lift cylinder manifold to lift cylinder (31" long), used before trac. s/n 7071538

4шт.

54

D37127

MANIFOLD - lift cylinder, closed end, used on trac. s/n 7071538 & after

1шт.

55

D37124

MANIFOLD - lift cylinder, rod end, used on trac. s/n 7071538 & after

1шт.

56

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT), used on trac. s/n 7071538 & after

1шт.

57

D39547

HOSE

- valve to lift cylinder manifold (39" long), used on trac. s/n 7071538 & after

2шт.

58

R17319

CLAMP

- tube, used on trac. s/n 7071538 & after

2шт.

59

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Used on trac S/N 7071538 & after Hex, 5/16"-18 x 2", G5

2шт.

60

D36040

BUSHING

SPACER - clamp, used on trac. s/n 7071538 & after

2шт.

61

131-4

LOCK NUT,5/16"-18, GB

NUT - hex., lock (5/16" - 18 NC), used on trac. s/n 7071538 & after

2шт.

62

R17319

CLAMP

- tube, used on trac. s/n 7071538 & after

1шт.

63

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 5/16" - 18 NC x 1-1/4", used on trac. s/n 7071538 & after

1шт.

64

92-5

LOCK WASHER,5/16"

used on trac. s/n 7071538 & after 5/16"

1шт.

65

D36040

BUSHING

SPACER - clamp, used on trac. s/n 7071538 & after

1шт.

66

R21917

HOSE

- lift cylinder manifold to lift cylinder (38" long), used on trac. s/n 7071538 & after

4шт.
