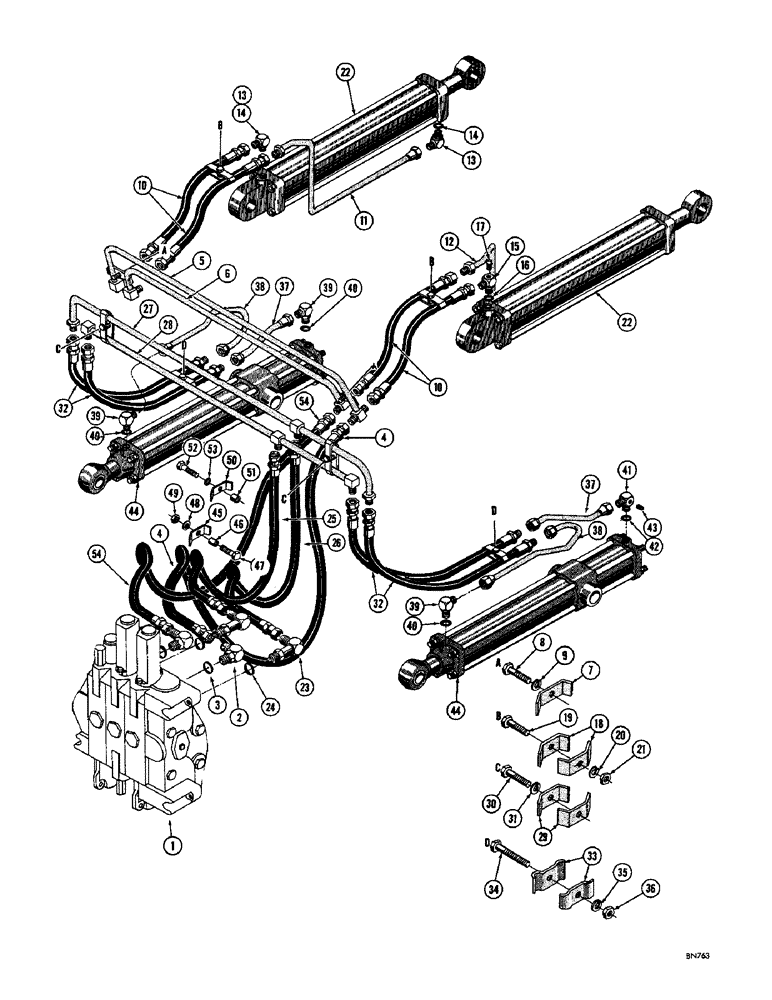

Запчасти Case 750 (188) - LOADER HYDRAULICS, USED BEFORE TRACTOR SERIAL NO. 7070389 (07) - HYDRAULIC SYSTEM

1

REF

INSTRUCTION

VALVE - equipment control (See Fig. 252 for proper valves)

1шт.

2

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

2шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

4

D30435

HOSE ASSY.

HOSE - valve to dump cylinder manifold (52-1/2" long)

1шт.

5

R19803

MANIFOLD - dump cylinder, closed end

1шт.

6

R19801

MANIFOLD - dump cylinder, rod end

1шт.

7

R16917

CLAMP - tube

2шт.

8

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

9

92-5

LOCK WASHER,5/16"

2шт.

10

R22187

HOSE - manifold to dump cylinder (28-1/4" long)

4шт.

11

D30433

TUBE - manifold to LH dump cylinder, rod end

1шт.

12

D30434

TUBE - manifold to RH dump cylinder, rod end

1шт.

13

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees

3шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

15

R19576

FITTING

ELBOW - special, 90 degrees

1шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

17

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

18

R16916

CLAMP - tube

4шт.

19

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

22

D30058

CYLINDER - hydraulic, loader dump (parts list Fig. 232)

2шт.

23

D30444

ELBOW UNION

ELBOW - special, 90 degrees

2шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

25

D30439

HOSE - valve to lift cylinder manifold (42" long)

1шт.

26

D30438

HOSE ASSY.

HOSE - valve to lift cylinder manifold (44-1/2" long)

1шт.

27

R19796

MANIFOLD - lift cylinder, rod end

1шт.

28

D30470

MANIFOLD - lift cylinder, closed end

1шт.

29

R16916

CLAMP - tube

4шт.

30

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

31

92-5

LOCK WASHER,5/16"

2шт.

32

R19794

HOSE ASSY.

HOSE - manifold to lift cylinder (28-3/4" long)

4шт.

33

R15257

CLAMP

- hose

4шт.

34

14-528

BOLT,Hex, 5/16" - 24 x 1-3/4", Gr 5

2шт.

35

92-5

LOCK WASHER,5/16"

2шт.

36

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

2шт.

37

D32318

TUBE - lift cylinder manifold to lift cylinder rod end

2шт.

38

D31477

TUBE - lift cylinder manifold to lift cylinder closed end

2шт.

39

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 90 degrees

3шт.

40

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

41

R19576

FITTING

ELBOW - 90 degree special

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

43

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

44

D32261

CYLINDER - hydraulic, loader lift (Parts list Fig. 232)

2шт.

45

R16916

CLAMP - hose

1шт.

46

D30578

SPACER

- hose clamp

1шт.

47

13-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

48

92-5

LOCK WASHER,5/16"

1шт.

49

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

50

R16916

CLAMP - hose

2шт.

51

D30578

SPACER

- hose clamp

2шт.

52

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

53

92-5

LOCK WASHER,5/16"

2шт.

54

D32044

HOSE - valve to dump cylinder manifold (60" long)

1шт.
