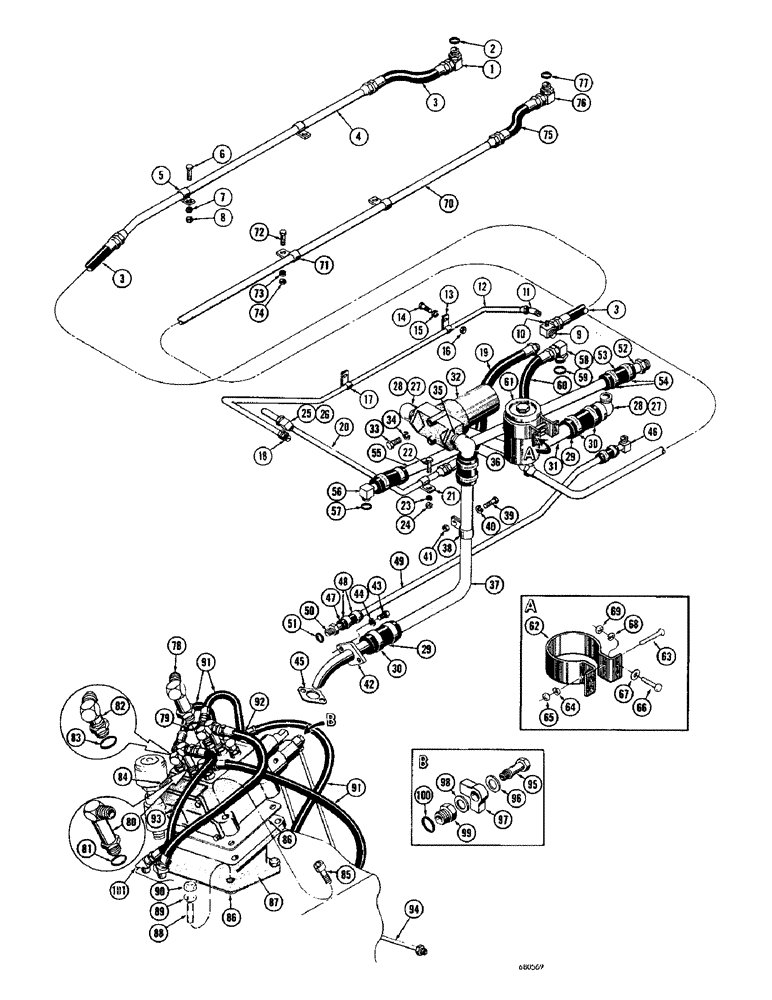

Запчасти Case 750 (104) - BASIC TRACTOR HYDRAULICS (07) - HYDRAULIC SYSTEM

1

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

2

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

3

R19858

HOSE

- radiator to torque converter (12" long)

2шт.

4

D30273

TUBE

- radiator to torque converter

1шт.

5

49855

CLAMP

- tube

2шт.

6

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

7

92-5

LOCK WASHER,5/16"

2шт.

8

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

9

D30275

ELBOW UNION

ELBOW - special, 90 degrees

1шт.

10

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, square head (1/8" NPT)

1шт.

11

218-1093

ELBOW,45 Degree, 1/2-20" 37 Degree x 1/4"-18, NPTF

- male, 45 degrees

1шт.

12

D30284

TUBE - torque converter to transmission control valve base

1шт.

13

515-2295

CLAMP,3/8", Insul, 5/16" Bolt

- tube

1шт.

14

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

(49859 mounting) Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

17

49832

CLAMP

- tube

1шт.

18

218-1023

HYD CONNECTOR,1/2"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - male, straight

1шт.

19

D30276

HOSE

- torque converter to transmission control valve (15-15/16" long)

1шт.

20

D30281

TUBE - torque converter to transmission control valve

1шт.

21

49885

CLAMP

- tube

1шт.

22

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

25

R20894

FITTING

ELBOW - special, adjustable (90 degrees)

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

27

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degrees

2шт.

28

221-236

PIPE,Nipple, 1" NPT x 1 1/2"

NIPPLE - pipe (1" NPT x 1-1/2")

1шт.

29

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- low pressure, transmission to torque converter 31.80 mm ID x 101.60 mm ID, SAE 100R3

4шт.

30

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

8шт.

31

D30280

TUBE - hydraulic oil screen to torque converter

1шт.

32

D30290

FILTER - hydraulic oil, transmission to torque converter (Used before tractor serial no. 7070557) See Fig. 108 for breakdown (Order D32618 filter for service)

1шт.

D32618

X

FILTER - hydraulic oil, transmission to torque converter (Used on tractor serial no. 707557 and after) See Fig. 108 for breakdown

1шт.

33

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

34

92-8

LOCK WASHER,1/2"

2шт.

35

221-239

SUN VISOR,Nipple, 1" NPT x 2"

NIPPLE - pipe (1" NPT x 2")

1шт.

36

221-416

ELBOW,90 Degree, 1"-11 1/2, NPT

- street, 90 degrees

1шт.

37

D30289

TUBE - transmission to hydraulic oil screen

1шт.

38

R14098

CLAMP,1 1/4", Insul, 5/16" Bolt

- tube

1шт.

39

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

40

92-5

LOCK WASHER,5/16"

1шт.

41

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

42

A50110

TUBE

SNORKEL - transmission

1шт.

43

A50051

STUD

BOLT - special

2шт.

44

A22317

WASHER

- copper

2шт.

45

A50109

GASKET

- snorkel

1шт.

46

D30287

ELBOW - special, 90 degrees

1шт.

47

R20848

LARGE HOSE

HOSE - low pressure, torque, Serial Range: converter-transmission

2шт.

48

214-253

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP - hose

4шт.

49

D30288

TUBE - torque, Serial Range: converter-transmission

1шт.

50

R20711

CONNECTOR, ELEC

CONNECTOR - special

1шт.

52

D30286

X

CONNECTOR - special

1шт.

53

D24728

HOSE

- low pressure, torque, Serial Range: converter-transmission

2шт.

54

214-257

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

4шт.

55

D30283

TUBE - torque, Serial Range: converter-transmission

1шт.

56

R20916

FITTING

ELBOW - special, adjustable (90 degrees)

1шт.

57

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

58

D25566

ELBOW

- special, adjustable (90 degrees)

1шт.

59

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

60

D30278

HOSE

- torque converter to transmission oil filter (21" long)

1шт.

61

D31210

FILTER

- transmission oil (Parts list Fig. 108)

1шт.

62

D31217

BRACKET

- filter mounting

1шт.

63

75-544

RHMS - 5/16" - 18 NC x 2-3/4"

2шт.

64

92-5

LOCK WASHER,5/16"

2шт.

65

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

66

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

67

95-6

WASHER,3/8"

- standard wrot () 3/8"

4шт.

68

92-6

LOCK WASHER,3/8"

4шт.

69

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

70

D30271

TUBE - transmission oil, Serial Range: filter-radiator

1шт.

71

49855

CLAMP

- tube

2шт.

72

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

73

92-5

LOCK WASHER,5/16"

2шт.

74

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

75

R19858

HOSE

- transmission oil filter to radiator (12" long)

1шт.

76

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

adjustable 90º, 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

77

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

78

R20894

FITTING

ELBOW - special, adjustable (90 degrees)

1шт.

79

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

80

R20739

FITTING

ELBOW - special, adjustable (90 degrees)

2шт.

81

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

82

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 90 degrees

4шт.

83

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, seal

1шт.

84

R20724

VALVE

- transmission control (Parts list Fig. 92)

1шт.

85

166-49

12 PT SCREW,Flg, 3/8" - 16 x 2", Gr 8

SHCS - 3/8" - 16 NC x 2"

4шт.

86

A50113

GASKET

- valve

2шт.

87

A50114

BASE

- valve mounting

1шт.

88

A50019

NO LONGER SERVICED

STUD - valve base

4шт.

89

92-6

LOCK WASHER,3/8"

4шт.

90

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

91

A50296

HYDRAULIC HOSE,6.35 mm ID x 495.30 mm, SAE100R1

6.35 mm ID x 495.30 mm, SAE 100R1 - Transmission control valve to oil inlet cover, Front

4шт.

92

A50295

HYDRAULIC HOSE,6.35 mm ID x 419.00 mm, SAE100R1

6.35 mm ID x 419.00 mm, SAE 100R1 - RH, Transmission control valve to housing

1шт.

93

A50294

HYDRAULIC HOSE,14.25"

- LH, Transmission control valve to housing 14.25"

1шт.

94

A50126

TUBE

- transmission control valve, Serial Range: fitting-brakes

2шт.

95

A12864

BOLT

- connection

2шт.

96

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- inlet connection bolt

2шт.

97

51200243

FITTING

- brake line

2шт.

98

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inlet connection bolt

2шт.

99

72125

ADAPTER

- brake tube

2шт.

101

R22368

ELBOW

- special, 45 degrees

2шт.

51

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL- "o" ring

1шт.

100

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

SEAL - "o" ring, adapter

2шт.
