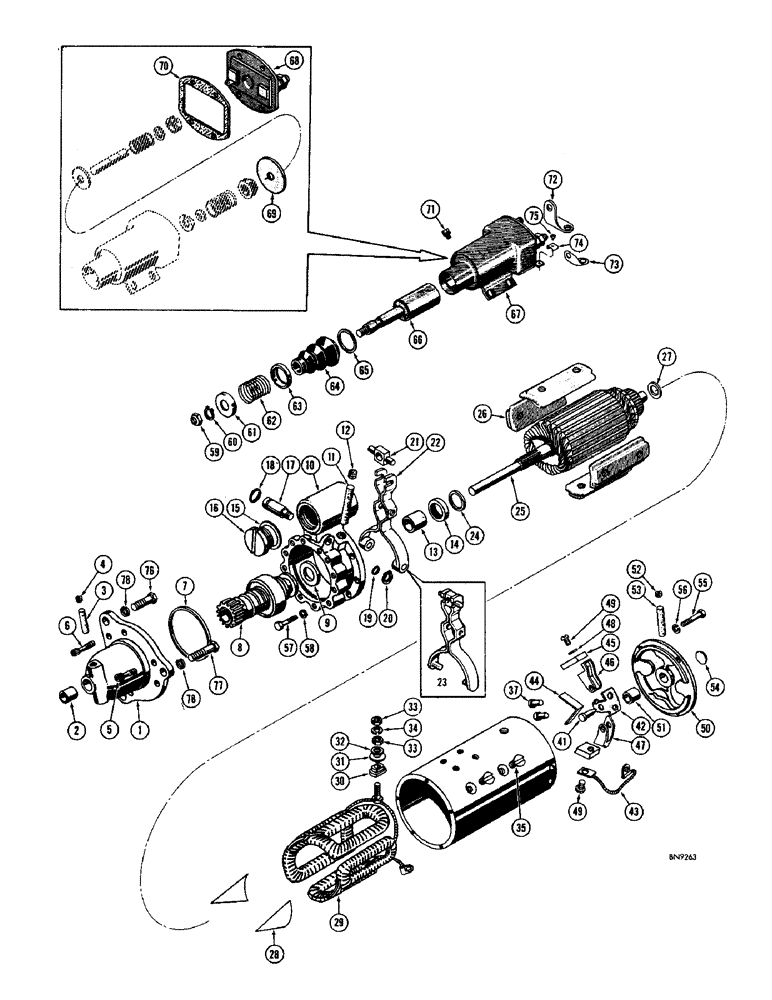

Запчасти Case 750 (054) - R20745 STARTER (06) - ELECTRICAL SYSTEMS

R20745

STARTER - Delco Remy no. 1113371 (When stock is exhausted, use A15485 starter for service) See Fig. 58 for service

1шт.

1

R21560

HOUSING - drive (Order A40283 housing for service)

1шт.

2

R21561

X

BUSHING - drive housing

1шт.

3

R15023

WICK

- oil

1шт.

4

221-1041

PLUG

- pipe

1шт.

5

R21565

X

SHCS - 5/16" - 18 NC x 1-1/2" (R21560 mounting)

5шт.

6

R21566

SHCS - 5/16" - 18 NC x 7/8" (R21560 mounting)

1шт.

7

R21562

GASKET

- drive housing

1шт.

8

R21589

DRIVE

CLUTCH - motor

1шт.

9

R15145

DISC

WASHER - brake

1шт.

10

R21579

HOUSING

- lever

1шт.

11

R21581

X

WICK - oil

1шт.

12

221-1041

PLUG

- pipe

1шт.

13

R21580

BUSHING

1шт.

14

R21582

OIL SEAL

- oil

1шт.

15

R21588

GASKET - plug

1шт.

16

R21587

PLUG

- lever housing

1шт.

17

R21564

X

SHAFT - lever pivot

1шт.

18

R21573

O-RING,0.369" ID x 0.515" OD x 0.073"

SEAL - "o" ring

1шт.

19

R21574

O-RING,0.244" ID x 0.391" OD x 0.073"

SEAL - "o" ring

1шт.

20

R21575

X

RING - snap

1шт.

21

R21577

X

GUIDE - lever (When stock is exhausted, use D32547 lever for service)

1шт.

22

R21563

X

LEVER - shift (When stock is exhausted use D32547 lever for service)

1шт.

23

D32547

LEVER

- shift

1шт.

24

R21583

WASHER

- spacer

1шт.

25

A40909

ARMATURE

1шт.

26

R15115

SHOE

- pole

4шт.

27

R15036

WASHER - spacer, commutator end

1шт.

28

R15018

X

INSULATOR - field coil

2шт.

29

R21557

COIL ASSY.

- field

1шт.

30

R15010

BUSHING

- insulating, terminal stud

1шт.

31

R15011

WASHER

- insulating, terminal stud

1шт.

32

R15013

WASHER

- plain

1шт.

33

R15014

NUT

- terminal stud

2шт.

34

R15012

WASHER - lock (3/8")

1шт.

35

R15009

SCREW - pole shoe

8шт.

36

R15029

BRUSH

KIT - brush support, service only (Not illustrated)

2шт.

37

NSS

NOT SOLD SEPARAT

RIVET

2шт.

38

R15031

X

SCREW - optional to rivet (Not illustrated)

2шт.

39

R15033

X

WASHER - lock, optional to rivet (Not illustrated)

2шт.

40

R15032

X

NUT - optional to rivet (Not illustrated)

2шт.

41

R15035

PIN

- brush

1шт.

42

NSS

NOT SOLD SEPARAT

SUPPORT - brush

1шт.

43

R15030

ELECTRICAL WIRE

LEAD - ground

1шт.

44

R15025

SPRING

- brush

2шт.

R4285

BRUSH, COMMUTATOR

KIT - brush

1шт.

45

R15024

BRUSH, COMMUTATOR

BRUSH

4шт.

46

R21590

HOLDER

- brush (Insulated)

2шт.

47

A40217

HOLDER

- brush (Ground)

2шт.

48

D32481

SELF-TAP SCREW,Sltd Pan Hd, #8-32 x 13/16", w/LW

WASHER - internal Shakeproof

2шт.

49

R18195

SCREW - brush attaching

4шт.

50

R21559

FRAME

- commutator end

1шт.

51

R15020

BUSHING

1шт.

52

221-1041

PLUG

- pipe

1шт.

53

R15023

WICK

1шт.

54

R15021

PLUG

- expansion

1шт.

55

R21578

SCREW

- R21559 mounting

4шт.

56

R15033

X

WASHER - lock

4шт.

57

R21584

HHCS - 1/4" - 28 NF x 1" (R21579 mounting)

5шт.

58

R21585

X

WASHER - lock

5шт.

59

R21586

X

NUT - jam

1шт.

60

R21575

X

RING - snap

1шт.

61

R21571

RETAINER

- spring

1шт.

62

R21569

X

SPRING

1шт.

63

R21572

RETAINER

- spring

1шт.

64

R21576

BOOT

1шт.

65

R21570

WASHER

- retainer

1шт.

66

R21568

PLUNGER

1шт.

67

R22915

SOLENOID SWITCH

SOLENOID

1шт.

68

D29577

PLATE - terminal

1шт.

69

D29578

X

DISC - contact

1шт.

70

D29930

X

GASKET - terminal plate

1шт.

71

R15159

SCREW,Hex, 1/4" - 20 x 3/8", w/ LW

AND LOCKWASHER ASSY

4шт.

72

R21558

CONNECTOR -, Serial Range: terminal-switch

1шт.

73

R22994

CONNECTOR

1шт.

74

R15182

CLIP

- terminal

4шт.

75

D32502

SCREW,Hex, #10 - 32 x 3/8"

- terminal clip, no. 10 - 32 NF

2шт.

76

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4" (R20745 mounting)

2шт.

77

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5 (R20745 mounting)

1шт.

78

92-8

LOCK WASHER,1/2"

3шт.
