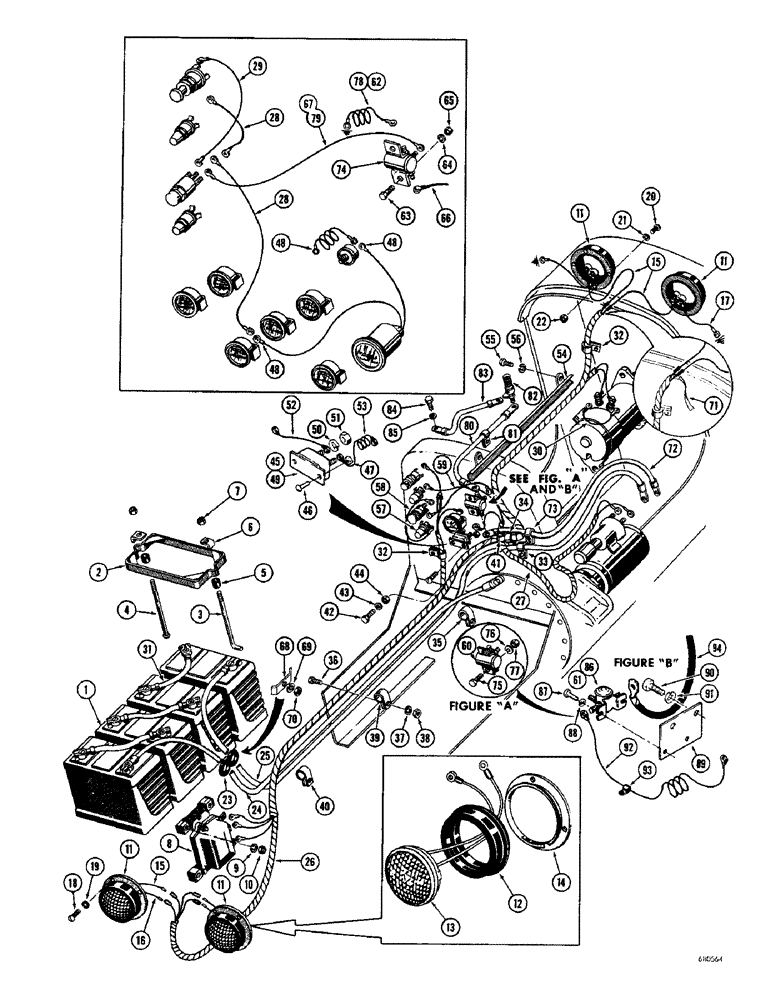

Запчасти Case 750 (042) - ELECTRICAL SYSTEM (06) - ELECTRICAL SYSTEMS

1

R19455

BATTERY - 6 volt, dry

4шт.

2

R19283

HOLD DOWN - battery

4шт.

3

R20618

STUD - special

4шт.

4

15-5148

BOLT

RHMB - 5/16" - 18 NC x 9-1/4"

4шт.

5

G46096

RETAINER

BUSHING - rubber

8шт.

6

D29453

CLIP

- battery hold down

8шт.

7

131-4

LOCK NUT,5/16"-18, GB

NUT - lock (5/16" - 18 NC)

8шт.

8

R12764

X

REGULATOR - voltage

1шт.

9

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock (1/4")

4шт.

10

25-104

NUT,1/4"-20, G5

4шт.

11

R17309

LAMP

TAILLIGHT

2шт.

R17308

LAMP

HEADLIGHT

2шт.

12

R16888

X

RETAINER - lamp

1шт.

13

R16790

X

LAMP - headlight and taillight (When stock is exhausted, order D33182 lamp)

1шт.

D33182

LAMP

- headlight and taillight

1шт.

14

R17306

FRAME

- headlight and taillight

1шт.

15

R17305

WIRE - headlight and taillight

1шт.

16

R17304

WIRE - taillight only

1шт.

17

R17303

WIRE - headlight only

1шт.

18

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

8шт.

19

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock (1/4")

8шт.

20

75-48

SCREW,Rd, 1/4" - 20 x 1/2"

RHMS - 1/4" - 20 NC x 1/2"

8шт.

21

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock (1/4")

8шт.

22

25-104

NUT,1/4"-20, G5

8шт.

23

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- tank (Used on D30333) See Fig. 164

2шт.

24

R13793

CABLE

- battery, ground (Positive)

1шт.

25

R14556

CABLE

- battery, hot (Negative)

1шт.

26

R20616

ELECTRICAL WIRE

HARNESS - wiring (Includes 223-10, 10 ampere fuse)

1шт.

27

D31505

HARNESS - wiring

1шт.

28

51200220

ELECTRICAL WIRE

WIRE - jumper, push-button starter switch to electrical switch and electrical, Serial Range: switch-ammeter

2шт.

29

71280

WIRE - jumper, electrical switch to light switch

1шт.

30

74937

WIRE - jumper, generator

1шт.

31

R11115

CABLE

- jumper, battery

3шт.

32

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- wiring

2шт.

33

49838

CLAMP

- wiring

1шт.

34

R14668

CLAMP

- wiring

1шт.

35

R11405

CLAMP

- wiring

2шт.

36

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

37

92-5

LOCK WASHER,5/16"

1шт.

38

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

39

49852

PTO SHAFT

- wiring

1шт.

40

51200320

CLAMP

- wiring

1шт.

41

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- wiring (If used)

1шт.

42

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

43

92-5

LOCK WASHER,5/16"

1шт.

44

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

45

R19141

BREAKER

CIRCUIT BREAKER - 6 volt, 30 amp (Used on early production models)

1шт.

46

174-77

RHMS - no. 8 - 36 NF x 1/2"

2шт.

47

225-14208

NUT,#8-36

- hex. (No. 8 - 36 NF)

2шт.

48

R22974

TERMINAL - pressure switch and ammeter

3шт.

49

D37203

BREAKER

CIRCUIT BREAKER - 24 volt, 15 amp (Used on late production models)

1шт.

50

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

2шт.

51

129-37

NUT,#10-32

2шт.

52

D37205

WIRE - jumper, circuit breaker to starter (Used with D37203 circuit breaker)

1шт.

53

R14453

WIRE - jumper, circuit breaker to ammeter (Used with D37203 circuit breaker)

1шт.

54

A7532

CONDUIT - wiring

1шт.

55

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

2шт.

56

92-8

LOCK WASHER,1/2"

2шт.

57

NLS

NO LONGER SERVICED

SWITCH - preheater (Use A30858 for service)

1шт.

58

R16073

WIRE - jumper, push-button switch to electrical switch

1шт.

59

R16067

WIRE - jumper, push-button, Serial Range: switch-solenoid

1шт.

60

D31479

SOLENOID SWITCH

SWITCH - solenoid, electrical switch to starter (Used before tractor serial no. 7072126)

1шт.

61

A18501

SOLENOID SWITCH

SWITCH - solenoid, electrical switch to starter (Used on tractor serial no. 7072126 and after)

1шт.

62

D31548

ELECTRICAL WIRE

WIRE - ground, solenoid (Used with D31479 switch)

1шт.

63

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

64

193-28

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock (1/4")

2шт.

65

25-104

NUT,1/4"-20, G5

2шт.

66

D31549

WIRE - jumper, circuit breaker to solenoid (For service, use D37204 wire)

1шт.

D37204

WIRE - jumper, circuit, Serial Range: breaker-solenoid

1шт.

67

R16067

WIRE - jumper, starter push, Serial Range: button-solenoid

1шт.

68

D31782

FIXING BRACKET

CLAMP - battery cable (Used with D31770 tank only) See Fig. 164 for no. 50

1шт.

69

92-8

LOCK WASHER,1/2"

1шт.

70

25-108

NUT,1/2"-13, G5

- hex (1/2" - 13 NC)

1шт.

71

D33185

COVER - wire

2шт.

72

D32643

CABLE

-, Serial Range: solenoid-starter

1шт.

73

49836

CLAMP

- cable (Used with D32643 cable only)

1шт.

74

D31479

SOLENOID SWITCH

SWITCH - preheater (24 volt), used on models w/ dash mounted solenoid - D31479

1шт.

75

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

Used on models w/ dash mounted solenoid - D31479 Hex, 1/4"-20 x 7/8", G5, Full Thd

2шт.

76

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on models w/ dash mounted solenoid - D31479 1/4"

2шт.

77

25-104

NUT,1/4"-20, G5

Used on models w/ dash mounted solenoid - D31479 1/4"-20, G5

2шт.

78

D31548

ELECTRICAL WIRE

WIRE - ground, used on models w/ dash mounted solenoid - D31479

1шт.

79

R16067

WIRE - jumper, starter push button to solenoid, used on models w/ dash mounted - D31479

1шт.

80

R19418

CABLE - to manifold heater, used on models w/ dash mounted solenoid - D31479

1шт.

81

49836

CLAMP

- cable, used on models w/ dash mounted solenoid - D31479

1шт.

82

A34278

HEATER

- manifold, 24 volt, used on models w/ dash mounted solenoid - D31479

1шт.

83

R19417

CABLE

- ground, manifold heater to engine block, used on models w/ dash mounted solenoid - D31479

1шт.

84

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used on models w/ dash mounted solenoid - D31479 Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

85

92-6

LOCK WASHER,3/8"

used on models w/ dash mounted solenoid - D31479 3/8"

1шт.

86

A18501

SOLENOID SWITCH

SWITCH - preheater (24 volt), used on models w/ engine mounted solenoid - A18501

1шт.

87

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Used on models w/ engine mounted solenoid - A18501 Hex, 1/4"-20 x 3/4", G5, Full Thd

2шт.

88

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Used on models w/ engine mounted solenoid - A18501 1/4"

2шт.

89

A34047

PLATE ASSY.

BRACKET - mounting, switch, used on models w/ engine solenoid - A18501

1шт.

90

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Used on models w/ engine mounted solenoid - A18501 Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

91

92-6

LOCK WASHER,3/8"

used on models w/ engine mounted solenoid - A18501 3/8"

2шт.

92

D40435

ELECTRICAL WIRE

WIRE - jumper, ignition switch to solenoid, used on models w/ engine mounted - A18501

1шт.

93

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

used on models w/ engine mounted solenoid - A18501

1шт.

94

A21482

CABLE

- solenoid to manifold heater, used on models w/ engine mounted - A18501

1шт.
