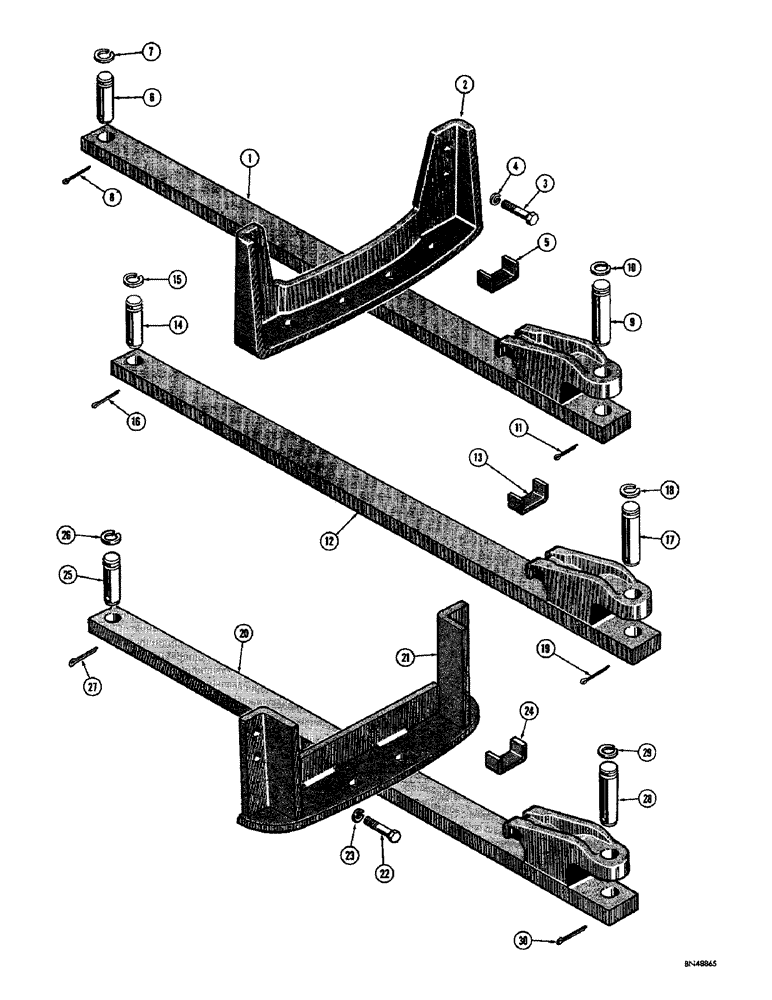

Запчасти Case 750 (230) - DRAWBARS, STANDARD DRAWBAR (FOR USE ON MODELS WITHOUT RIPPER (05) - UPPERSTRUCTURE CHASSIS

1

NLS

NO LONGER SERVICED

DRAWBAR - standard

1шт.

2

R15785

GUIDE

- drawbar

1шт.

3

14-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 5

(If used) Hex, 5/8"-18 x 1 3/4", G5

4шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(If used) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

R21902

PLATE

- wear

1шт.

6

R21978

PIN

- mounting, drawbar

1шт.

7

R21976

RING

- snap

1шт.

8

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

9

R21979

PIN

- hitch, drawbar

1шт.

10

R21976

RING

- snap

1шт.

11

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

12

D30455

DRAWBAR - standard, for use on models w/ ripper

1шт.

13

R21902

PLATE

- wear, standard drawbar (for used on models w/ ripper)

1шт.

14

R21978

PIN

- mounting, standard drawbar (for used on models w/ ripper)

1шт.

15

R21976

RING

- snap, standard drawbar (for used on models w/ ripper)

1шт.

16

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Standard drawbar (For use on models w/ ripper) 1/4" x 2"

1шт.

17

R21979

PIN

- hitch, standard drawbar (for used on models w/ ripper)

1шт.

18

R21976

RING

- snap, standard drawbar (for used on models w/ ripper)

1шт.

19

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

20

D33312

DRAWBAR

- winch, standard (for used on models w/ ripper)

1шт.

21

D32635

GUIDE

- standard drawbar (for used on models w/ ripper)

1шт.

22

14-1448

BOLT,Hex, 7/8" - 14 x 3", Gr 5

HHCS - 7/8" - 14 NF x 3", standard drawbar (for used on models w/ ripper)

4шт.

23

92-14

LOCK WASHER,7/8"

WASHER, LOCK, , Standard drawbar (for use on models w/ ripper) 7/8"

4шт.

24

R21902

PLATE

- wear, standard drawbar (for used on models w/ ripper)

1шт.

25

R21978

PIN

- mounting, standard drawbar (for used on models w/ ripper)

1шт.

26

R21976

RING

- snap, standard drawbar (for used on models w/ ripper)

1шт.

27

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Standard drawbar (For use on models w/ ripper) 1/4" x 2"

1шт.

28

R21979

PIN

- hitch, standard drawbar (for used on models w/ ripper)

1шт.

29

R21976

RING

- snap, standard drawbar (for used on models w/ ripper)

1шт.

30

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , Standard drawbar (For use on models w/ ripper) 1/4" x 2"

1шт.
