Запчасти Case 750 (226) - EQUIPMENT CONTROL VALVES AND LEVERS, (WITHOUT RIPPER) MODELS, USED ON LOADER COUTERWEIGHT AND DOZER (05) - UPPERSTRUCTURE CHASSIS

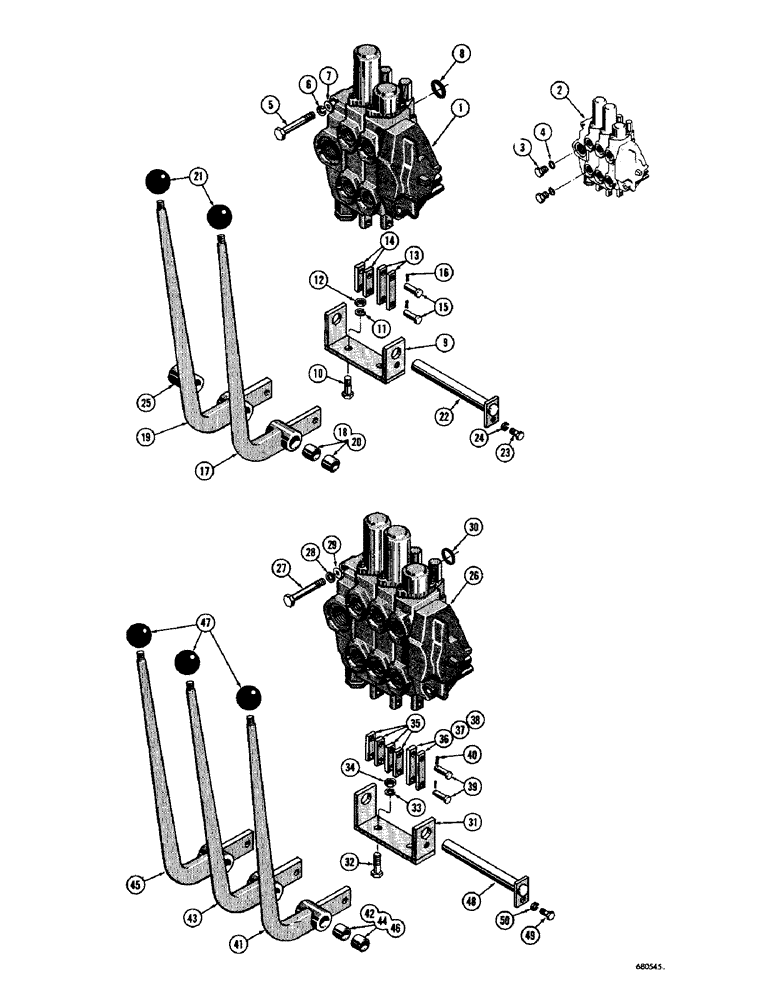

Схема запчастей Case 750 - (226) - EQUIPMENT CONTROL VALVES AND LEVERS, (WITHOUT RIPPER) MODELS, USED ON LOADER COUTERWEIGHT AND DOZER (05) - UPPERSTRUCTURE CHASSIS
42
19
31
8
43
28
18
5
24
30
4
48
23
20
10
38
12
17
34
25
29
46
33
26
45
13
1
22
7
21
14
36
16
35
39
37
15
44
11
2
47
3
9
50
32
27
6
40
49
41

Артикул

Название

Примечание

Количество

1

D30500

X

VALVE - hydraulic, equipment control (2 spool) Used on loader counterweight models only (Early production) Parts list Fig. 252 (Order 1 - D30501 valve and 2 - 218-5158 plugs for service)

1шт.

D31286

VALVE - hydraulic, equipment control (2 spool) Used on dozers without ripper (Early production) Parts list Fig. 254 (Order 1 - D31287 valve and 2 - 218-5158 plugs for service)

1шт.

2

D30501

VALVE

- hydraulic, equipment control (3 spool) Used on late intermediate loader models only (Parts list Fig. 252) When stock is exhausted, order 1 - D41479 valve and 2 - 218-5158 plugs for service

1шт.

D41479

VALVE

- hydraulic equipment control (3 spool) Used on late production loader models only (Parts list Fig.252(1))

1шт.

D31287

VALVE - hydraulic, equipment control (3 spool) Used on late production dozer models only (Parts list Fig. 254) When stock is exhausted, order 1 - D41492 valve and 2 - 218-5158 plugs for service

1шт.

D41492

VALVE - hydraulic, equipment control (3 spool) Used on late production dozer models only (Parts list Fig. 254(1))

1шт.

3

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Special, 3/4" JIC (Used with 3 spool valves only) Hex Hd, 1 1/16"-12 ORB

2шт.

4

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "o" ring

1шт.

5

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

3шт.

6

92-6

LOCK WASHER,3/8"

3шт.

7

95-6

WASHER,3/8"

- standard wrot () 3/8"

7шт.

8

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "o" ring

1шт.

9

D32035

BRACKET - control valve levers

1шт.

10

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

(Bracket mounting) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

11

92-6

LOCK WASHER,3/8"

2шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

13

D30494

LINK - valve to inner control lever

2шт.

14

D30495

LINK - valve to outer control lever

2шт.

15

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Valve link 3/8" x 1.060"

4шт.

16

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4"

4шт.

17

D31275

LEVER - equipment control, inner

1шт.

18

D30497

BUSHING

2шт.

19

D30490

LEVER - equipment control, outer

1шт.

20

D30497

BUSHING

2шт.

21

70213

KNOB

BALL - grip

2шт.

22

D30492

SHAFT - control lever

1шт.

23

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

25

D30491

SPACER - control valve lever

1шт.

26

D30501

VALVE

- hydraulic, equipment control (Used on loader models only) Parts list Fig. 252 (When stock is exhausted, order 1 - D41479 valve for service), used on dozer and loader models w/ ripper or pull behind

1шт.

D41479

VALVE

- hydraulic, equipment control (Used on loader models only) Parts list Fig. 252(1), used on dozer and loader models w/ ripper or pull behind

1шт.

D31287

VALVE - hydraulic, equipment control (Used on dozer models only) Parts list Fig. 254 (When stock is exhausted, order 1 - D41492 valve for service), used on dozer and loader models w/ ripper or pull behind

1шт.

D41492

VALVE - hydraulic, equipment control (Used on dozer models only) Parts list Fig. 254(1), used on dozer and loader models w/ ripper or pull behind

1шт.

27

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4", used on dozer and loader models w/ ripper or pull behind hydraulics

3шт.

28

92-6

LOCK WASHER,3/8"

used on dozer and loader models w/ ripper or pull behind hydraulics 3/8"

3шт.

29

95-6

WASHER,3/8"

- standard wrot (), used on dozer and loader models w/ ripper or pull behind hydraulics 3/8"

7шт.

30

T13224

O-RING,1.484" ID x 1.762" OD x 0.139"

SEAL - "o" ring, used on dozer and loader models w/ ripper or pull behind hydraulics

1шт.

31

D32035

BRACKET - control valve levers, used on dozer and loader models w/ ripper or pull behind hydraulics

1шт.

32

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Used on dozer and loader models w/ ripper or pull behind hydraulics Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

33

92-6

LOCK WASHER,3/8"

used on dozer and loader models w/ ripper or pull behind hydraulics 3/8"

2шт.

34

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC), used on dozer and loader models w/ ripper or pull behind hydraulics

2шт.

35

D30495

LINK - valve to outer and center control levers (Used with D30501 and D31287 valves), used on dozer and loader models w/ ripper or pull behind hydraulics

4шт.

36

D30495

LINK - valve to center control lever (Used with D41492 and D41479 valves), used on dozer and loader models w/ ripper or pull behind hydraulics

2шт.

37

D30494

LINK - valve to inner control lever (Used with D30501 and D31287 valves), used on dozer and loader models w/ ripper or pull behind hydraulics

2шт.

38

D30494

LINK - valve to inner and outer control levers (Used with D41492 and D41479 valves), used on dozer and loader models w/ ripper or pull behind hydraulics

4шт.

39

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , Valve link, Used on dozer and loader models w/ ripper or pull behind hydraulics 3/8" x 1.060"

6шт.

40

132-26

COTTER PIN

Pin, Split (Cotter), 3/32" x 3/4", used on dozer and loader models w/ ripper or pull behind hydraulics

6шт.

41

D31275

LEVER - equipment control, inner, used on dozer and loader models w/ ripper or pull behind hydraulics

1шт.

42

D30497

BUSHING, used on dozer and loader models w/ ripper or pull behind hydraulics

2шт.

43

D30490

LEVER - equipment control, center, used on dozer and loader models w/ ripper or pull behind hydraulics

1шт.

44

D30497

BUSHING, used on dozer and loader models w/ ripper or pull behind hydraulics

2шт.

45

D31276

LEVER - equipment control, outer, used on dozer and loader models w/ ripper or pull behind hydraulics

1шт.

46

D30497

BUSHING, used on dozer and loader models w/ ripper or pull behind hydraulics

2шт.

47

70213

KNOB

GRIP - ball, used on dozer and loader models w/ ripper or pull behind hydraulics

3шт.

48

D30492

SHAFT - control lever, used on dozer and loader models w/ ripper or pull behind hydraulics

1шт.

49

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

Used on dozer and loader models w/ ripper or pull behind hydraulics Hex, 5/16"-18 x 1/2", G5, Full Thd

1шт.

50

92-5

LOCK WASHER,5/16"

used on dozer and loader models w/ ripper or pull behind hydraulics 5/16"

1шт.

Выбрано товаров: 57
