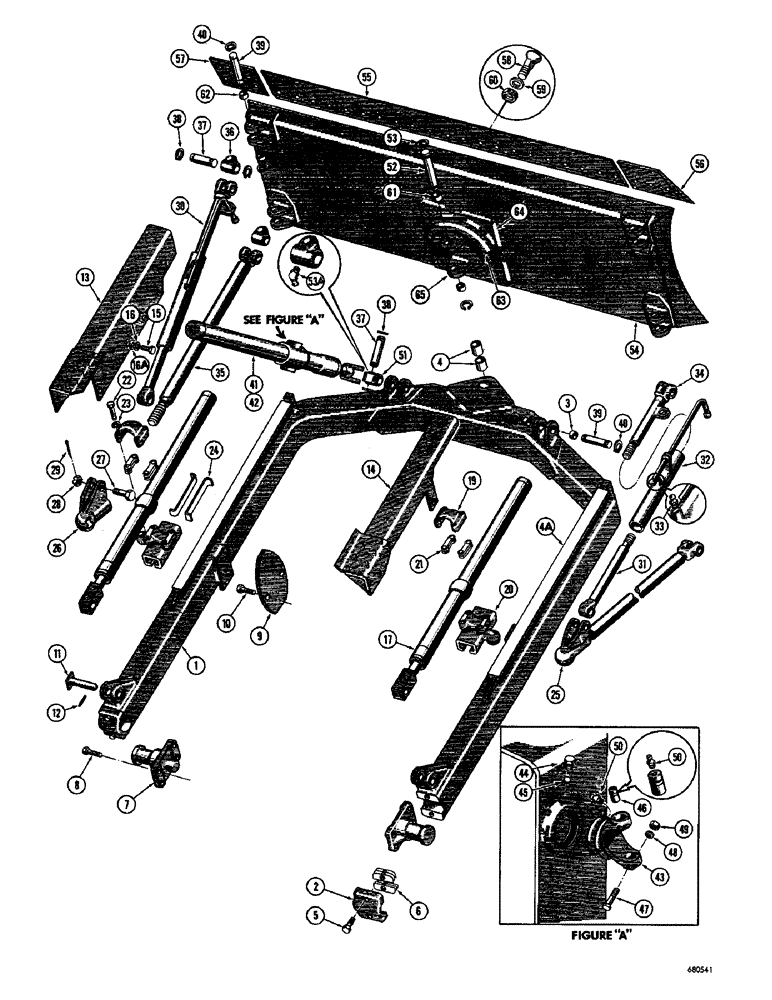

Запчасти Case 750 (198) - POWER ANGLING DOZER (05) - UPPERSTRUCTURE CHASSIS

1

D32900

"C" FRAME - power angling dozer

1шт.

2

D33017

TRUNNION

CAP - "C" frame

2шт.

3

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- "C" frame

8шт.

4

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- "C" frame

2шт.

4a

D32805

BAR - slide

2шт.

5

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

6

D33001

SHIM

- 1/32" thick

1шт.

7

D32977

TRUNNION - push

2шт.

8

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

9

D32925

PLATE - rub

2шт.

10

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

4шт.

11

D33914

PIN - mounting

2шт.

12

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

13

D32979

GUARD - angling cylinder, LH

1шт.

14

D32980

GUARD - angling cylinder, RH

1шт.

15

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

8шт.

16

92-8

LOCK WASHER,1/2"

8шт.

16a

195-33

WASHER,1/2"

- plain (17/32")

8шт.

17

D32986

CYLINDER

- hydraulic, dozer angling (Parts list Fig. 242)

2шт.

18

NLS

NO LONGER SERVICED

ASSEMBLY - slide (Not illustrated)

2шт.

19

NSS

NOT SOLD SEPARAT

CAP - slide bracket

1шт.

20

NSS

NOT SOLD SEPARAT

BRACKET - slide

1шт.

21

D32803

SHIM

1шт.

22

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

23

92-8

LOCK WASHER,1/2"

4шт.

24

D32806

STRIP

WEAR STRIP - slide bracket

4шт.

25

D33030

BRACKET

- strut, RH

1шт.

26

D33031

- strut, LH

1шт.

27

D32802

BOLT

- special

2шт.

28

25-2316

SLOTTED NUT

- hex. castle (1" - 14 NF)

2шт.

29

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

30

D32800

STRUT

- upper

2шт.

31

D32793

SCREW - strut, eye

1шт.

32

NSS

NOT SOLD SEPARAT

TURNBUCKLE

1шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

1шт.

34

D32799

SCREW - strut, yoke

1шт.

35

D32774

STRUT

- lower

2шт.

36

D32976

GASKET

JOINT - universal, moldboard mounting (When stock is exhausted, use D35443 joint for service)

4шт.

D35443

UNIVERSAL JOINT

JOINT - universal, moldboard mounting

4шт.

37

D32932

PIN,31.75mm OD x 112.78mm L

- universal and lift cylinder mounting

6шт.

38

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

12шт.

39

D32933

PIVOT PIN,31.75mm OD x 127mm L

PIN - universal and lift cylinder mounting

6шт.

40

D26918

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

12шт.

41

D32845

CYLINDER

- hydraulic, dozer lift (RH) Parts list Fig. 244

1шт.

42

D32844

CYLINDER - hydraulic, dozer lift (LH) Parts list Fig. 244

1шт.

43

D24497

TRUNNION

- lift cylinder

2шт.

44

D28481

PLUG

- ball retaining

2шт.

45

211-17

BALL,3/4" Dia

- trunnion retaining

38шт.

46

D28482

PIN

- lift cylinder mounting

4шт.

47

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8" - 16 NC x 3"

4шт.

48

92-6

LOCK WASHER,3/8"

4шт.

49

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

50

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

6шт.

52

D33025

PIN

- moldboard mounting

1шт.

51

D32926

UNIVERSAL JOINT

JOINT - universal, lift cylinder to "C" frame

2шт.

53

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

53a

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

2шт.

54

D32964

MOLDBOARD - angling dozer, 110"

1шт.

55

D32945

EDGE

BLADE - center cutting

1шт.

56

70375

SHARE

BLADE - end cutting, RH

1шт.

57

70376

BLADE

- end cutting, LH

1шт.

58

19-1032

BOLT,5/8" - 11 x 2", Gr 5

- plow, 5/8" - 11 NC x 2"

27шт.

59

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

27шт.

60

25-1010

NUT,5/8"-11, G5

27шт.

61

D33024

BUSHING,51.02mm ID x 63.5mm OD x 25.4mm L

- moldboard

2шт.

62

D32789

BUSHING,31.98mm ID x 41.27mm OD x 19.05mm L

- moldboard

8шт.

63

D32895

RING

- swivel retaining

1шт.

64

864-10090

HEX SOC SCREW,M10 x 90mm, Cl 8.8

PLATE - swivel backing

1шт.

65

D32942

HYDRAULIC SWIVEL

SWIVEL ASSEMBLY - moldboard

1шт.
