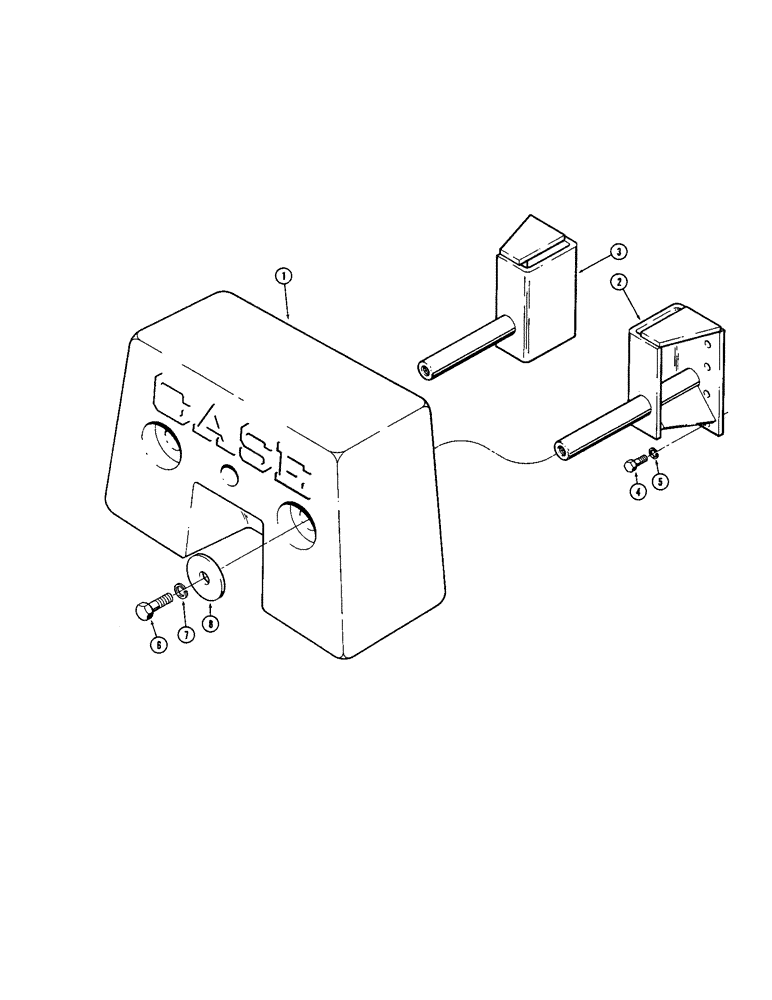

Запчасти Case 750 (186) - LOADER COUNTERWEIGHT, COUNTERWEIGHT (1800 LBS.) (05) - UPPERSTRUCTURE CHASSIS

1

R17606

COUNTERWEIGHT - 1800 lbs.

1шт.

2

D30431

BRACKET - counterweight mounting, RH

1шт.

3

D30430

BRACKET - counterweight mounting, LH

1шт.

4

14-1024

BOLT,Hex, 5/8" - 18 x 1-1/2", Gr 5

(If used) Hex, 5/8"-18 x 1 1/2", G5

8шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

(If used) Hex, 5/8"-11 x 1 1/2", G5, Full Thd

8шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

14-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 5

HHCS - 3/4" - 16 NF x 2-1/2"

2шт.

7

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

R17607

WASHER

- special

2шт.
