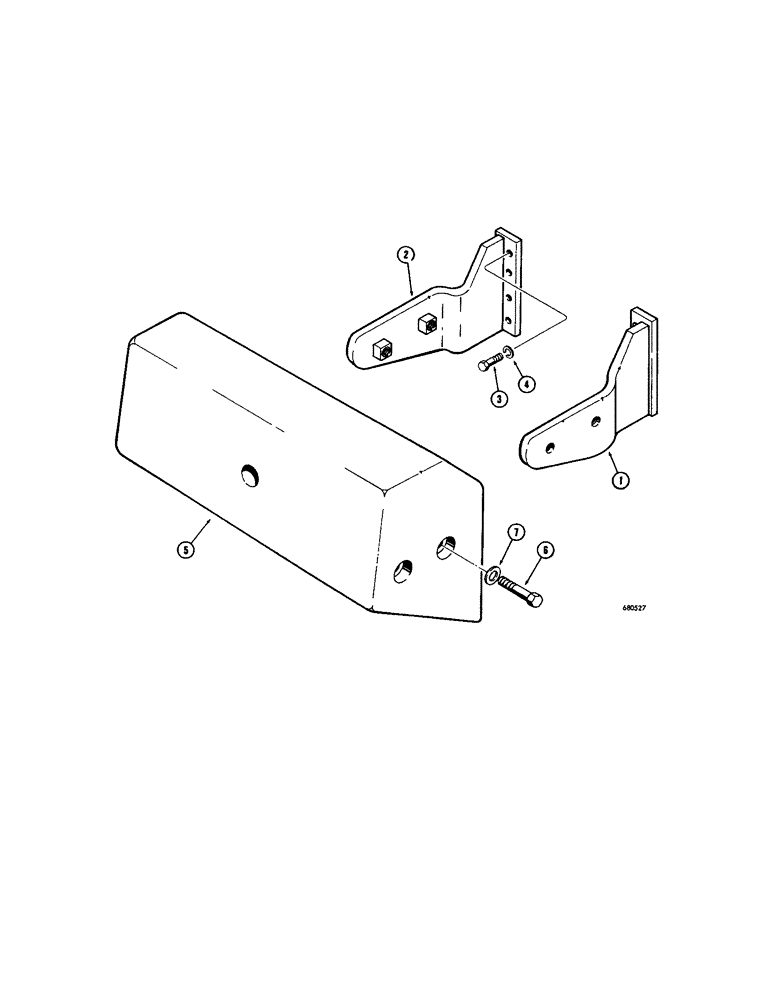

Запчасти Case 750 (186[1]) - COUNTERWEIGHT (2500 LBS.) (05) - UPPERSTRUCTURE CHASSIS

1

D41072

BRACKET

- mounting, RH

1шт.

2

D41071

BRACKET

- mounting, LH

1шт.

3

13-1224

BOLT,Hex, 3/4" - 10 x 1-1/2", Gr 5

8шт.

4

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

8шт.

5

D38567

COUNTERWEIGHT - rear, 2500 lbs.

1шт.

6

13-1696

BOLT,Hex, 1" - 8 x 6", Gr 5

4шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- special

4шт.
