Запчасти Case 750 (182) - ULRICH MULTI-PURPOSE BUCKET (05) - UPPERSTRUCTURE CHASSIS

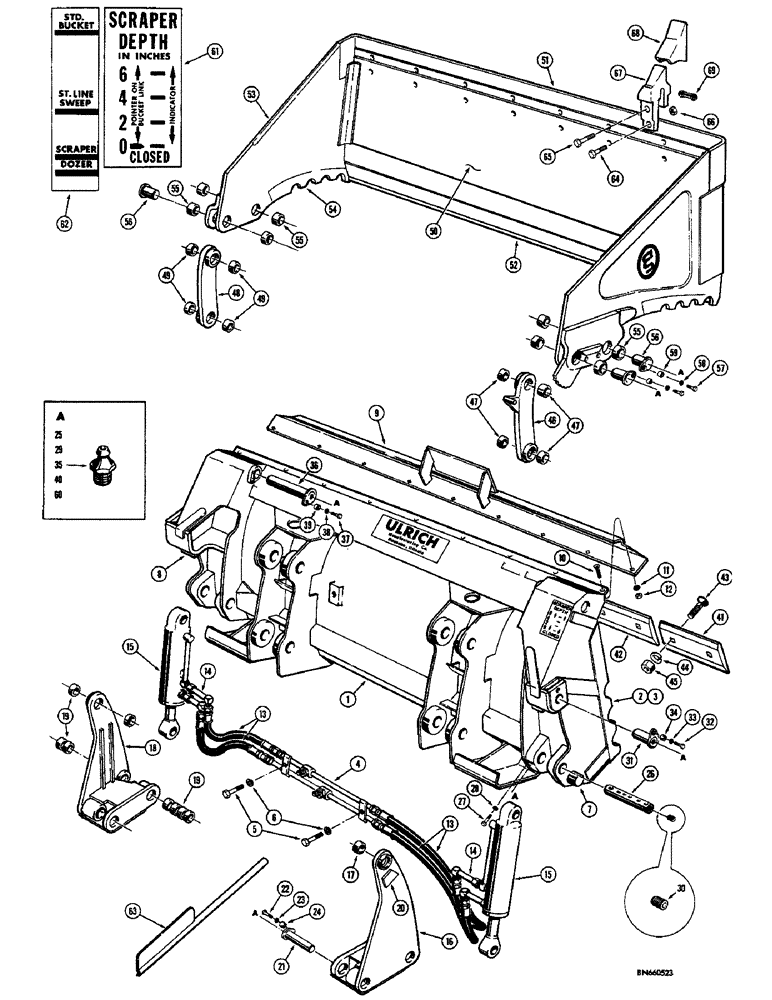

Схема запчастей Case 750 - (182) - ULRICH MULTI-PURPOSE BUCKET (05) - UPPERSTRUCTURE CHASSIS
19
61
47
42
22
45
69
55
53
29
8
35
6
51
5
34
23
32
56
2
31
13
65
25
55
64
30
47
46
18
50
11
40
55
43
3
13
63
15
1
17
28
66
58
9
33
41
37
44
49
10
60
7
57
14
36
49
24
38
62
39
15
68
54
26
14
12
19
56
67
48
59
27
20
16
52
21
4

Артикул

Название

Примечание

Количество

D39243

ULRICH BUCKET - without teeth (1-1/4 cu. yard) Machinery item

1шт.

D39341

BLADE ASSEMBLY - bucket

1шт.

1

NSS

NOT SOLD SEPARAT

BLADE - bucket

1шт.

2

D39439

WEAR BAR - blade, RH

1шт.

3

D39438

WEAR BAR - blade, LH

1шт.

4

D39083

TUBE - valve to clam cylinder

1шт.

5

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

D39339

STOP - clam

2шт.

8

D40746

STOP - bellcrank

2шт.

9

D40747

SPILL GUARD - blade

1шт.

10

21-616

BOLT - step, 1" - 16 NC x 3/8"

8шт.

11

92-6

LOCK WASHER,3/8"

8шт.

12

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

8шт.

13

D39081

HOSE ASSY.

HOSE - tube to clam cylinder (19-1/2")

4шт.

14

D38877

ELBOW - special, 90 degrees

4шт.

15

D39349

CYLINDER - hydraulic (Parts list Fig. 240)

2шт.

16

D39433

BELLCRANK - RH

1шт.

17

D39336

BUSHING - bellcrank

8шт.

18

D39354

BELLCRANK - LH

1шт.

19

D39336

BUSHING - bellcrank

8шт.

20

D39346

STOP BLOCK - clam

2шт.

21

D39424

PIN -, Serial Range: bellcrank-cylinder

2шт.

22

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

23

92-8

LOCK WASHER,1/2"

2шт.

24

D40607

BUSHING - pin bolt

2шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

26

D39337

PIN -, Serial Range: bellcrank-blade

2шт.

27

13-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

2шт.

28

92-8

LOCK WASHER,1/2"

2шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

30

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex. socket head (3/8" NPT)

2шт.

31

D39427

PIN -, Serial Range: link-blade

2шт.

32

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

33

92-8

LOCK WASHER,1/2"

2шт.

34

D40607

BUSHING - pin bolt

2шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

36

D39426

PIN -, Serial Range: blade-cylinder

2шт.

37

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

38

92-8

LOCK WASHER,1/2"

2шт.

39

D40607

BUSHING - pin bolt

2шт.

40

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

41

D39054

POINT

CUTTING EDGE - end

2шт.

42

D39353

CUTTING EDGE - center

1шт.

43

19-1236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 5

BOLT - plow (3/4" - 10 NC x 2-1/4")

12шт.

44

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

12шт.

45

25-1012

NUT,3/4"-10, G5

12шт.

46

D39335

LINK - blade to clam, RH

1шт.

47

D39336

BUSHING - link

4шт.

48

D39437

LINK - blade to clam, LH

1шт.

49

D39336

BUSHING - link

4шт.

D39432

CLAM ASSEMBLY - bucket

1шт.

50

NSS

NOT SOLD SEPARAT

CLAM - bucket

1шт.

51

D39443

CUTTING EDGE - center, front

1шт.

52

D39441

CUTTING EDGE - center, rear

1шт.

53

D39345

CUTTING EDGE - side, front

2шт.

54

D39343

CUTTING EDGE - side, rear

2шт.

55

D39336

BUSHING - clam

8шт.

56

D39425

SHIFTER ROLLER

PIN - link and, Serial Range: bellcrank-clam

4шт.

57

13-814

BOLT,Hex, 1/2" - 13 x 7/8", Gr 5, Full Thd

Hex 1/2"-13 x 7/8", G5, Full Thd

4шт.

58

92-8

LOCK WASHER,1/2"

4шт.

59

D40607

BUSHING - pin bolt

4шт.

60

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

61

D39064

DECAL - scraper depth

1шт.

62

D39428

DECAL - bucket position indicator

1шт.

63

D39070

TUBE - position indicator

1шт.

D41315

TOOTH SET - bucket (Machinery item), optional

1шт.

64

14-1064

BOLT,Hex, 5/8" - 18 x 4", Gr 5

HHCS - 5/8" - 18 NF x 4", bucket teeth optional

7шт.

65

14-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 5

HHCS - 5/8" - 18 NF x 3", bucket teeth optional

7шт.

66

131-13

LOCK NUT,5/8"-18, GB

NUT - hex., lock (5/8" - 18 NF), bucket teeth optional

14шт.

D41370

TOOTH ASSEMBLY - bucket, optional

7шт.

67

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

68

D39090

POINT

- tooth, bucket optional

1шт.

69

D39448

PIN

FLEX PIN - point, bucket teeth optional

1шт.

Выбрано товаров: 74
