Запчасти Case 750 (178) - ULRICH MULTI-PURPOSE BUCKET (05) - UPPERSTRUCTURE CHASSIS

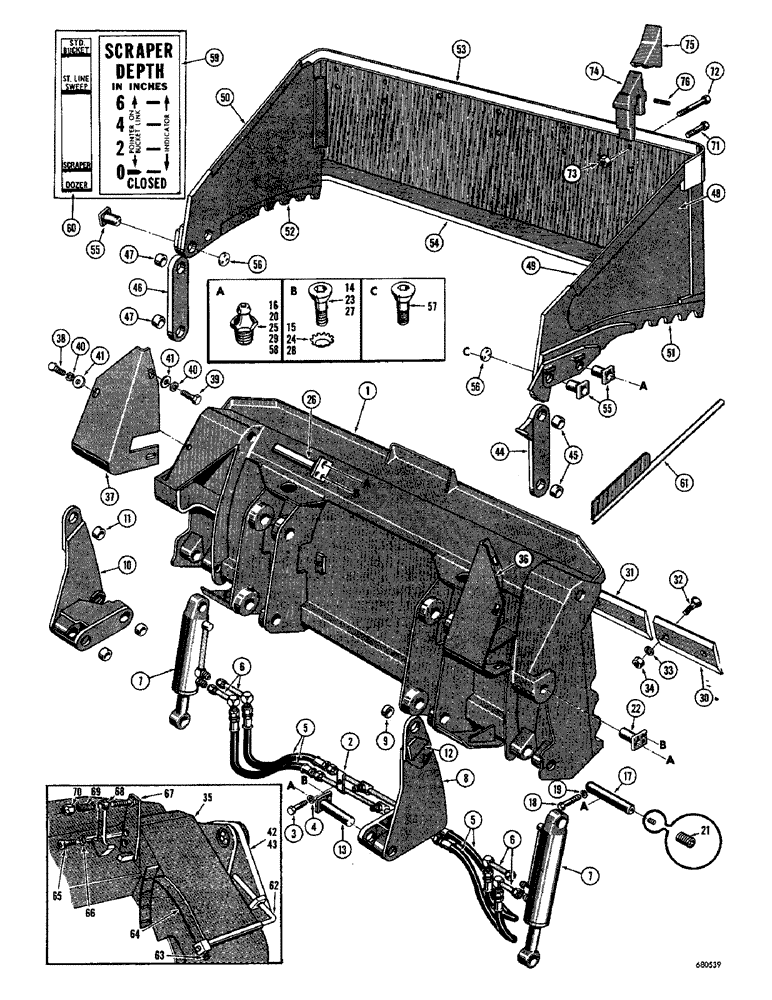

Схема запчастей Case 750 - (178) - ULRICH MULTI-PURPOSE BUCKET (05) - UPPERSTRUCTURE CHASSIS
35
47
22
38
24
3
73
62
9
45
49
2
75
41
34
70
68
63
6
42
48
54
58
72
14
21
30
57
47
43
44
67
74
53
32
55
17
5
12
26
46
40
28
52
41
71
4
11
16
65
66
39
5
61
15
51
36
16
50
59
25
31
56
56
20
64
23
18
60
37
27
6
1
40
7
7
29
33
19
13
55
10
69
8

Артикул

Название

Примечание

Количество

D12257

ULRICH BUCKET - Ulrich, 1-1/8 cu. yard (Machinery item)

1шт.

1

D39080

BLADE ASSEMBLY - bucket

1шт.

2

D39083

TUBE - valve to clam cylinder

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

1шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

D39081

HOSE ASSY.

HOSE - tube to clam cylinders (19-1/2" long)

4шт.

6

D38877

ELBOW - 90 degree special

4шт.

7

D38853

HYDRAULIC CYLINDER

CYLINDER - hydraulic, clam (Parts list Fig. 238)

2шт.

8

D38850

BELL CRANK - RH

1шт.

9

D38849

BUSHING

- bell crank

4шт.

10

D38848

BELLCRANK

BELL CRANK - LH

1шт.

11

D38849

BUSHING

- bell crank

4шт.

12

D39065

STOP BLOCK - clam

2шт.

13

D39060

PIN - bell, Serial Range: crank-cylinder

2шт.

14

164-70

SCREW,Flat Hd, 1/2" - 13 x 3/4"

- flat head hex. socket (1/2" - 13 NC x 3/4")

4шт.

15

193-55

WASHER,Ext Csk Tooth, 1/2"

- Shakeproof lock (1/2")

4шт.

16

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

17

D39062

PIN - bell, Serial Range: crank-blade

2шт.

18

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

2шт.

19

92-8

LOCK WASHER,1/2"

2шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

21

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, hex. socket head (3/8" NPT)

2шт.

22

D39061

PIN -, Serial Range: link-blade

2шт.

23

164-70

SCREW,Flat Hd, 1/2" - 13 x 3/4"

- flat head hex. socket (1/2" - 13 NC x 3/4")

4шт.

24

193-55

WASHER,Ext Csk Tooth, 1/2"

- Shakeproof lock (1/2")

4шт.

25

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

26

D39059

PIN -, Serial Range: blade-cylinder

2шт.

27

164-70

SCREW,Flat Hd, 1/2" - 13 x 3/4"

- flat head hex. socket (1/2" - 13 NC x 3/4")

4шт.

28

193-55

WASHER,Ext Csk Tooth, 1/2"

- Shakeproof lock (1/2")

4шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

2шт.

30

D39054

POINT

CUTTING EDGE - end

2шт.

31

D39074

CUTTING EDGE - center

1шт.

32

19-1240

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/2", Gr 5

BOLT - plow (3/4" - 10 NC x 2-1/2")

11шт.

33

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

11шт.

34

25-1012

NUT,3/4"-10, G5

11шт.

35

D39057

GUARD - cylinder, RH (Used before bucket serial no. 108M13-812)

1шт.

36

D39184

GUARD - cylinder, RH (Used on bucket serial no. 108M13-812 and after)

1шт.

37

D39056

GUARD - cylinder, LH

1шт.

38

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

6шт.

39

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

40

92-8

LOCK WASHER,1/2"

8шт.

41

95-8

WASHER,1/2"

- standard wrot 1/2"

8шт.

42

D38852

LINK - blade to clam, RH (Used before bucket serial no. 108M13-812)

1шт.

43

D38849

BUSHING

- link

2шт.

44

D39182

LINK - blade to clam, RH (Used on bucket serial no. 108M13-812 and after)

1шт.

45

D38849

BUSHING

- link

2шт.

46

D38851

LINK - blade to clam, LH

1шт.

47

D38849

BUSHING

- link

2шт.

48

D39075

CLAM ASSEMBLY - bucket

1шт.

49

D39077

WEAR BAR - clam front, RH

1шт.

50

D39076

WEAR BAR - clam front, LH

1шт.

51

D38875

CUTTING EDGE - clam rear, RH

1шт.

52

D38874

CUTTING EDGE - clam rear, LH

1шт.

53

D38873

CUTTING EDGE - front

1шт.

54

D39078

CUTTING EDGE - rear

1шт.

55

D39063

PIN

- link and bell crank to clam

4шт.

56

D39058

PLATE

RETAINING PLATE - pin

4шт.

57

164-98

HEX SOC SCREW,Prev Torque, Flat Hd, 3/8" - 16 x 3/4"

SCREW - flat head hex. socket (3/8" - 16 NC x 3/4")

12шт.

58

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease (1/8" NPT)

4шт.

59

D39064

DECAL - scraper depth

1шт.

60

D39068

DECAL - bucket position indicator

1шт.

61

D39070

TUBE - position selector

1шт.

62

D39067

ROD - depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

1шт.

63

83-66

SET SCREW,Hex Soc, 3/8"-16 x 3/8"

SHSS - 3/8" - 16 NC x 3/8", depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

1шт.

64

D39066

POINTER - depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

1шт.

65

61-45016.

SCREW - flat head hex. socket (1/2" - 13 NC x 1-1/4"), depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

2шт.

66

193-55

WASHER,Ext Csk Tooth, 1/2"

- Shakeproof lock (1/2"), depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

2шт.

D39050

BOB ASSEMBLY - bucket leveling, depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

1шт.

67

D39051

BRACKET - depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

1шт.

68

D39052

depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

1шт.

69

D39053

SPRING - compression, depth indicator & leveling bob (used b4 bucket s/n 108mb13-812)

1шт.

70

131-10

NUT,1/2"-13, GB

NUT, LOCK, , Depth indicator & leveling bob (used b4 bucket S/N 108mb13-812) 1/2"-13, GB

1шт.

D12259

TOOTH SET - bucket, machinery item, optional

1шт.

71

14-1044

BOLT,Hex, 5/8" - 18 x 2-3/4", Gr 5

HHCS - 5/8" - 18 NF x 2-3/4", bucket teeth optional

7шт.

72

14-1060

BOLT,Hex, 5/8" - 18 x 3-3/4", Gr 5

HHCS - 5/8" - 18 NF x 3-3/4", bucket teeth optional

7шт.

73

131-13

LOCK NUT,5/8"-18, GB

NUT - hex, lock (5/8" - 18 NF), bucket teeeth optional

14шт.

D40202

TOOTH ASSEMBLY - bucket, optional

7шт.

74

NSS

NOT SOLD SEPARAT

SHANK - tooth, bucket optional

1шт.

75

D39090

POINT

- tooth, bucket optional

1шт.

76

D39448

PIN

FLEX PIN - point, bucket teeth optional

1шт.
