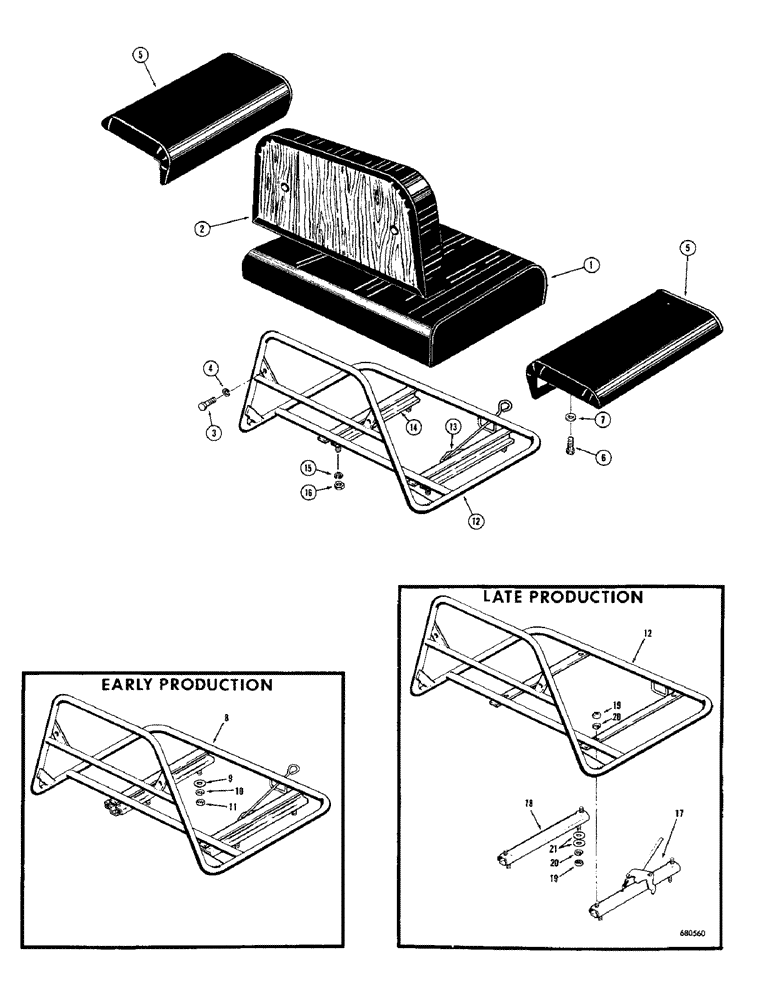

Запчасти Case 750 (168) - SEAT FRAME AND CUSHIONS (05) - UPPERSTRUCTURE CHASSIS

1

R15484

CUSHION

- seat

1шт.

2

R15541

CUSHION - back

1шт.

3

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

R18424

CUSHION

- arm and hip

2шт.

6

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

7

195-18

WASHER,1/4"

- plain, 1/4"

4шт.

8

R15507

X

FRAME - seat (When stock is exhausted, order 1 - D31750 seat frame, 1 - D29993 slide, 1 - D29994 slide, and 8 - 195-21 plain washers, 4 - 25-115 nuts and 4 - 92-5 lock washers for service), early production

1шт.

9

195-21

WASHER,5/16"

- plain (), Early production 5/16"

4шт.

10

92-5

LOCK WASHER,5/16"

early production 5/16"

4шт.

11

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), early production

4шт.

12

D31750

FRAME - seat, intermediate production

1шт.

13

D29994

X

SLIDE AND LATCH - seat, intermediate production

1шт.

14

D29993

SLIDE

- seat, intermediate production

1шт.

15

92-5

LOCK WASHER,5/16"

intermediate production 5/16"

8шт.

16

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), intermediate production

8шт.

17

D40237

SLIDE

AND LATCH - seat, late production

1шт.

18

40238

BRACKET

SLIDE - seat, late production

1шт.

19

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF), late production

8шт.

20

92-5

LOCK WASHER,5/16"

late production 5/16"

8шт.

21

195-21

WASHER,5/16"

- plain (), Late production 5/16"

8шт.
