Запчасти Case 750 (164) - SEAT AND TANK (05) - UPPERSTRUCTURE CHASSIS

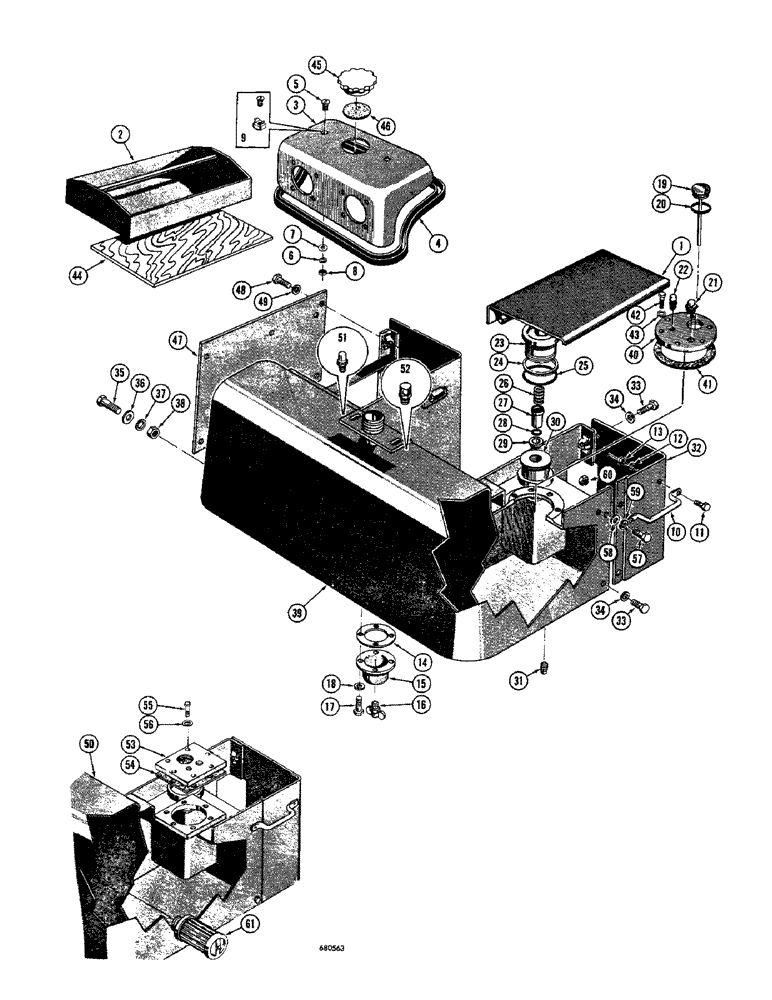

Схема запчастей Case 750 - (164) - SEAT AND TANK (05) - UPPERSTRUCTURE CHASSIS
33
15
60
2
26
45
11
27
41
58
19
48
40
9
33
52
36
18
13
16
61
23
46
32
57
34
14
7
47
42
55
5
8
49
22
51
17
29
53
1
56
59
3
6
12
43
54
30
20
31
10
35
25
44
38
37
39
50
21
34
28
24
4

Артикул

Название

Примечание

Количество

1

R18435

COVER - battery and hydraulic tank

2шт.

2

R18454

BOX - tool

1шт.

3

R18922

HOUSING - rear light

1шт.

4

R22503

CHANNEL - rubber

1шт.

5

74-620

FHMS - 3/8" - 24 NF x 1-1/2" (D30333 tank only)

2шт.

74-612

SCREW,3/8" - 24 x 3/4"

FHMS - 3/8" - 24 NF x 3/4" (D31770 tank only)

2шт.

6

92-6

LOCK WASHER,3/8"

2шт.

7

195-25

WASHER,3/8"

- plain () 3/8"

2шт.

8

25-116

NUT,Hex, 3/8"-24, G5

- hex. (3/8" - 24 NF)

2шт.

9

131-144

NUT,Ret, 3/8"-24

- retainer

2шт.

10

70248

LEVER

HANDLE - grab

2шт.

11

14-512

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd

4шт.

12

92-5

LOCK WASHER,5/16"

4шт.

13

25-115

NUT,5/16"-24, G5

- hex (5/16"-24 NF)

4шт.

14

35621

GASKET

- drain cover

1шт.

15

34574

BUSHING,35.09mm ID x 44.5mm OD x 76.2mm L

COVER - drain, fuel tank

1шт.

16

217-81

VALVE

DRAIN COCK - fuel (1/8" NPT)

1шт.

17

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

R18636

DIPSTICK - gauge, hydraulic tank

1шт.

20

A7552

O-RING,0.21" Thk x 1.975" ID, -329, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

21

R15538

VALVE

- air inlet, hydraulic tank

1шт.

22

R15536

VALVE

- relief, hydraulic tank

1шт.

23

D31214

CAP

- hydraulic oil filter

1шт.

24

D36095

BACK-UP RING

WASHER - backup

1шт.

25

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

26

D31212

SPRING

- filter retaining

1шт.

27

D37207

VALVE

- relief

1шт.

28

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "o" ring

1шт.

29

D32345

WASHER - filter

1шт.

30

D32346

FILTER, ELEMENT

ELEMENT - filter

1шт.

31

221-844

PLUG,Hex Soc, 1/2"-14

- pipe, hex. head socket (1/2" NPT)

1шт.

32

D30339

PLATE COVER - equipment control valve

1шт.

33

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4"

2шт.

34

92-8

LOCK WASHER,1/2"

2шт.

35

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 4-1/2" (D30333 tank)

8шт.

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 20 NF x 1-1/2" (D31770 tank)

7шт.

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4" (D31770 tank)

1шт.

36

195-33

WASHER,1/2"

- plain () 1/2"

8шт.

37

92-8

LOCK WASHER,1/2"

8шт.

38

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

8шт.

39

D30333

SEAT AND TANK - when stock is exhausted, order D31770 seat and tank for service and all parts listed after D13770 seat and tank, see below, used before trac s.n 7070473

1шт.

40

R16427

COVER - hydraulic tank (Use with D30333 seat and tank), used before trac s.n 7070473

1шт.

41

R14032

GASKET - cover (Use with D30333 seat and tank), used before trac s.n 7070473

1шт.

42

14-816

BOLT,Hex, 1/2" - 20 x 1", Gr 5

HHCS - 1/2" - 20 NF x 1" (Use with D30333 seat and tank), used before trac s.n 7070473

6шт.

43

92-8

LOCK WASHER,1/2"

Use with D30333 seat and tank, used before trac s.n 7070473 1/2"

6шт.

44

R19355

BOARD - bottom, tool tank (Use with D30333 seat and tank), used before trac s.n 7070473

1шт.

45

R18545

CAP

- fuel tank (Use with D30333 seat and tank), used before trac s.n 7070473

1шт.

46

R20846

GASKET - fuel cap (Use with D30333 seat and tank), used before trac s.n 7070473

1шт.

47

R19356

PLATE - cover, battery (Used with D30333 seat and tank), used before trac s.n 7070473

1шт.

48

14-612

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd

(Use with D30333 seat and tank), used before tractor S/N 7070473 Hex, 3/8"-24 x 3/4", G5, Full Thd

4шт.

49

92-6

LOCK WASHER,3/8"

use with D30333 seat and tank, used before trac s.n 7070473 3/8"

4шт.

50

D31770

SEAT AND TANK, used on trac s.n 7070473 & after

1шт.

44

D31748

BOARD - bottom, tool box (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

45

D31747

COVER

CAP - fuel tank (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

46

D31751

GASKET - fuel cap (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

47

D31749

PLATE - cover, battery (Use D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

48

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4" (Use on D31770 seat and tank), used on trac s.n 7070473 & after

4шт.

49

92-8

LOCK WASHER,1/2"

Use on D31770 seat and tank, used on trac s.n 7070473 & after 1/2"

4шт.

51

D33027

BREATHER

VALVE - air inlet, fuel tank (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

52

D33028

VALVE

- relief, fuel tank (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

53

D32516

COVER - hydraulic tank (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

54

D32515

GASKET - hydraulic tank (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

55

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

(Use on D31770 seat and tank), used on tractor S/N 7070473 & after Hex, 1/2"-13 x 1", G5, Full Thd

6шт.

56

92-8

LOCK WASHER,1/2"

Use on D31770 seat and tank, used on trac s.n 7070473 & after 1/2"

6шт.

57

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 3/4" (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

58

195-33

WASHER,1/2"

- plain () Use D31770 seat and tank, used on trac s.n 7070473 & after 1/2"

1шт.

59

92-8

LOCK WASHER,1/2"

Use on D31770 seat and tank, used on trac s.n 7070473 & after 1/2"

1шт.

60

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC) Use on D31770 seat and tank, used on trac s.n 7070473 & after

1шт.

61

D33557

FILTER, ELEMENT

FILTER - hydraulic oil, suction line (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

D31782

FIXING BRACKET

CLAMP - battery cable (See Fig. 42) Use on D31770 seat and tank, used on trac s.n 7070473 & after

1шт.

49564

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- tank (See Fig. 42) Use on D31770 seat and tank, used on trac s.n 7070473 & after

2шт.

D31773

FUEL LINK - see Fig. 34 (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

D31774

FUEL LINE - see Fig. 34 (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

221-11

PLUG,Sq Hd, 1/8"-27

- pipe (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

221-13

PLUG,Sq Hd, 3/8"-18

- pipe (Use on D31770 seat and tank), used on trac s.n 7070473 & after

1шт.

Выбрано товаров: 76
