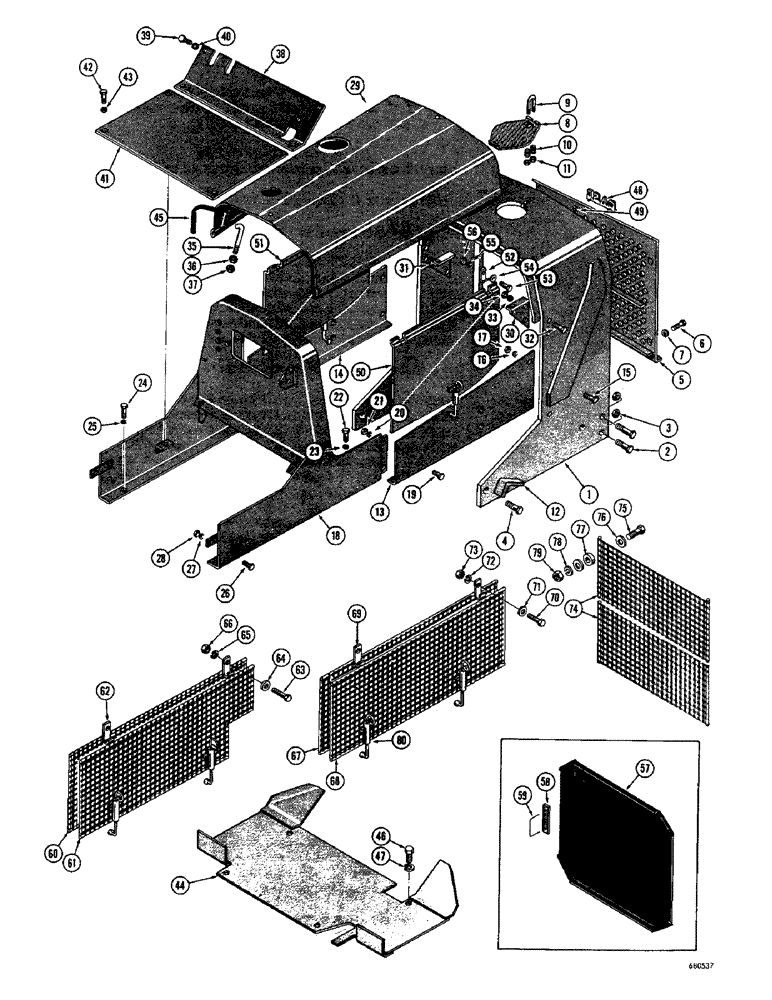

Запчасти Case 750 (160) - HOOD, SHROUD, COWL, DASH AND SIDE SHIELDS (05) - UPPERSTRUCTURE CHASSIS
№
Артикул
Название
Примечание
Количество
1
D30456
GUARD - radiator (Loader models)
1шт.
D31318
GUARD - radiator (Drawbar models)
1шт.
D31316
GUARD - radiator (Dozer models)
1шт.
2
13-1240
BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5
6шт.
3
25-1012
NUT,3/4"-10, G5
6шт.
5
D30467
GRILL - radiator
1шт.
6
13-1016
BOLT,Hex, 5/8" - 11 x 1", Gr 5, Full Thd
4шт.
7
95-10
WASHER,5/8"
- standard wrot () 5/8"
4шт.
8
D30074
LID
- radiator
1шт.
9
D29688
U-BOLT
"U" BOLT - radiator lid
1шт.
10
23098
SPRING
- radiator lid
2шт.
11
131-365
LOCK NUT
NUT - lock (5/16" - 24 NF)
2шт.
12
R20486
STOP BLOCK - loader
2шт.
13
R19240
PANEL - engine side shield, RH
1шт.
14
R19239
PANEL - engine side shield, LH
1шт.
15
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2" - 20 NF x 1-1/2"
4шт.
16
92-8
LOCK WASHER,1/2"
4шт.
17
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
4шт.
18
D30327
COWL
1шт.
19
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2" - 20 NF x 1"
4шт.
20
92-8
LOCK WASHER,1/2"
4шт.
21
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
4шт.
22
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2" - 20 NF x 1-1/2"
3шт.
23
92-8
LOCK WASHER,1/2"
3шт.
24
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
HHCS - 1/2" - 20 NF x 1-3/4"
1шт.
25
92-8
LOCK WASHER,1/2"
1шт.
26
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2" - 20 NF x 1-1/4"
2шт.
27
92-8
LOCK WASHER,1/2"
2шт.
28
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
2шт.
29
D30325
HOOD - engine
1шт.
30
D30331
HOLD DOWN - hood, RH
1шт.
31
D30332
ANGLE
HOLD DOWN - hood, LH
1шт.
32
14-824
BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5
HHCS - 1/2" - 20 NF x 1-1/2"
4шт.
33
92-8
LOCK WASHER,1/2"
4шт.
34
25-118
NUT,1/2"-20, G5
- hex. (1/2" - 20 NF)
4шт.
35
R17778
BOLT (SPREADER)
BOLT - special
4шт.
36
25-146
JAM NUT,Jam, 3/8"-16, G5
- jam (3/8" - 16 NC)
4шт.
37
R17777
NUT
- cone (3/8" - 16 NC)
4шт.
38
R19485
PLATE - floor, front
1шт.
39
14-816
BOLT,Hex, 1/2" - 20 x 1", Gr 5
HHCS - 1/2" - 20 NF x 1"
2шт.
40
92-8
LOCK WASHER,1/2"
2шт.
41
D30330
PLATE - floor, rear (Loader models only)
1шт.
42
14-820
BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5
HHCS - 1/2" - 20 NF x 1-1/4"
4шт.
43
92-8
LOCK WASHER,1/2"
4шт.
44
D32324
PLATE - floor, rear and side (Drawbar and dozer models only)
1шт.
45
D40442
MOLDING
QUICKEDGE
1шт.
46
14-828
BOLT,Hex, 1/2" - 20 x 1-3/4", Gr 5
HHCS - 1/2" - 20 NF x 1-3/4"
4шт.
47
92-8
LOCK WASHER,1/2"
4шт.
48
A11320
PLATE
NAME PLATE - Case
1шт.
49
A11319
X
NUT - Tinnerman
2шт.
50
R18902
SHIELD - engine side, RH
1шт.
51
R18901
SHIELD - engine side, LH
1шт.
52
R12427
CATCH
HOOK - shield
4шт.
53
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
4шт.
54
195-25
WASHER,3/8"
- plain () 3/8"
4шт.
55
92-6
LOCK WASHER,3/8"
4шт.
56
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
4шт.
57
R22137
SCREEN - radiator anti-sand blast (For use with pusher type fans)
1шт.
58
R14077
STRAP
- radiator guard
4шт.
59
R14078
ELECTRICAL WIRE
WIRE - tie
2шт.
60
R19517
SCREEN - brush, LH (Dozer models)
1шт.
61
R19518
SCREEN - brush, RH (Dozer models)
1шт.
62
R12427
CATCH
HOOK - screen
4шт.
63
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
4шт.
64
195-25
WASHER,3/8"
- plain () 3/8"
4шт.
65
92-6
LOCK WASHER,3/8"
4шт.
66
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
4шт.
67
R20505
SCREEN - brush, LH (Drawbar models)
1шт.
68
R20506
SCREEN - brush, RH (Drawbar models)
1шт.
69
R12427
CATCH
HOOK - screen
4шт.
70
14-612
BOLT,Hex, 3/8" - 24 x 3/4", Gr 5, Full Thd
4шт.
71
195-25
WASHER,3/8"
- plain () 3/8"
4шт.
72
92-6
LOCK WASHER,3/8"
4шт.
73
25-116
NUT,Hex, 3/8"-24, G5
- hex. (3/8" - 24 NF)
4шт.
74
D33469
SCREEN - brush, radiator
2шт.
75
13-628
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
12шт.
76
195-28
WASHER,3/8"
- plain (7/16")
24шт.
77
R20553
WASHER
SPACER - screen
12шт.
78
92-6
LOCK WASHER,3/8"
12шт.
79
25-106
NUT,3/8"-16, G5
- hex. (3/8" - 16 NC)
12шт.
80
R12435
LATCH - sideshields and brush screens
1шт.
Выбрано товаров: 82
