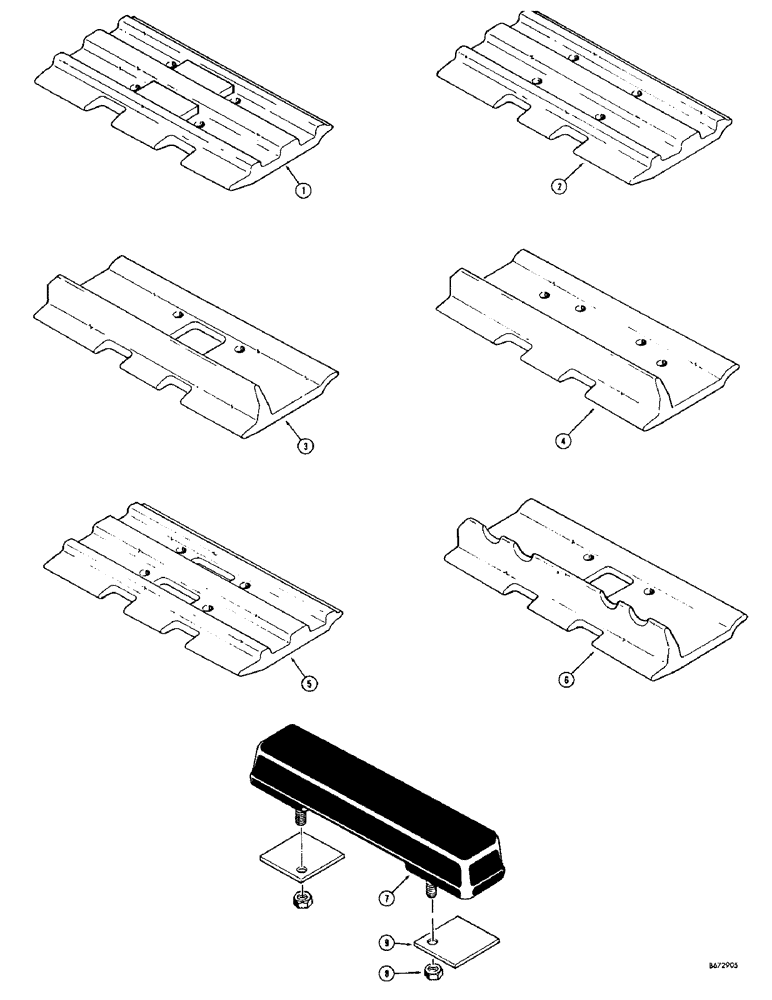

Запчасти Case 750 (158) - TRACK SHOES (OVER-LAPPING), USED ON DRAWBAR AND DOZER MODELS W/ TRAC. S/N 7071626 & AFTER (04) - UNDERCARRIAGE

1

D41578

TRACK SHOE

SHOE - track, 10 inch (All models)

76шт.

2

D41123

PLATE

SHOE - track, 12 inch (All models), semi grouser closed

76шт.

2

D41124

NO LONGER SERVICED

SHOE - track, 13 inch (All models except loader), semi grouser closed

72шт.

2

D41127

TRACK SHOE

SHOE - track, 14 inch offset (LH) Loader models only, semi grouser closed

38шт.

2

D41128

TRACK SHOE

SHOE - track, 14 inch offset (RH) Loader models only, semi grouser closed

38шт.

2

D41125

PLATE

SHOE - track, 15 inch (All models except loader), semi grouser closed

72шт.

2

D41126

TRACK SHOE

SHOE - track, 16 inch (All models except loader), semi grouser closed

72шт.

3

D41146

SHOE - track, 12 inch (All models except loader), semi grouser open center

72шт.

3

D41140

SHOE - track, 13 inch (All models except loader), semi grouser open center

72шт.

3

D41141

SHOE - track, 14 inch (All models except loader), semi grouser open center

72шт.

3

D41142

SHOE - track, 15 inch (All models except loader), semi grouser open center

72шт.

3

D41143

PLATE

SHOE - track, 16 inch (All models except loader), semi grouser open center

72шт.

3

D41144

TRACK SHOE

SHOE - track, 17 inch (Drawbar models only), semi grouser open center

72шт.

3

D41145

TRACK SHOE

SHOE - track, 18 inch (Drawbar models only), semi grouser open center

72шт.

4

D41131

SHOE - track, 12 inch (All models except loader), grouser closed

72шт.

4

D41132

TRACK SHOE

SHOE - track, 13 inch (All models except loader), grouser closed

72шт.

4

D41133

TRACK SHOE

SHOE - track, 14 inch (All models except loader), grouser closed

72шт.

4

D41134

PLATE

SHOE - track, 15 inch (All models except loader), grouser closed

72шт.

4

D41135

TRACK SHOE

SHOE - track, 16 inch (All models except loader), grouser closed

72шт.

4

D41136

TRACK SHOE

SHOE - track, 17 inch (Drawbar models only), grouser closed

72шт.

4

D41323

PLATE

SHOE - track, 20 inch (Drawbar models only), grouser closed

72шт.

5

D41116

TRACK SHOE

SHOE - track, 12 inch (All models), grouser ice

76шт.

5

D41117

PLATE

SHOE - track, 13 inch (All models except loader), grouser ice

72шт.

5

D41119

TRACK SHOE

SHOE - track, 14 inch offset (LH) Loader models only, grouser ice

38шт.

5

D41120

TRACK SHOE

SHOE - track, 14 inch offset (RH) Loader models only, grouser ice

38шт.

5

D41118

PLATE

SHOE - track, 15 inch (All models except loader), grouser ice

72шт.

5

D41121

TRACK SHOE

SHOE - track, 16 inch (All models except loader), grouser ice

72шт.

6

D41148

X

SHOE - track, 14 inch (All models except loader), , rubber

72шт.

6

D41149

SHOE - track, 15 inch (All models except loader), rubber

72шт.

6

D41150

TRACK SHOE

SHOE - track, 16 inch (All models except loader), rubber

72шт.

6

D41151

SHOE - track, 17 inch (Drawbar models only), rubber

72шт.

R3551

KIT

RUBBER TRACK SHOE INSTALLATION - used with D41133 and D41134 track shoes only

1шт.

7

70635

SHOE

- track, rubber

72шт.

8

R21548

X

NUT - hex., special, rubber track shoe

144шт.

9

R21166

SPACER

- shoe, rubber track

144шт.
