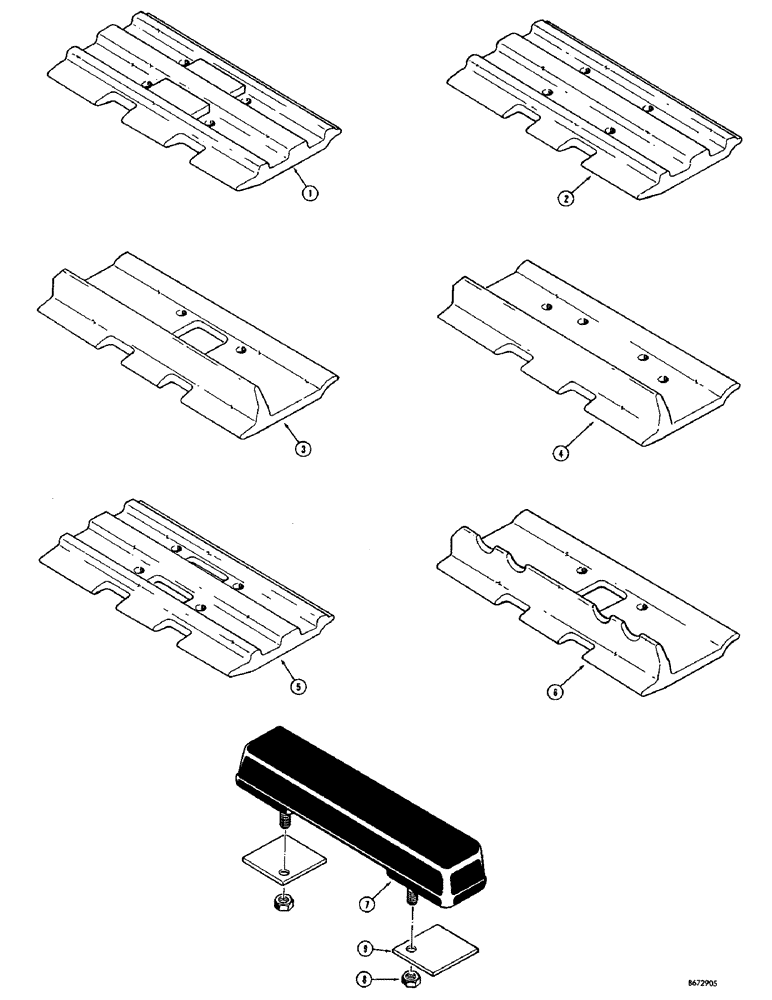

Запчасти Case 750 (156) - TRACK SHOES (OVER-LAPPING), USED ON DRAWBAR AND DOZER MODELS BEFORE TRAC. S/N 7071626 (04) - UNDERCARRIAGE

1

D42539

SHOE - track, 10 inch

72шт.

2

D42534

SHOE - track, 13 inch, semi grouser closed

72шт.

2

D42535

SHOE - track, 16 inch, semi grouser closed

72шт.

3

D42540

SHOE - track, 13 inch, semi grouser open center

72шт.

3

D42541

SHOE - track, 14 inch, semi grouser open center

72шт.

3

D42542

TRACK SHOE

SHOE - track, 16 inch, semi grouser open center

72шт.

3

D42545

SHOE - track, 18 inch (Drawbar models only), semi grouser open center

72шт.

4

D42536

SHOE - track, 14 inch, grouser closed

72шт.

4

D42537

TRACK SHOE

SHOE - track, 16 inch, grouser closed

72шт.

4

D42538

TRACK SHOE

SHOE - track, 18 inch (Drawbar models only), grouser closed

72шт.

5

D42532

TRACK SHOE

SHOE - track, 13 inch, rubber

72шт.

6

D42546

SHOE - track, 14 inch,. rubber

72шт.

6

D42547

TRACK SHOE

SHOE - track, 16 inch, rubber

72шт.

R3551

KIT

RUBBER TRACK SHOE INSTALLATION - use with D42536 and D42537 track shoes only

1шт.

7

70635

SHOE

- track, rubber

72шт.

8

R21548

X

NUT - hex., special, rubber track shoe

144шт.

9

R21166

SPACER

- shoe, rubber track

144шт.
