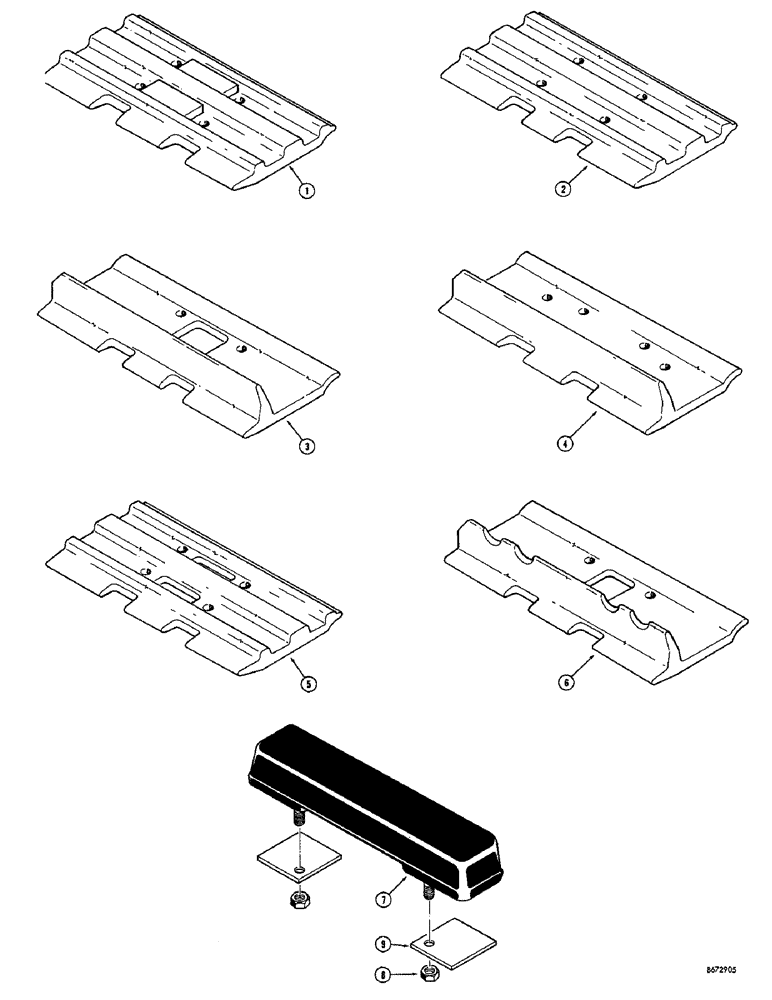

Запчасти Case 750 (154) - TRACK SHOES (NOTCH CUT), USED ON DRAWBAR AND DOZER MODELS W/ TRAC. S/N 7071626 & AFTER (04) - UNDERCARRIAGE

1

D38977

SHOE - track, 10 inch (All models)

76шт.

2

D38979

TRACK SHOE

SHOE - track, 12 inch (All models), semi grouser closed

76шт.

2

D38981

SHOE - track, 13 inch (All models except loader), semi grouser closed

72шт.

2

D39527

TRACK SHOE

SHOE - track, 14 inch offset (RH) Loader models only, semi grouser closed

38шт.

2

D39526

TRACK SHOE

SHOE - track, 14 inch offset (LH) Loader models only, semi grouser closed

38шт.

2

D38982

TRACK SHOE

SHOE - track, 15 inch (All models except loader), semi grouser closed

72шт.

2

D38984

TRACK SHOE

SHOE - track, 16 inch (All models except loader), semi grouser closed

72шт.

3

D39002

SHOE - track, 12 inch (All models except loader), semi grouser open center

72шт.

3

D39005

SHOE - track, 13 inch (All models except loader), semi grouser open center

72шт.

3

D39007

TRACK SHOE

SHOE - track, 14 inch (All models except loader), semi grouser open center

72шт.

3

D39008

TRACK SHOE

SHOE - track, 15 inch (All models except loader), semi grouser open center

72шт.

3

D39010

TRACK SHOE

SHOE - track, 16 inch (All models except loader), semi grouser open center

72шт.

3

D39011

SHOE - track, 17 inch (Drawbar models only), semi grouser open center

72шт.

3

D39015

TRACK SHOE

SHOE - track, 18 inch (Drawbar models only), semi grouser open center

72шт.

4

D38991

TRACK SHOE

SHOE - track, 12 inch (All models except loader), grouser closed

72шт.

4

D38992

SHOE - track, 13 inch (All models except loader), grouser closed

72шт.

4

D38994

TRACK SHOE

SHOE - track, 14 inch (All models except loader), grouser closed

72шт.

4

D38995

TRACK SHOE

SHOE - track, 15 inch (All models except loader), grouser closed

72шт.

4

D38997

TRACK SHOE

SHOE - track, 16 inch (All models except loader), grouser closed

72шт.

4

D38998

TRACK SHOE

SHOE - track, 17 inch (Drawbar models only), grouser closed

72шт.

4

D39000

SHOE - track, 18 inch (Drawbar models only), grouser closed

72шт.

4

D39001

SHOE - track, 20 inch (Drawbar models only), grouser closed

72шт.

5

D38986

SHOE - track, 12 inch (All models), grouser ice

76шт.

5

D38988

CASE

SHOE - track, 13 inch (All models except loader), grouser ice

72шт.

5

D39529

SHOE - track, 14 inch (RH) Loader models only, grouser ice

38шт.

5

D39528

SHOE - track, 14 inch offset (LH) Loader models only, grouser ice

38шт.

5

D38989

SHOE - track, 15 inch (All models except loader), grouser ice

72шт.

6

D39018

SHOE - track, 14 inch (All models except loader), rubber

72шт.

6

D39019

SHOE - track, 15 inch (All models except loader), rubber

72шт.

6

D39021

X

SHOE - track, 16 inch (All models except loader), rubber

72шт.

6

D39022

TRACK SHOE

SHOE - track, 17 inch (Drawbar models only), rubber

72шт.

R3551

KIT

RUBBER TRACK SHOES INSTALLATION - use with D38994 and D38995 track shoes only

1шт.

7

70635

SHOE

- rubber, track

72шт.

8

R21548

X

NUT - hex., lock (1/2" - 20 NF), rubber track shoe

144шт.

9

R21166

SPACER

- shoe, rubber track

144шт.
