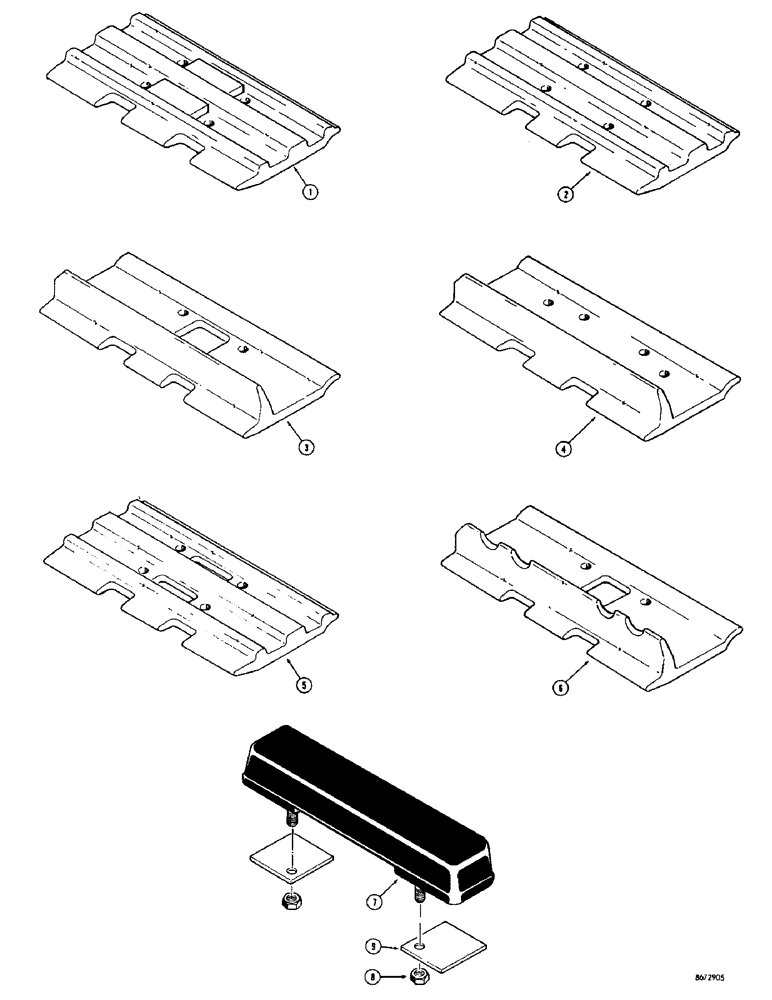

Запчасти Case 750 (152) - TRACK SHOES (NOTCH CUT), USED ON DRAWBAR AND DOZER MODELS BEFORE TRAC. S.N 7071626 (04) - UNDERCARRIAGE

1

D39041

SHOE - track, 10 inch

72шт.

2

D38980

SHOE - track, 13 inch, semi grouser closed

72шт.

2

D38983

TRACK SHOE

SHOE - track, 16 inch, semi grouser closed

72шт.

3

D39004

SHOE - track, 13 inch, semi grouser open center

72шт.

3

D39006

TRACK SHOE

SHOE - track, 14 inch, semi grouser open center

72шт.

3

D39009

SHOE - track, 16 inch, semi grouser open center

72шт.

3

D39014

TRACK SHOE

SHOE - track, 18 inch (Drawbar models only), semi grouser open center

72шт.

4

D38993

PLATE

SHOE - track, 14 inch, grouser closed

72шт.

4

D38996

SHOE - track, 16 inch, grouser closed

72шт.

4

D38999

TRACK SHOE

SHOE - track, 18 inch, grouser closed

72шт.

5

D38987

SHOE - track, 13 inch, grouser ice

72шт.

6

D39017

SHOE - track, 14 inch, grouser ice

72шт.

6

D39020

TRACK SHOE

SHOE - track, 16 inch, rubber

72шт.

R3551

KIT

RUBBER TRACK SHOE INSTALLATION - use with D38993 and D38996 track shoes only

1шт.

7

70635

SHOE

- rubber, track

72шт.

8

R21548

X

NUT - hex., lock (1/2" - 20 NF), rubber track shoe

144шт.

9

R21166

SPACER

- shoe, rubber track

144шт.
