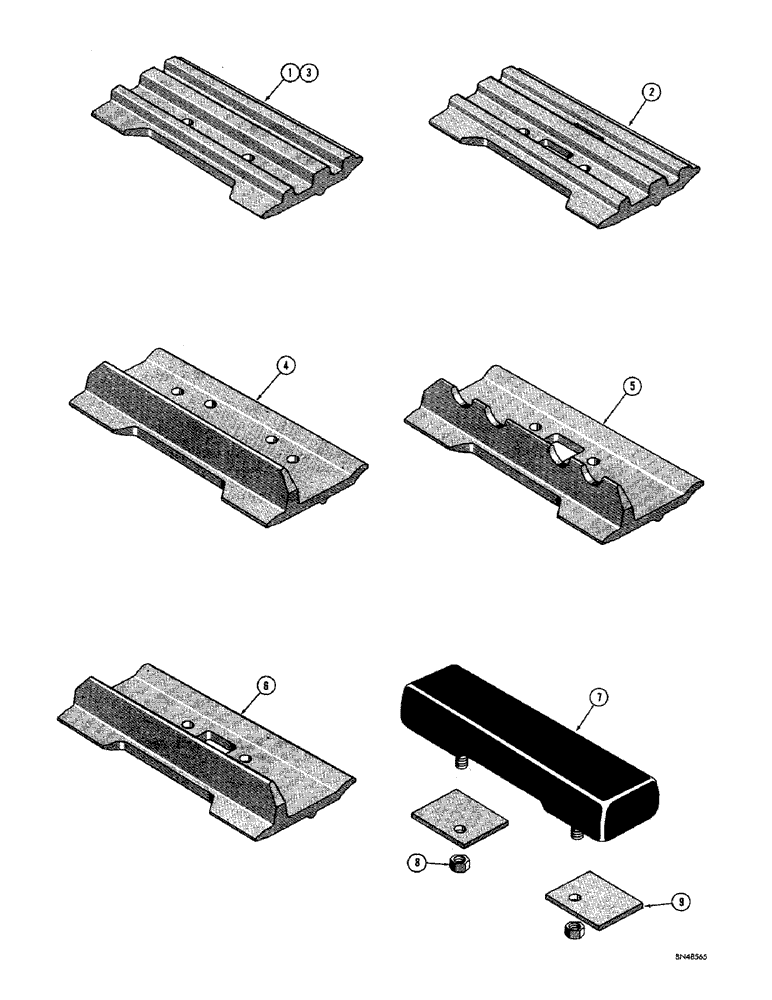

Запчасти Case 750 (150) - TRACK SHOES (EYEBROW CUT), USED ON DRAWBAR AND DOZER MODELS W/ TRAC. S/N 7071626 & AFT (04) - UNDERCARRIAGE

1

R20356

SHOE - track, 10 inch (All models)

76шт.

2

D30415

TRACK SHOE

SHOE - track, 12 inch (All models), semi grouser closed

76шт.

2

R17274

TRACK SHOE

SHOE - track, 13 inch (All models except loader), semi grouser closed

72шт.

2

R17270

SHOE - track, 15 inch (All models except loader), semi grouser closed

72шт.

2

D38043

SHOE - track, 16 inch (All models except loader), semi grouser closed

72шт.

3

D30414

SHOE - track, 12 inch (All models),semi grouser open center

76шт.

3

R17267

SHOE - track, 13 inch (All models except loader), semi grouser open center

72шт.

3

R17269

SHOE - track, 15 inch (All models except loader), semi grouser open center

72шт.

4

D33979

SHOE - track, 12 inch (All models except loader), grouser closed

72шт.

4

R17337

SHOE - track, 13 inch (All models except loader), grouser closed

72шт.

4

D38044

SHOE - track, 14 inch (All models except loader), grouser closed

72шт.

4

R17330

SHOE - track, 15 inch (All models except loader), grouser closed

72шт.

4

D34292

TRACK SHOE

SHOE - track, 16 inch (All models except loader), grouser closed

72шт.

4

R21605

SHOE - track, 17 inch (Drawbar models only), grouser closed

72шт.

4

D38555

SHOE - track, 18 inch (Drawbar models only), grouser closed

72шт.

4

R17338

SHOE - track, 20 inch (Drawbar models only), grouser closed

72шт.

5

D33978

SHOE - track, 12 inch (All models except loader), grouser ice

72шт.

5

D38045

COIL SPRING

SHOE - track, 13 inch (All models except loader), grouser ice

72шт.

5

D38046

SHOE - track, 14 inch (All models except loader), grouser ice

72шт.

5

R17327

TRACK SHOE

SHOE - track, 15 inch (All models except loader), grouser ice

72шт.

5

D34291

SHOE - track, 16 inch (All models except loader), grouser ice

72шт.

5

R21604

SHOE - track, 17 inch (Drawbar models only), grouser ice

72шт.

5

D38047

SHOE - track, 18 inch (Drawbar models only), grouser ice

72шт.

6

D38048

SHOE - track, 14 inch (All models except loader), rubber

72шт.

6

R17322

SHOE - track, 15 inch (All models except loader), rubber

72шт.

6

D34293

SHOE - track, 16 inch (All models except loader), rubber

72шт.

6

R21606

TRACK SHOE

SHOE - track, 17 inch (All models except loader), rubber

72шт.

R3551

KIT

RUBBER TRACK SHOES INSTALLATION - use with D38044 and R17330 track shoes only

1шт.

7

70635

SHOE

- track, rubber

72шт.

8

R21548

X

NUT - hex., lock (1/2" - 20 NF)

144шт.

9

R21166

SPACER

- shoe

144шт.
