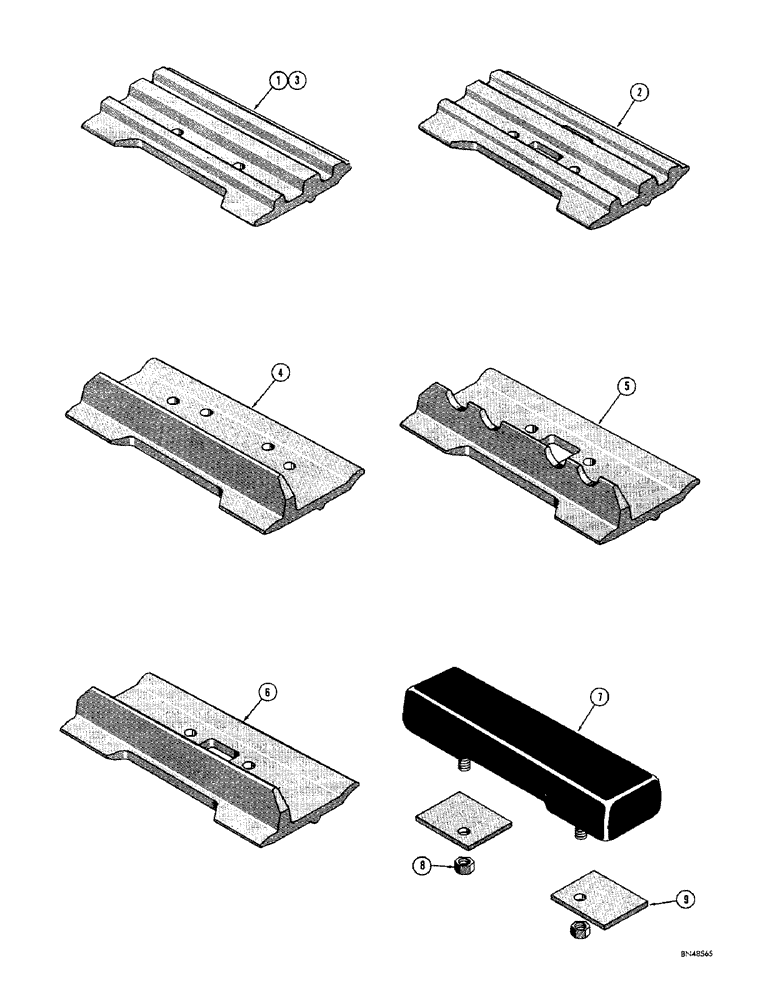

Запчасти Case 750 (148) - TRACK SHOES (EYEBROW CUT), USED ON DRAWBAR AND DOZER MODELS BEFORE TRAC. S/N 7071626 (04) - UNDERCARRIAGE

1

R20531

SHOE - track, 10 inch

72шт.

2

71076

SHOE - track, 13 inch, semi-grouser closed

72шт.

2

71080

SHOE - track, 16 inch, semi-grouser closed

72шт.

3

R21602

SHOE - track, 13 inch, grouser open center

72шт.

3

R21603

TRACK SHOE

SHOE - track, 14 inch, grouser open center

72шт.

3

72262

GASKET

SHOE - track, 16 inch, grouser open center

72шт.

3

NLS

NO LONGER SERVICED

SHOE - track, 18 inch (Drawbar models only), grouser open center

72шт.

4

NLS

NO LONGER SERVICED

SHOE - track, 14 inch, grouser closed

72шт.

4

R56736

SHOE

- track, 16 inch, grouser closed

72шт.

4

71081

SHOE - track, 18 inch, grouser closed

72шт.

5

72928

SHOE - track, 13 inch, grouser ice

72шт.

6

D33358

SHOE - track, 14 inch, rubber

72шт.

6

D33359

TRACK SHOE

SHOE - track, 16 inch, rubber

72шт.

7

70635

SHOE

- rubber, track

72шт.

8

R21548

X

NUT - hex., lock (1/2" - 20 NF), rubber track shoe

144шт.

9

R21166

SPACER

- shoe, rubber track

144шт.

R3551

KIT

RUBBER TRACK SHOE INSTALLATION - use with 71077 and 71079 track shoes only

1шт.
