Запчасти Case 750 (147A) - SEALED TRACK CHAIN - 5 ROLLER, SERVICE REPLACEMENT (04) - UNDERCARRIAGE

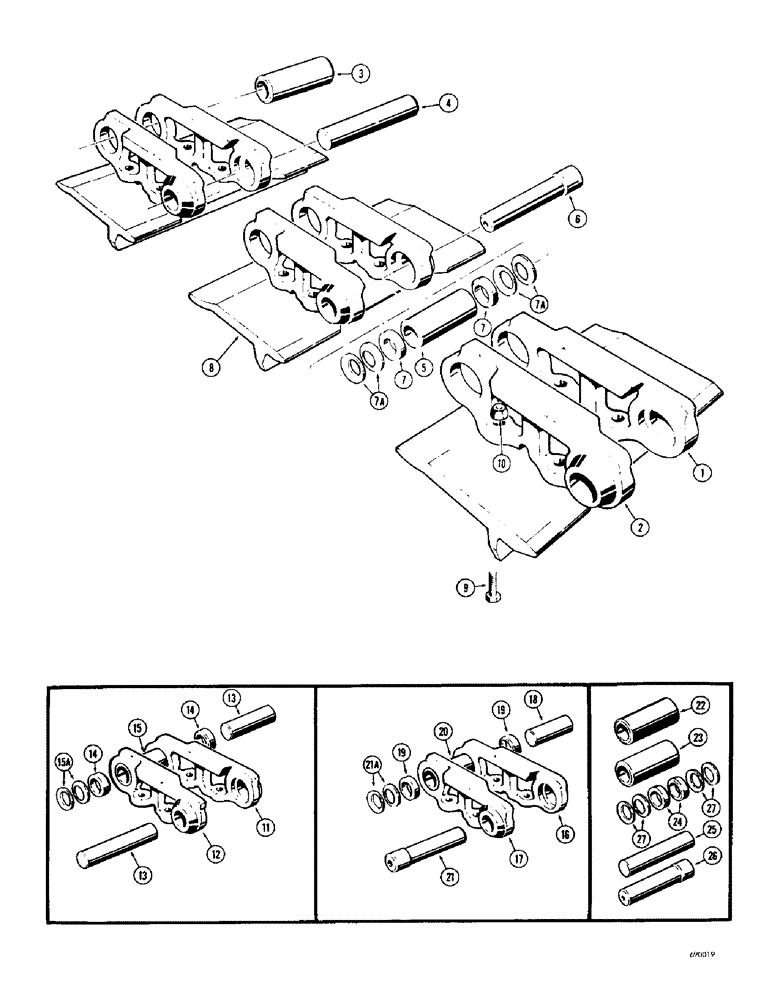

Схема запчастей Case 750 - (147A) - SEALED TRACK CHAIN - 5 ROLLER, SERVICE REPLACEMENT (04) - UNDERCARRIAGE
17
26
3
4
11
23
14
7
19
12
21
13
16
15
14
8
2
6
19
15a
13
7a
20
22
9
21a
27
27
1
10
24
7
25
18
5
7a

Артикул

Название

Примечание

Количество

D45078

CHAIN (AG)

ASSEMBLY - 19 unit

4шт.

1

D31710

LINK

Track, RH (Order D45348 for service)

19шт.

2

D31709

LINK

Track, LH (Order D45348 kit for service)

19шт.

3

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

Track, long

18шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

Track, standard

18шт.

D32164

PIN

Track, service option (.003" oversize)

18шт.

5

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

Master, short

1шт.

6

D36511

PIN

Track, master

1шт.

7

D45272

BUSHING

Spacer

2шт.

7a

D45076

BELLEVILLE SPRING

SEAL - washer

76шт.

8

REF

INSTRUCTION

PLATE - track (See pages 150, 154 and 158 for options)

76шт.

9

R15309

BOLT

Special

304шт.

10

R17415

LOCK NUT

Lock, special

304шт.

D45348

KIT

Track chain unit

72шт.

11

D31710

LINK

Track, RH (Order D45348 kit for service), chain unit

1шт.

12

D31709

LINK

Track, LH (Order D45348 kit for service), chain unit

1шт.

13

R14893

PIN,34.9mm OD x 176.22mm L

Track, standard, chain unit kit

2шт.

14

D45272

BUSHING

Spacer, track chain unit kit

2шт.

15

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

Master, short, track chain unit kit

1шт.

15a

D45076

BELLEVILLE SPRING

SEAL - washer, track chain unit kit

8шт.

D45350

LINK

KIT - master chain unit

4шт.

16

D31710

LINK

Track, RH (Order D45348 kit for service), master chain unit kit

1шт.

17

D31709

LINK

Track, LH (Order D45348 kit for service), master chain unit kit

1шт.

18

R14893

PIN,34.9mm OD x 176.22mm L

Track, standard, master chain unit kit

1шт.

19

D45272

BUSHING

Spacer, master chain unit kit

2шт.

20

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

Master, short, chain unit kit

1шт.

21

D36511

PIN

Master chain unit kit

1шт.

21a

D45076

BELLEVILLE SPRING

SEAL - washer, master chain unit kit

8шт.

D45349

KIT

Pin and bushing

1шт.

22

D45075

SLEEVE,35.23mm ID x 50.77mm OD x 115.16mm L

Track, long, pin kit

76шт.

23

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

Master, short, pin kit

4шт.

24

D45272

BUSHING

Spacer, pin kit

8шт.

25

D32164

PIN

Track, service option (.003" oversize), bushing kit

76шт.

26

D43541

PIN

Track, master (.003" oversize), bushing kit

4шт.

27

D45076

BELLEVILLE SPRING

SEAL - washer, pin & bushing kit

320шт.

Выбрано товаров: 35
