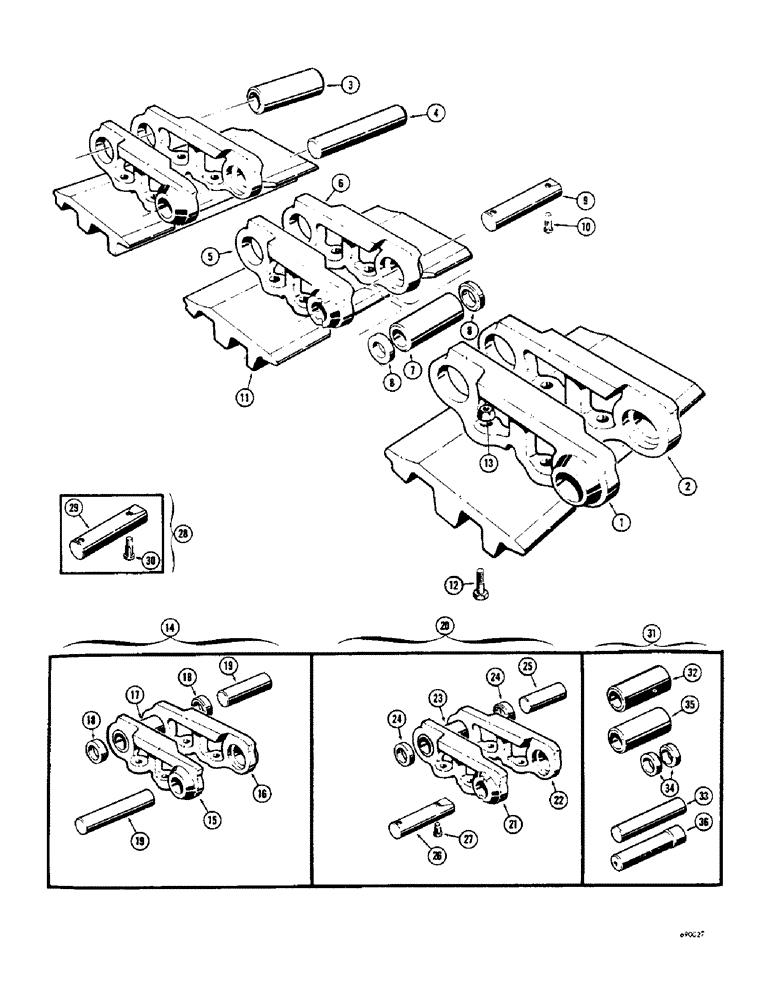

Запчасти Case 750 (144) - TRACK CHAIN - 6 ROLLER, USED BEFORE TRACTOR SERIAL NO. 7071626 (04) - UNDERCARRIAGE

D30427

SPARE PART ASSEMBLY - 19 unit

4шт.

When stock of D30427 chain assembly is exhausted, order D45078 and D46923 for service:

1шт.

1

R14900

LINK

Track chain, RH (Order R3050 for service)

18шт.

2

R14899

LINK

Track chain, LH (Order R3050 for service)

18шт.

3

R14892

BUSHING

Track, long

18шт.

4

R14893

PIN,34.9mm OD x 176.22mm L

Track, standard

18шт.

D32164

PIN

Track, service option (.003" oversize)

18шт.

5

D30425

LINK - master, RH (Order D12123 for service)

1шт.

6

D30424

LINK - master, LH (Order D12123 for service)

1шт.

7

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

Master, short

1шт.

8

R14898

SPACER

BUSHING

2шт.

9

D30426

PIN

Master (Order D31823 for service)

1шт.

10

D33777

AXLE PIN

Lock, master pin

2шт.

11

REF

INSTRUCTION

PLATE - track (See pages 150, 154 and 158 for options)

76шт.

12

R15309

BOLT

Special, 9/16"-18 NF

304шт.

13

R17415

LOCK NUT

Lock, special (9/16"-18 NF)

304шт.

14

R3050

REPAIR KIT

Track chain unit

72шт.

15

R14900

LINK

Track chain, RH (Order R3050 for service), unit kit

1шт.

16

R14899

LINK

Track chain, RH (Order R3050 for service), unit kit

1шт.

17

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

Master, short, track chain unit kit

1шт.

18

R14898

SPACER

Bushing - spacer, track chain unit kit

2шт.

19

R14893

PIN,34.9mm OD x 176.22mm L

Track link, chain unit kit

2шт.

20

D12123

KIT

Track chain master unit

4шт.

21

D30425

LINK - master, RH (Order D12123 for service), chain unit kit

1шт.

22

D30424

LINK - master, LH (Order D12123 for service), chain unit kit

1шт.

23

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

Master chain unit kit

1шт.

24

R14898

SPACER

Bushing - track spacer, master chain unit kit

2шт.

25

R14893

PIN,34.9mm OD x 176.22mm L

Track link, master chain unit kit

1шт.

26

D30426

PIN

Master (Order D31823 kit for service), chain unit kit

1шт.

27

D33777

AXLE PIN

Lock, master pin, chain unit kit

2шт.

28

D31823

PIN

KIT - master pin

4шт.

29

D30426

PIN

Master (Order D31823 kit for service), kit

1шт.

30

D33777

AXLE PIN

Lock, master pin

2шт.

31

D33153

X

KIT - pin and bushing

1шт.

32

R14892

BUSHING

Track, long, pin kit

72шт.

33

D32164

PIN

Track link (.003" oversize), bushing kit

72шт.

34

R14898

SPACER

Bushing - track spacer, pin kit

8шт.

35

R14896

BUSHING,35.18mm ID x 50.72mm OD x 105.05mm L

Master, short, PIN KIT

4шт.

36

D43541

PIN

Track master, bushing kit

4шт.

D45078

CHAIN (AG)

Sealed Track Chain (Parts list Fig. 147A), pin & bushing kit

2шт.

D46923

DRIVE SPROCKET

Sprocket, pin & bushing kit

1шт.
