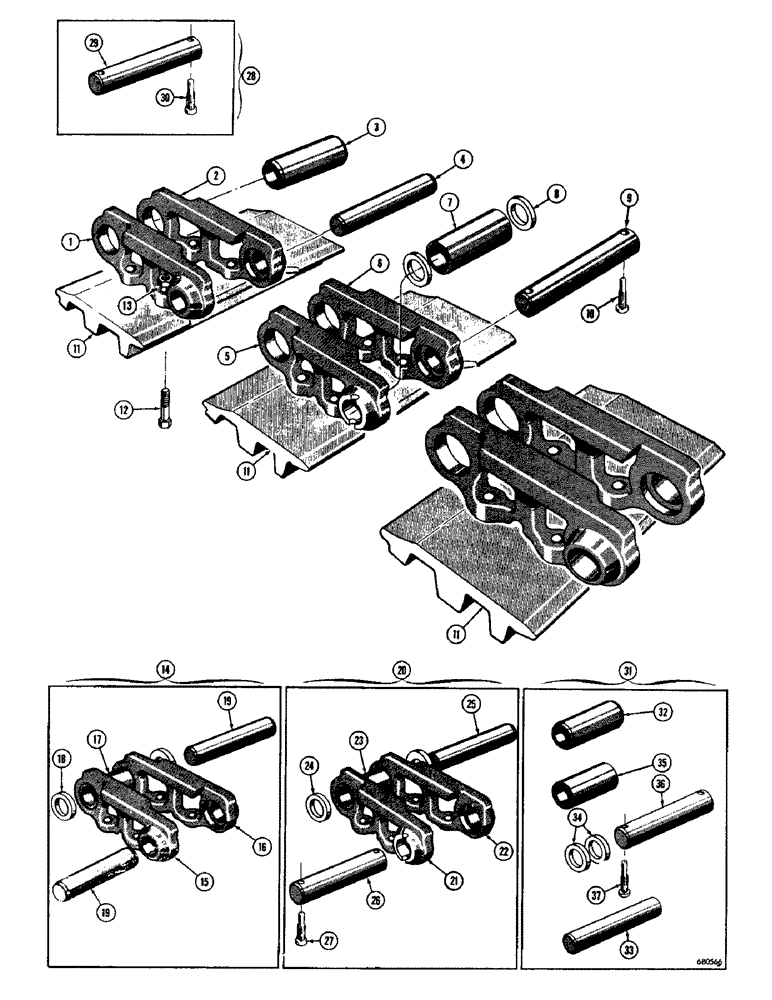

Запчасти Case 750 (140) - TRACK CHAIN - 5 ROLLER, USED BEFORE TRACTOR SERIAL NO. 7071626 (04) - UNDERCARRIAGE

D31348

SPARE PART 18 unit

4шт.

If sealed track chain is desired, order last 5 items in parts list for service:

1шт.

1

D37952

LINK

Track chain, RH (Order R2215 for service)

17шт.

2

D37951

LINK

Track chain, LH (Order R2215 for service)

17шт.

3

70079

BUSHING

Track, long

17шт.

4

70078

PIN

Track, 6-1/2" long (Early production) When stock is exhausted, use D37957 pin for service

17шт.

D37957

AXLE PIN

Track, 6-15/16" long (Late production)

17шт.

5

D37956

LINK

Master, RH (Order D33862 for service)

1шт.

6

D37955

LINK

Master, LH (Order D33862 for service)

1шт.

7

70848

BUSHING

Master, short

1шт.

8

70843

SPACER

BUSHING

2шт.

9

70029

PIN

Master (Order D33863 for service)

1шт.

10

D33777

AXLE PIN

Lock, master pin

2шт.

11

REF

INSTRUCTION

PLATE - track (See page 148, 152 and 156 for options)

72шт.

12

R14841

BOLT

Special, 1/2" - 20 NF

288шт.

13

25-278

NUT,1/2"-20, G5, High

288шт.

14

R2215

KIT

Track chain unit

68шт.

15

D37952

LINK

Track chain unit (Order R2215 for service)

1шт.

16

D37951

LINK

Track chain unit (Order R2215 for service)

1шт.

17

70848

BUSHING

Master, track chain unit kit

1шт.

18

70843

SPACER

BUSHING - track spacer, chain unit kit

2шт.

19

D37957

AXLE PIN

Track link, chain unit kit

2шт.

20

D33862

STRAP

KIT - track chain master unit

4шт.

21

D37956

LINK

Master, RH (Order D33862 for service), chain unit kit

1шт.

22

D37955

LINK

Master, LH (Order D33862 for service), chain unit kit

1шт.

23

70848

BUSHING

Master chain unit kit

1шт.

24

70843

SPACER

BUSHING - track spacer, master chain unit kit

2шт.

25

D37957

AXLE PIN

Track link, master chain unit kit

1шт.

26

70029

PIN

Master (Order D33863 for service), chain unit kit

1шт.

27

D33777

AXLE PIN

Lock, master pin, chain unit kit

2шт.

28

D33863

AXLE PIN

KIT - master pin

4шт.

29

70029

PIN

Master (Order D33863 for service), kit

1шт.

30

D33777

AXLE PIN

Lock, master pin, bushing

2шт.

31

D33864

KIT

Pin and bushing

1шт.

32

70079

BUSHING

Track link, pin kit

68шт.

33

D37957

AXLE PIN

Track link, bushing kit

68шт.

34

70843

SPACER

BUSHING - track spacer, pin kit

8шт.

35

70848

BUSHING

Master, pin kit

4шт.

36

70029

PIN

Master (Order D33863 for service), bushing kit

4шт.

D45077

CHAIN

SEALED TRACK (Parts list Fig. 143A), pin & bushing kit

2шт.

If sealed track chain is desired, order for service:

1шт.

D46923

DRIVE SPROCKET

Pin & bushing kit

1шт.

If sealed track chain is desired, order for service:

1шт.

TRACK PLATES - with 9/16" dia. mounting holes, pin & bushing kit

36шт.

If sealed track chain is desired, order for service:

1шт.

R15309

BOLT

9/16"-18 NF, pin & bushing kit

144шт.

If sealed track chain is desired, order for service:

1шт.

R17415

LOCK NUT

LOCK, pin & bushing kit

144шт.

If sealed track chain is desired, order for service:

1шт.
