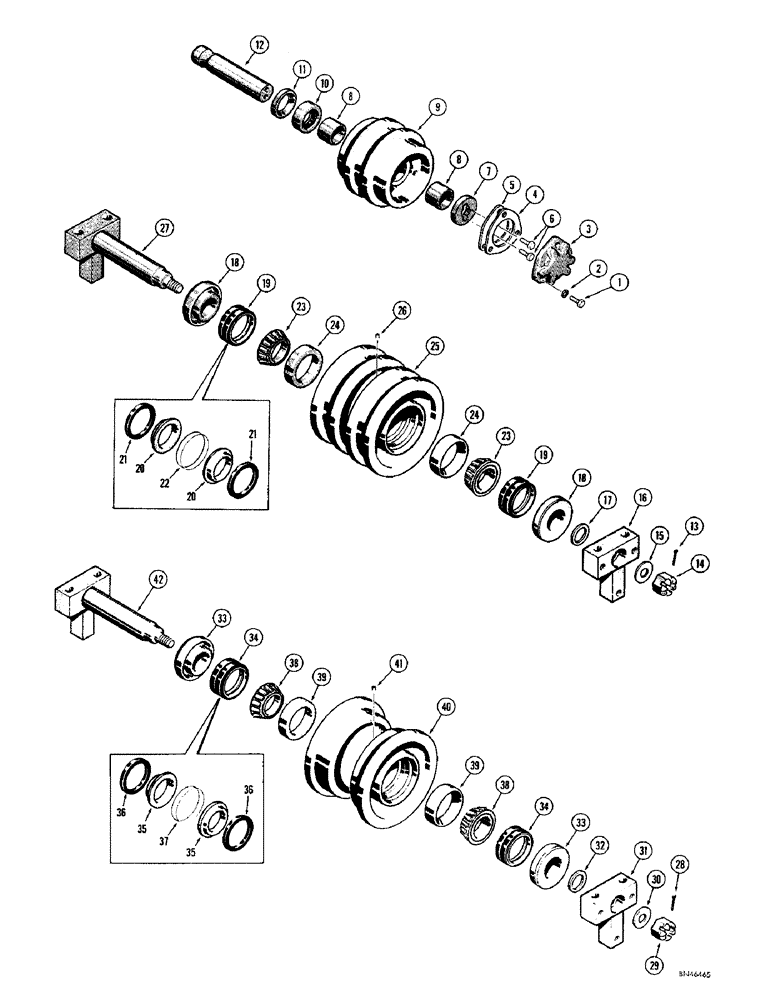

Запчасти Case 750 (134) - TRACK ROLLERS AND CARRIER ROLLER, TRACK CARRIER ROLLER (04) - UNDERCARRIAGE

D36354

ROLLER

- track carrier

2-4шт.

Used on tractor S/N 7071538 and after as production item and prior models as service replacements.

1шт.

1

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

3шт.

2

D35288

WASHER

- copper

1шт.

3

D30381

COVER

- roller

1шт.

4

D30384

SHIM,.010" Thk

(Brown) .010" Thk

1шт.

5

D30383

SHIM,.005" Thk

(Blue) .005" Thk

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

7

D30382

WASHER

- thrust

1шт.

8

D35242

BUSHING

- split

2шт.

9

D36979

HUB

- roller

1шт.

10

D36394

SEAL

- oil

1шт.

11

D36395

GUARD

SHIELD - seal

1шт.

12

D36396

SHAFT

- roller

1шт.

D37345

ROLLER - track, double flange

4шт.

Used on tractor S/N 7071538 and after as production item and prior models as service replacements.

1шт.

13

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), , track roller double flange 1/8" x 1 3/8"

1шт.

14

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex., slotted (3/4" - 16 NF), track roller double flange

1шт.

15

D31328

WASHER

- special, track roller double flange

1шт.

16

D37346

BLOCK

- roller, track double flange

1шт.

17

D31329

SHIM,.005" Thk

Track roller (Double flange) .005" Thk

1шт.

18

D36043

BUSHING

- thrust, track roller double flange

2шт.

19

D35267

SEAL

- face, track roller double flange

2шт.

20

NSS

NOT SOLD SEPARAT

BODY - seal, split, track roller double flange

1шт.

D36826

SEAL KIT

KIT - repair, track roller double flange

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - rubber, track roller double flange

2шт.

22

NSS

NOT SOLD SEPARAT

RETAINER - plastic, track roller double flange

2шт.

23

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, track roller double flange

2шт.

24

A55807

BEARING, CUP,83.7375 mm OD x 23.7105, 30.2635 mm

CUP - bearing, track roller double flange

2шт.

25

D36465

HUB

- track roller, double flange

1шт.

26

221-841

PLUG

- pipe, square socket head (1/4" NPT), track roller double flange

1шт.

27

D37348

SHAFT

BLOCK AND SHAFT - track roller double flange

1шт.

D37344

ROLLER

- track, single flange

10шт.

Used on tractor S/N 7071538 and after as production item and prior models as service replacements.

1шт.

28

132-51

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), , track roller single flange 1/8" x 1 3/8"

1шт.

29

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex., slotted (3/4" - 16 NF), track roller single flange

1шт.

30

D31328

WASHER

- special, track roller single flange

1шт.

31

D37346

BLOCK

- track roller single flange

1шт.

32

D31329

SHIM,.005" Thk

Track roller (Single flange) .005" Thk

1шт.

33

D36043

BUSHING

- thrust, track roller single flange

2шт.

34

D35267

SEAL

- face, track roller single flange

2шт.

35

NSS

NOT SOLD SEPARAT

BODY - seal, split, track roller single flange

1шт.

D36826

SEAL KIT

KIT - repair, track roller single flange

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - rubber, track roller single flange

2шт.

37

NSS

NOT SOLD SEPARAT

RETAINER - plastic, track roller single flange

2шт.

38

A30116

ROLLER BEARING,1.625" ID x 1.1875"

CONE - bearing, track roller single flange

2шт.

39

A55807

BEARING, CUP,83.7375 mm OD x 23.7105, 30.2635 mm

CUP - bearing, track roller single flange

2шт.

40

D36402

FLANGE

HUB - roller, single flange, track

1шт.

41

221-841

PLUG

- pipe, square socket head (1/4" NPT), track roller single flange

1шт.

42

D37348

SHAFT

BLOCK AND SHAFT - track roller single flange

1шт.
